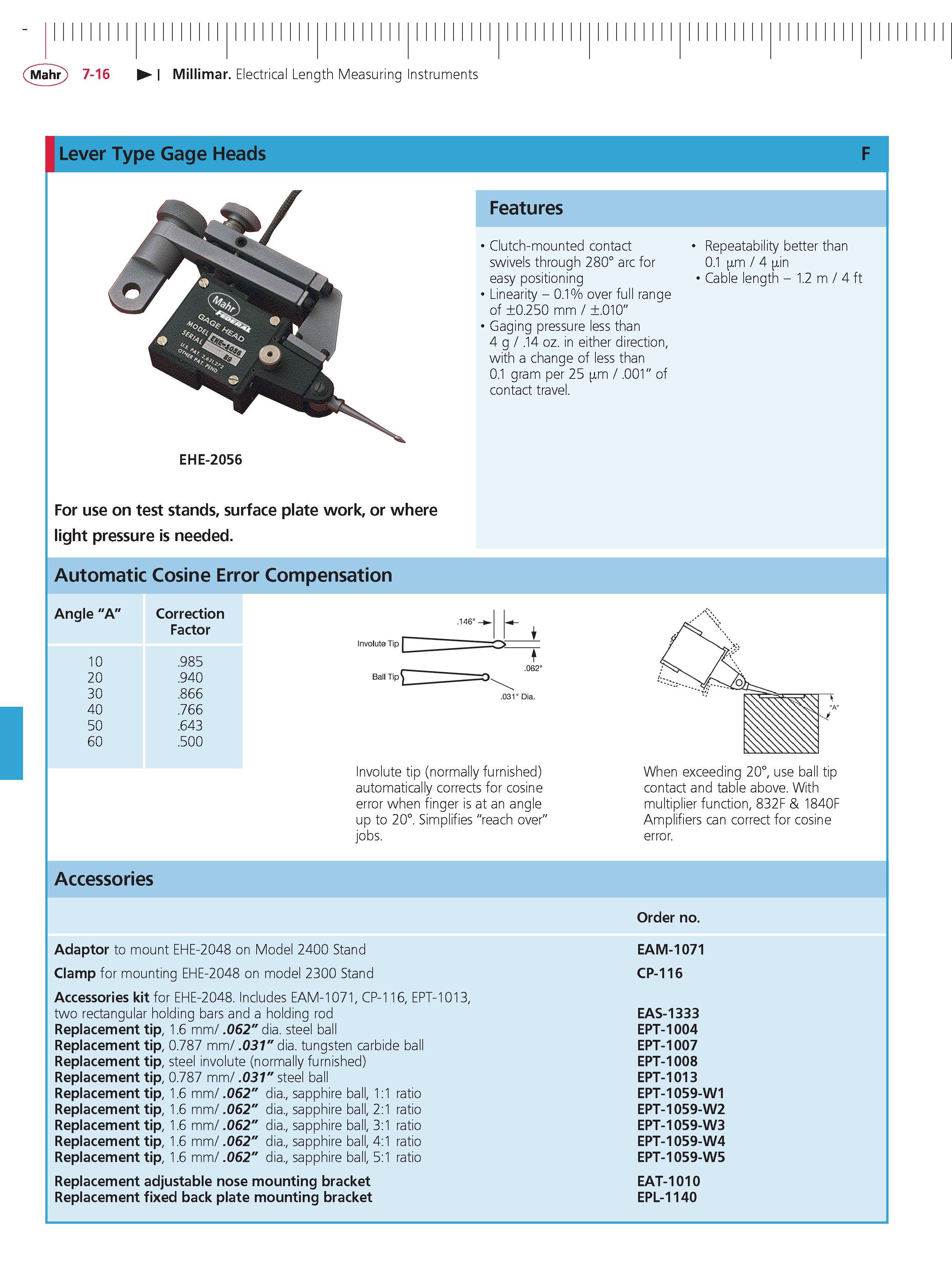

Mahr 7-16 Millimar Electrical Length Measuring Instruments Lever Type Gage Heads Features Clutch-mounted contact swivels through 280 arc for easy positioning Linearity - 0.1% over full range of 0.250 mm .010" Gaging pressure less than 4 g .14 oz. in either direction with a change of less than 0.1 gram per 25 m .001" of contact travel. Repeatability better than 0.1 m 4 in Cable length - 1.2 m 4 ft EHE-2056 For use on test stands surface plate work or where light pressure is needed. Automatic Cosine Error Compensation Angle A" Correction Factor 10 .985 20 .940 30 .866 40 .766 50 .643 60 .500 Involute tip (normally furnished) automatically corrects for cosine error when finger is at an angle up to 20. Simplifies "reach over" jobs. When exceeding 20 use ball tip contact and table above. With multiplier function 832F & 1840F Amplifiers can correct for cosine error. Accessories Adaptor to mount EHE-2048 on Model 2400 Stand Clamp for mounting EHE-2048 on model 2300 Stand Accessories kit for EHE-2048. Includes EAM-1071 CP-116 EPT-1013 two rectangular holding bars and a holding rod Replacement tip 1.6 mm .062" dia. steel ball Replacement tip 0.787 mm .031" dia. tungsten carbide ball replacement tip steel involute (normally furnished) replacement tip 0.787 mm .031" steel ball replacement tip 1.6 mm .062' replacement tip 1.6 mm .062' replacement tip 1.6 mm .062' replacement tip 1.6 mm .062' replacement tip 1.6 mm .062' dia. sapphire bal dia. sapphire bal dia. sapphire bal dia. sapphire bal dia. sapphire bal 1:1 ratio 2:1 ratio 3:1 ratio 4:1 ratio 5:1 ratio replacement adjustable nose mounting bracket replacement fixed back plate mounting bracket order no. EAM-1071 CP-116 EAS-1333 EPT-1004 EPT-1007 EPT-1008 EPT-1013 EPT-1059-w1 EPT-1059-w2 EPT-1059-W3 EPT-1059-W4 EPT-1059-W5 EAT-1010 EPL-1140 F
