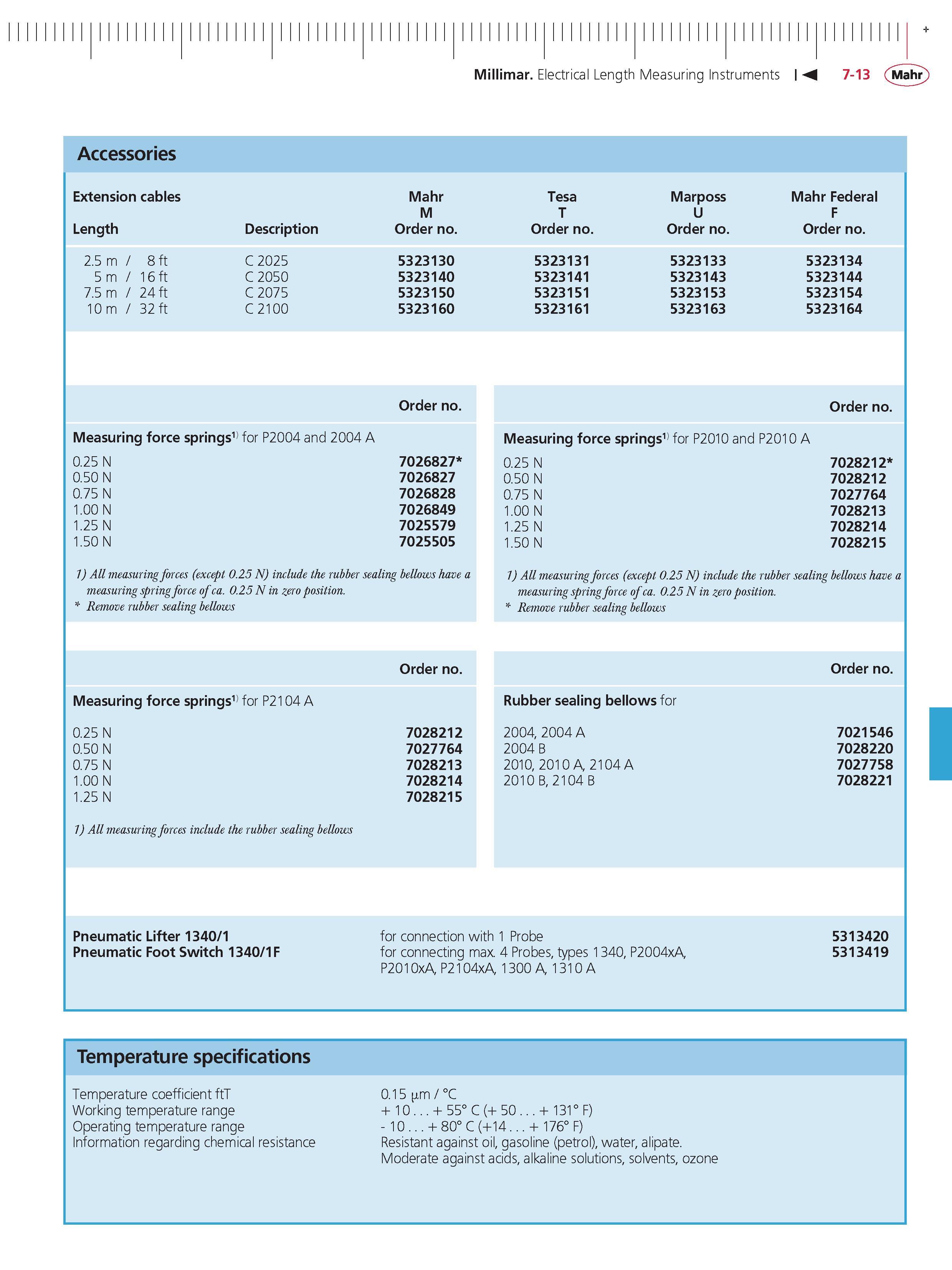

Millimar Electrical Length Measuring Instruments M 7-13 Mahr Accessories Extension cables Mahr Tesa Marposs Mahr Federal M u T F Length Description order no. order no. order no. order no. 2.5 m 8 ft C 2025 5323130 5323131 5323133 5323134 5 m 16 ft C 2050 5323140 5323141 5323143 5323144 7.5 m 24 ft C 2075 5323150 5323151 5323153 5323154 10 m 32 ft C 2100 5323160 5323161 5323163 5323164 order no. order no. Measuring force springs1 for P2004 and 2004 A Measuring force springs1 for P2010 and P2010 A 0.25 N 7026827 0.25 N 7028212 0.50 N 7026827 0.50 N 7028212 0.75 N 7026828 0.75 N 7027764 1.00 N 7026849 1.00 N 7028213 1.25 N 7025579 1.25 N 7028214 1.50 N 7025505 1.50 N 7028215 1) All measuring forces (except 0.25 N) include the rubber sealing bellows have a 1) All measuring forces (except 0.25 N) include the rubber sealing bellows have a measuring spring force ofca. 0.25 N in zero position. measuring spring force ofca. 0.25 N in zero position. Remove rubber sealing bellows Remove rubber sealing bellows order no. order no. Measuring force springs1 for P2104 A Rubber sealing bellows for 0.25 N 7028212 2004 2004 A 7021546 0.50 N 7027764 2004 B 7028220 0.75 N 7028213 2010 2010 A 2104 A 7027758 1.00 N 7028214 2010 B 2104 B 7028221 1.25 N 7028215 1) All measuring forces include the rubber sealing bellows Pneumatic lifter 1340 1 for connection with 1 Probe 5313420 Pneumatic Foot Switch 1340 1F for connecting max 4 Probes types 1340 P2004xA 5313419 P2010xA P2104xA 1300 A 1310 A temperature specifications Temperature coefficient ftT 0.15 m C Working temperature range + 10 . + 55 C (+ 50 . + 131 F) Operating temperature range - 10 . + 80 C (+14 . + 176 F) Information regarding chemical resistance Resistant against oil gasoline (petrol) water alipate. Moderate against acids alkaline solutions solvents ozone
