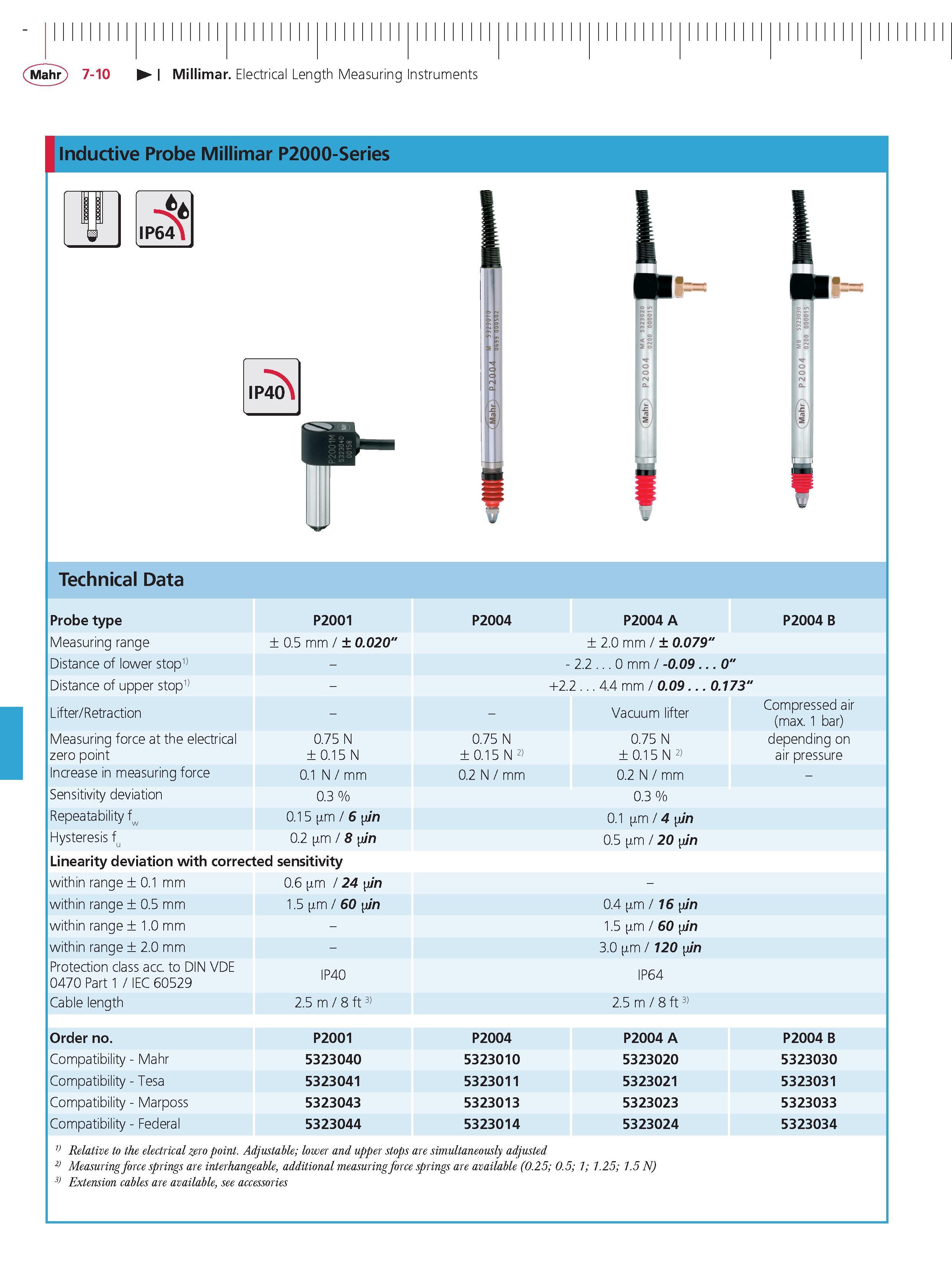

Mahr 7-10 Millimar Electrical Length Measuring Instruments inductive Probe Millimar P2000-Series IP64 technical Data Probe type P2001 P2004 P2004A P2004B Measuring range 0.5 mm 0.020" 2.0 mm 0.079" Distance of lower stop1) 2.2 . 0 mm -0.09... 0" Distance of upper stop1) - +2.2 . 4.4 mm 0.09... 0.173" Lifter Retraction Vacuum lifter Compressed air (max. 1 bar) Measuring force at the electrical zero point 0.75 N 0.15 N 0.75 N 0.15 N 2) 0.75 N 0.15 N 2) depending on air pressure Increase in measuring force 0.1 N mm 0.2 N mm 0.2 N mm - Sensitivity deviation 0.3 % 0.3 % Repeatability fw 0.15 m 6 pin 0.1 m 4 pin Hysteresis fu 0.2 m 8 pin 0.5 m 20 pin Linearity deviation with corrected sensitivity within range 0.1 mm 0.6 m 24 pin - within range 0.5 mm 1.5 m 60 pin 0.4 m 16 pin within range 1.0 mm - 1.5 m 60 pin within range 2.0 mm - 3.0 m 120 pin Protection class acc. to DIN VDE 0470 Part 1 IEC 60529 IP40 IP64 Cable length 2.5 m 8 ft 3) 2.5 m 8 ft 3) order no. P2001 P2004 P2004 A P2004 B Compatibility - Mahr 5323040 5323010 5323020 5323030 Compatibility - Tesa 5323041 5323011 5323021 5323031 Compatibility - Marposs 5323043 5323013 5323023 5323033 Compatibility - Federal 5323044 5323014 5323024 5323034 1) Relative to the electrical zero point. Adjustable; lower and upper stops are simultaneously adjusted 2) Measuring force springs are interhangeable additional measuring force springs are available (0.25; 0.5; 1; 1.25; 1.5 N) 3) Extension cables are available see accessories
