227 Каталог MAHR 2014 Измерительные инструменты и приборы для линейно-угловых измерений Стр.7-7

Каталог MAHR 2014 Измерительные инструменты и приборы Стр. 7-7 0227 ENG Lab2u

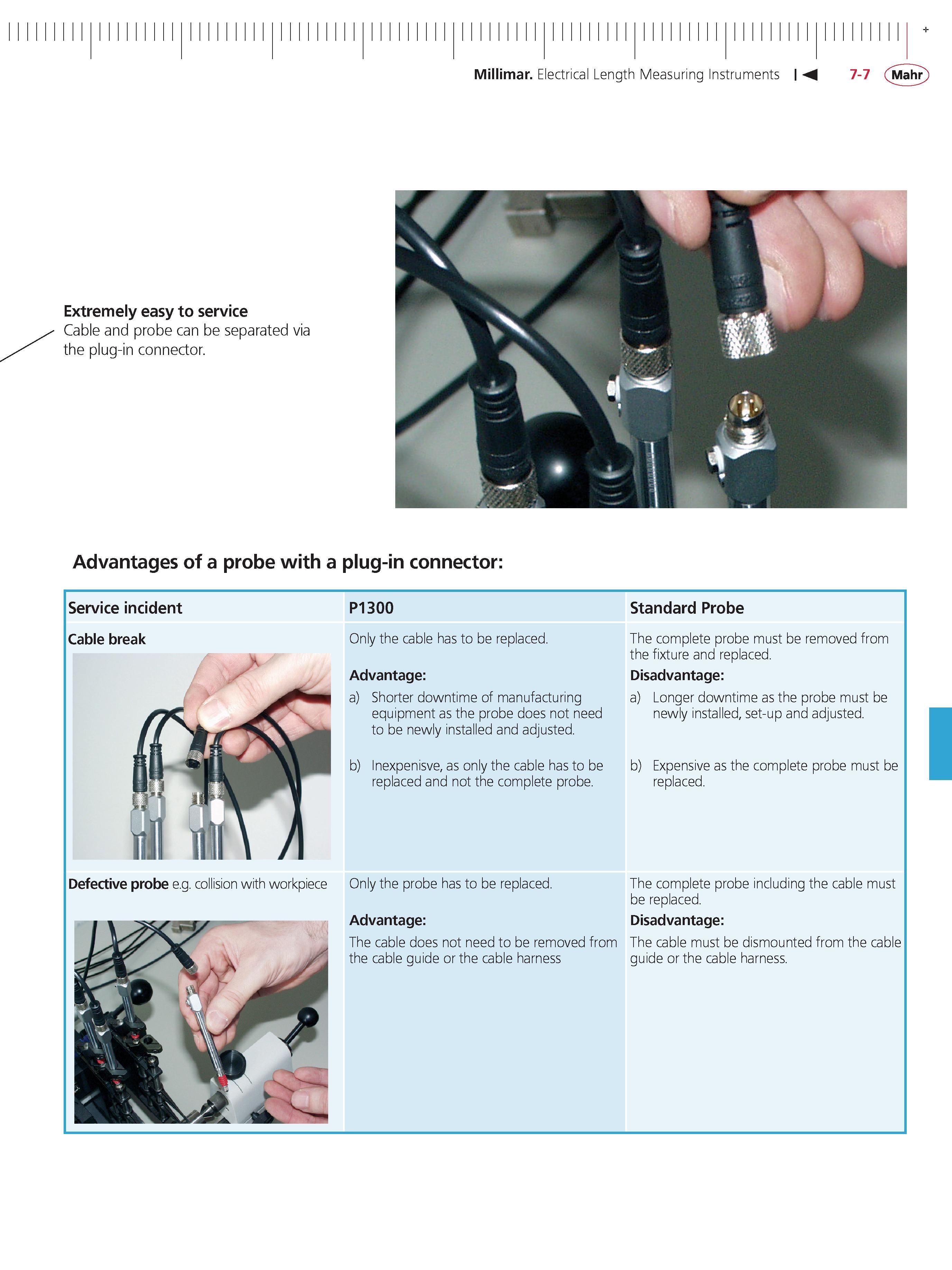

Advantages of a probe with a plug-in connector Service incident Cable break Defective probe e.g. collision with workpiece P1300 Only the cable has to be replaced. Advantage a) Shorter downtime of manufacturing equipment as the probe does not need to be newly installed and adjusted. b) Inexpenisve as only the cable has to be replaced and not the complete probe. Only the probe has to be replaced. Advantage The cable does not need to be removed from the cable guide or the cable harness Standard Probe The complete probe must be removed from the fixture and replaced. Disadvantage a) Longer downtime as the probe must be newly installed set-up and adjusted. b) Expensive as the complete probe must be replaced. The complete probe including the cable must be replaced. Disadvantage The cable must be dismounted from the cable guide or the cable harness.
