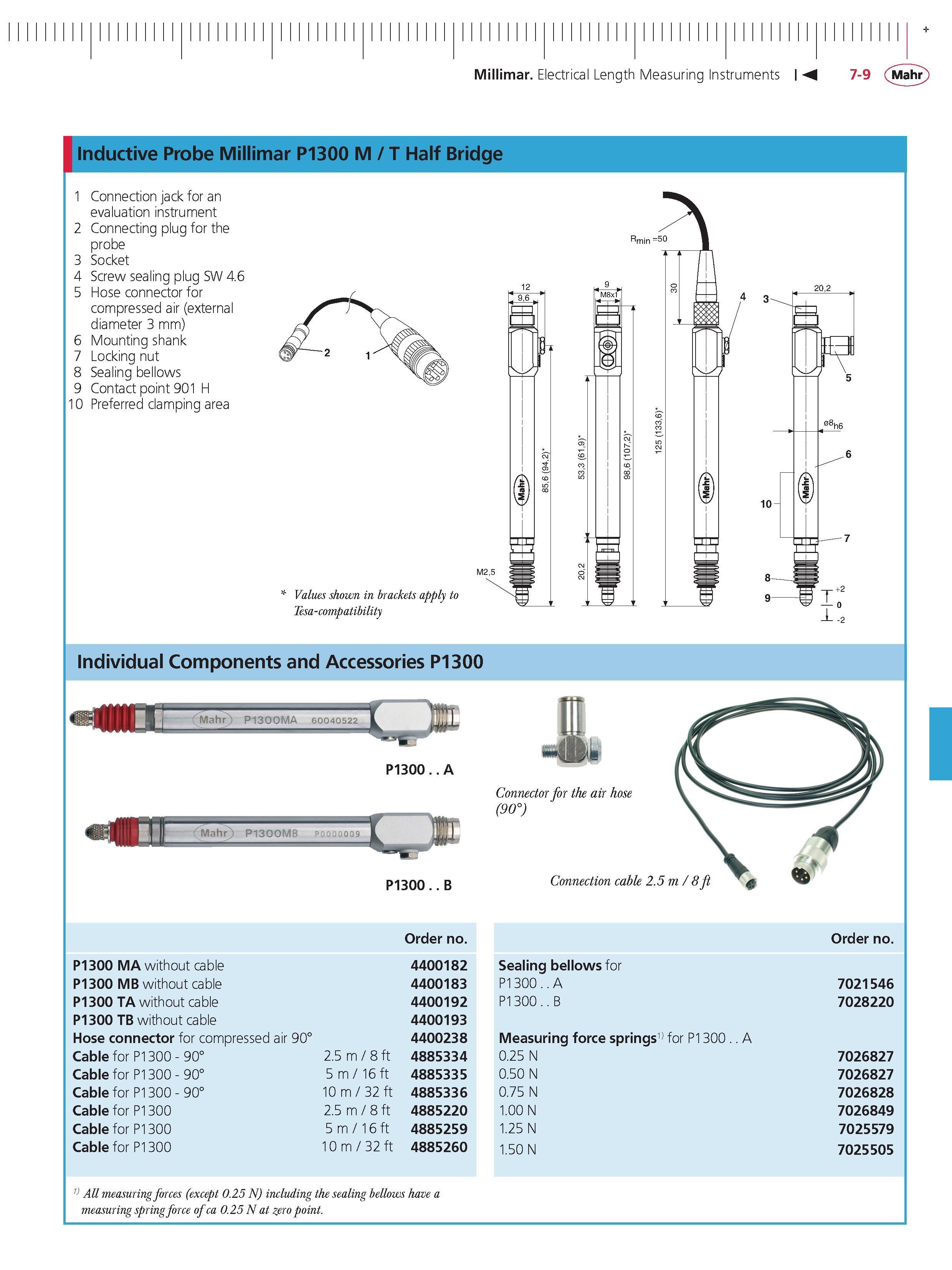

Millimar Electrical Length Measuring Instruments M 7-9 Mahr inductive Probe Millimar P1300 M T Half Bridge 1 Connection jack for an evaluation instrument 2 Connecting plug for the probe 3 Socket 4 Screw sealing plug SW 4.6 5 Hose connector for compressed air (external diameter 3 mm) 6 Mounting shank 7 Locking nut 8 Sealing bellows 9 Contact point 901 H 10 Preferred clamping area Values shown in brackets apply to Tesa-compatibility individual Components and Accessories P1300 P1300 A 'Mahr P1300MB P0000009 Connector for the air hose (90) P1300 B Connection cable 2.5 m 8ft order no. P1300 MA without cable 4400182 P1300 Mb without cable 4400183 P1300 TA without cable 4400192 P1300 TB without cable 4400193 hose connector for compressed air 90 4400238 Cable for P1300 - 90 2.5 m 8 ft 4885334 Cable for P1300 - 90 5 m 16 ft 4885335 Cable for P1300 - 90 10 m 32 ft 4885336 Cable for P1300 2.5 m 8 ft 4885220 Cable for P1300 5 m 16 ft 4885259 Cable for P1300 10 m 32 ft 4885260 order no. Sealing bellows for P1300 A 7021546 P1300 B 7028220 Measuring force springs 1 for P1300 A 0.25 N 7026827 0.50 N 7026827 0.75 N 7026828 1.00 N 7026849 1.25 N 7025579 1.50 N 7025505 1) All measuring forces (except 0.25 N) including the sealing bellows have a measuring spring force ofca 0.25 N at zero point. +
