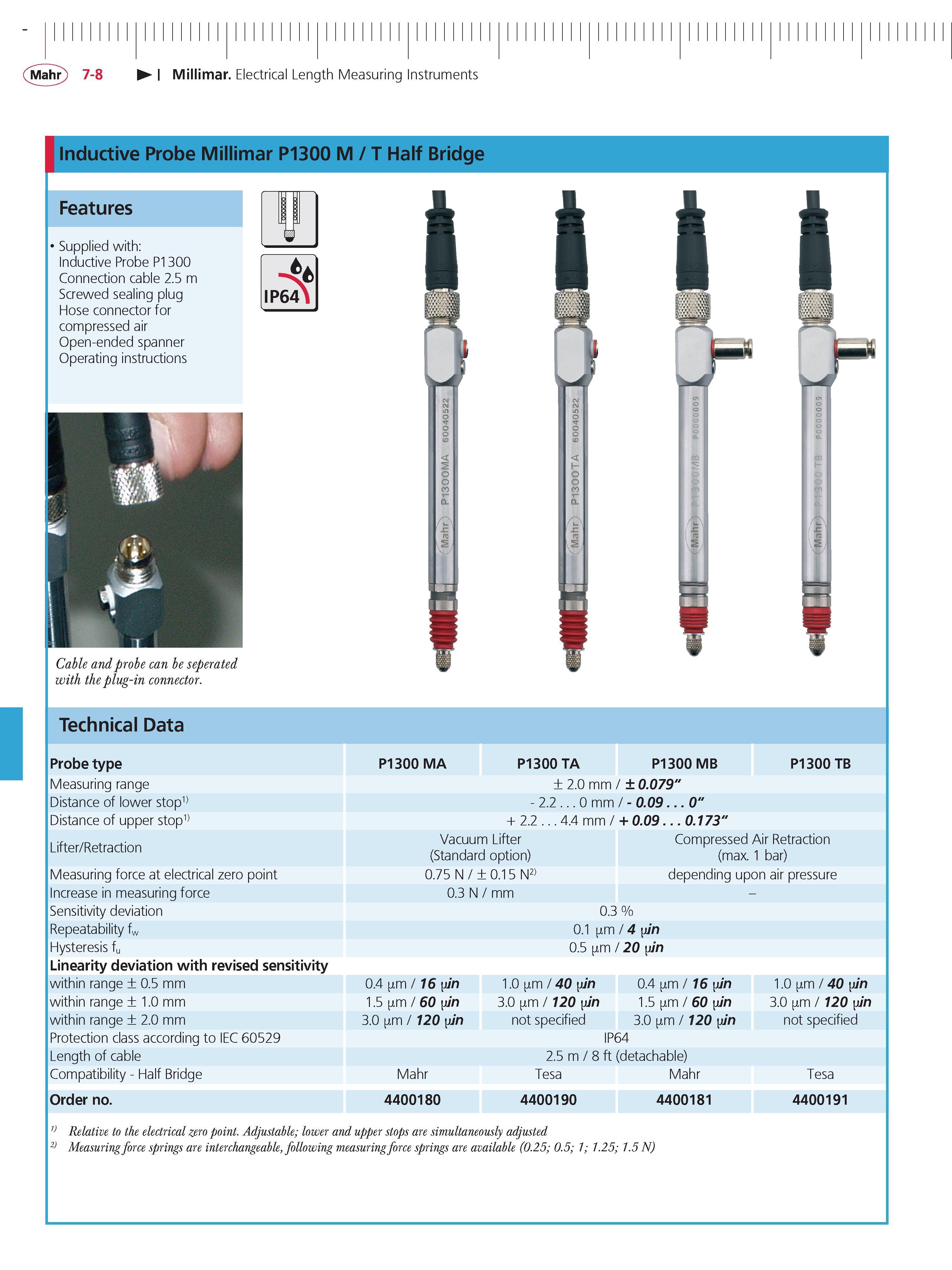

Mahr 7-8 Millimar Electrical Length Measuring Instruments Inductive Probe Millimar P1300 M T Half Bridge Features Supplied with Inductive Probe P1300 Connection cable 2.5 m Screwed sealing plug Hose connector for compressed air Open-ended spanner Operating instructions Cable and probe can be seperated with the plug-in connector. technical Data Probe type P1300 MA P1300 TA P1300 Mb P1300 TB Measuring range 2.0 mm 0.079" Distance of lower stop1) - 2.2 . 0 mm - 0.09... 0" Distance of upper stop1) + 2.2 . 4.4 mm + 0.09... 0.173" Lifter Retraction Vacuum Lifter Compressed Air Retraction (Standard option) (max. 1 bar) Measuring force at electrical zero point 0.75 N 0.15 N2) depending upon air pressure Increase in measuring force 0.3 N mm Sensitivity deviation 0.3 % Repeatability fw 0.1 m 4 yin Hysteresis fu 0.5 m 20 yin Linearity deviation with revised sensitivity within range 0.5 mm 0.4 m 16 yin 1.0 m 40 yin 0.4 m 16 yin 1.0 m 40 yin within range 1.0 mm 1.5 m 60 yin 3.0 m 120 yin 1.5 m 60 yin 3.0 m 120 yin within range 2.0 mm 3.0 m 120 yin not specified 3.0 m 120 yin not specified Protection class according to IEC 60529 IP64 Length of cable 2.5 m 8 ft (detachable) Compatibility - Half Bridge Mahr Tesa Mahr Tesa order no. 4400180 4400190 4400181 4400191 1 Relative to the electrical zero point. Adjustable; lower and upper stops are simultaneously adjusted 22 Measuring force springs are interchangeable following measuring force springs are available (025; 0.5; 1; 1.25; 1.5 N)
