226 Каталог MAHR 2014 Измерительные инструменты и приборы для линейно-угловых измерений Стр.7-6

Каталог MAHR 2014 Измерительные инструменты и приборы Стр. 7-6 0226 ENG Lab2u

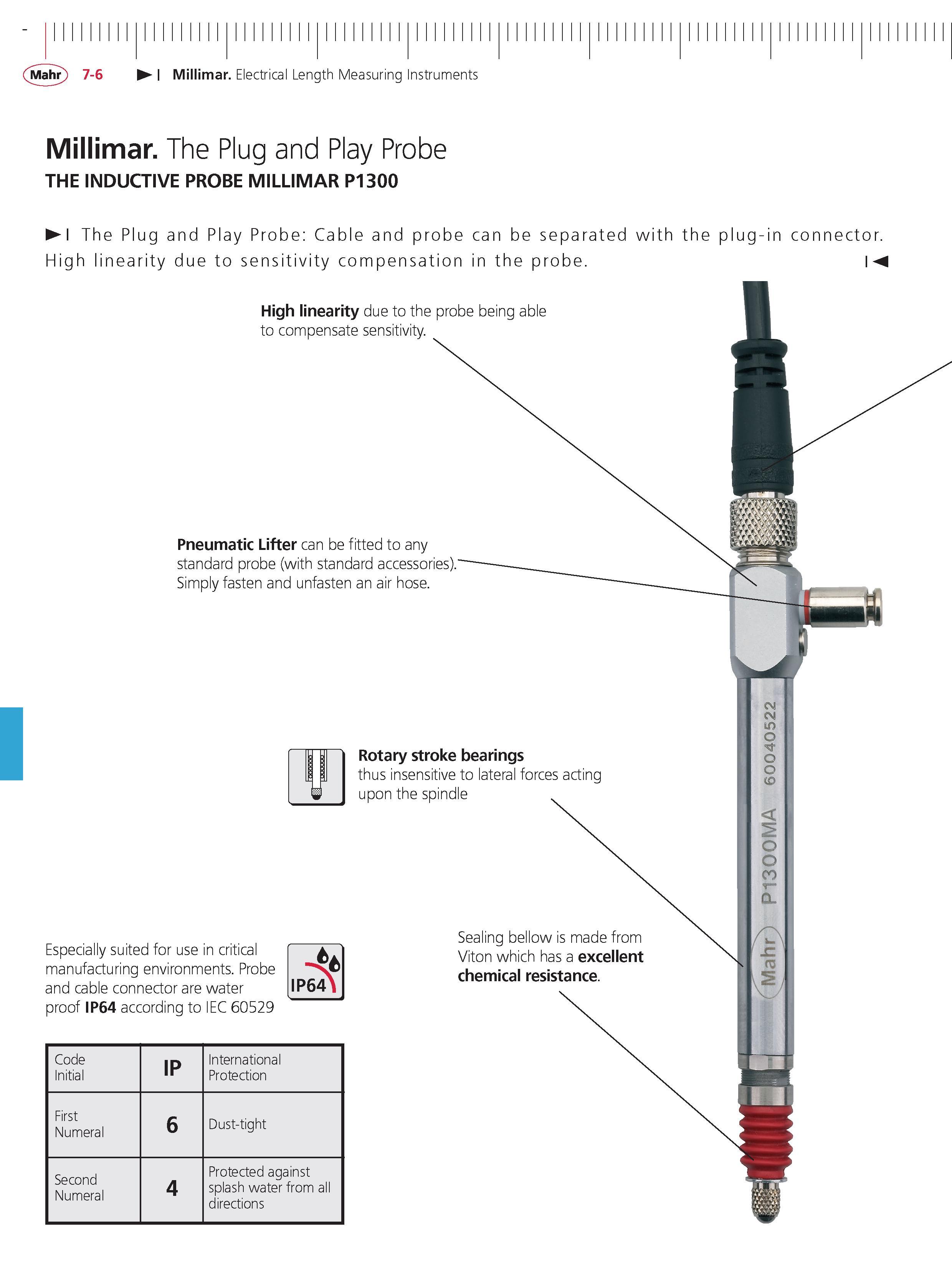

Mahr 7-6 Millimar Electrical Length Measuring Instruments Millimar The Plug and Play Probe THE INDUCTIVE PROBE MILLIMAR P1300 The Plug and Play Probe Cable and probe can be separated with the plug-in connector. High linearity due to sensitivity compensation in the probe. M high linearity due to the probe being able to compensate sensitivity. Pneumatic lifter can be fitted to any standard probe (with standard accessories). Simply fasten and unfasten an air hose. T Especially suited for use in critical manufacturing environments. Probe and cable connector are water proof iP64 according to IEC 60529 IP64 Code Initial ip International Protection First Numeral 6 Dust-tight Second Numeral 4 Protected against splash water from all directions rotary stroke bearings thus insensitive to lateral forces acting upon the spindle Sealing bellow is made from Viton which has a excellent chemical resistance.
