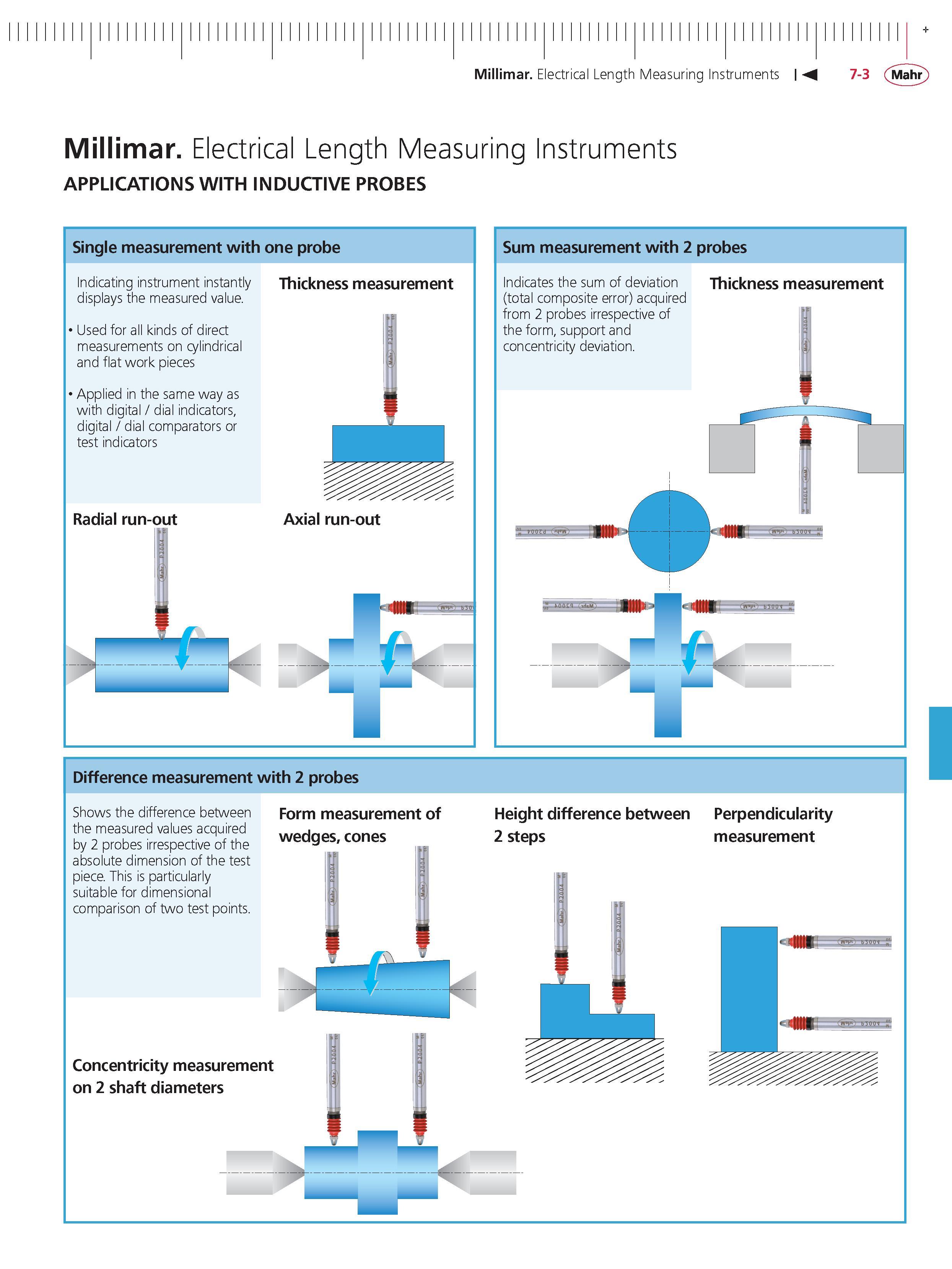

Millimar Electrical Length Measuring Instruments 7-3 Mahr Millimar Electrical Length Measuring Instruments APPLICATIONS WITH INDUCTIVE PROBES Single measurement with one probe Indicating instrument instantly thickness measurement displays the measured value. Used for all kinds of direct measurements on cylindrical and flat work pieces Applied in the same way as with digital dial indicators digital dial comparators or test indicators Sum measurement with 2 probes Indicates the sum of deviation thickness measurement (total composite error) acquired from 2 probes irrespective of the form support and concentricity deviation. radial run-out Axial run-out difference measurement with 2 probes Shows the difference between the measured values acquired by 2 probes irrespective of the absolute dimension of the test piece. This is particularly suitable for dimensional comparison of two test points. Form measurement of wedges cones height difference between Perpendicularity 2 steps measurement wmt r - Concentricity measurement on 2 shaft diameters
