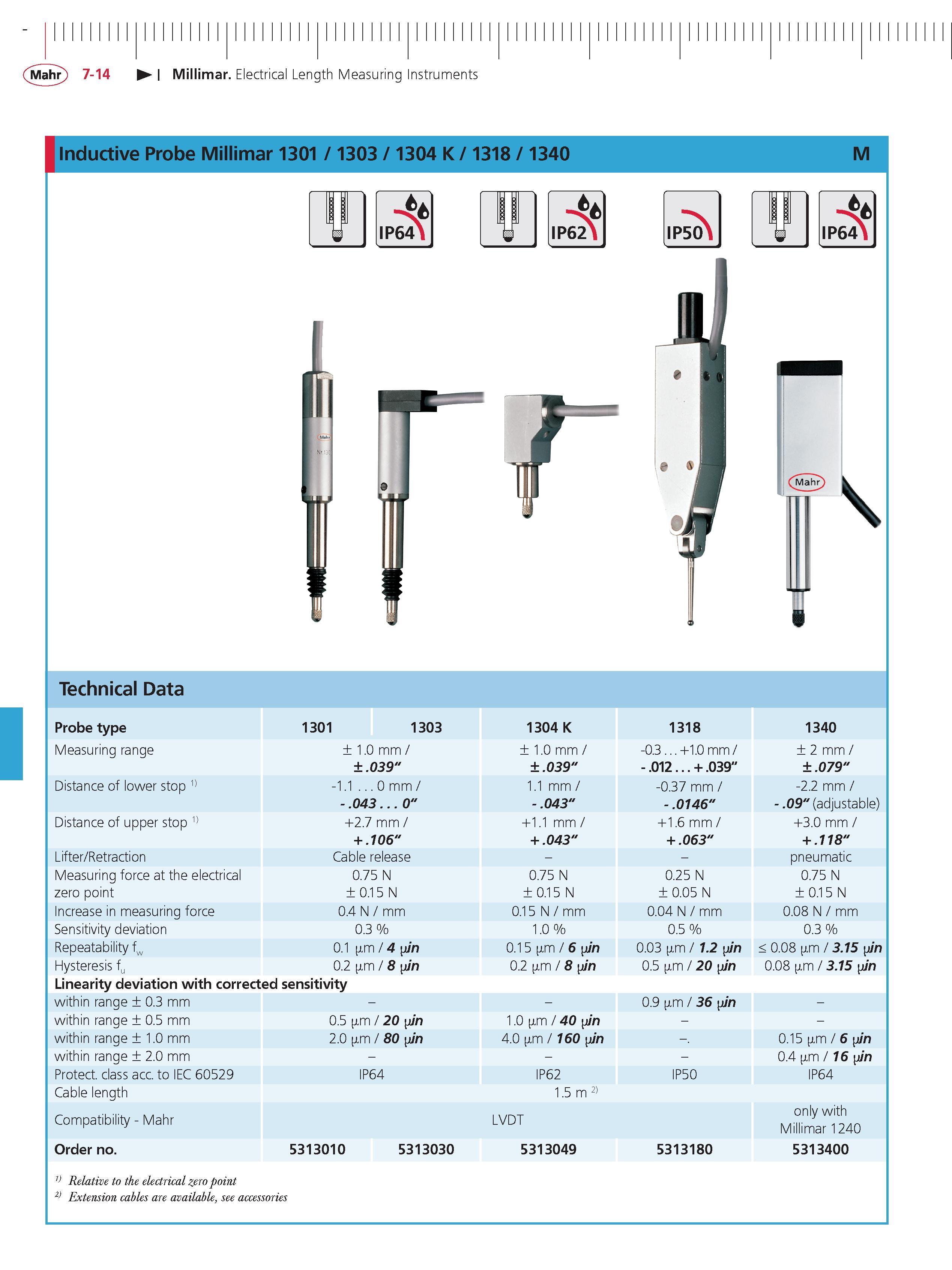

Mahr 7-14 Millimar Electrical Length Measuring Instruments Inductive Probe Millimar 1301 1303 1304 K 1318 1340 M IP64 technical Data Probe type 1301 1303 1304 K 1318 1340 Measuring range 1.0 mm 1.0 mm -0.3 . +1.0 mm 2 mm .039" .039" - .012 . + .039" .079" Distance of lower stop 1) -1.1 . 0 mm 1.1 mm -0.37 mm -2.2 mm - .043... 0" - .043" - .0146" - .09" (adjustable) Distance of upper stop 1) +2.7 mm +1.1 mm +1.6 mm +3.0 mm + .106" + .043" + .063" + .118" Lifter Retraction Cable release pneumatic Measuring force at the electrical 0.75 N 0.75 N 0.25 N 0.75 N zero point 0.15 N 0.15 N 0.05 N 0.15 N Increase in measuring force 0.4 N mm 0.15 N mm 0.04 N mm 0.08 N mm Sensitivity deviation 0.3 % 1.0 % 0.5 % 0.3 % Repeatability fw 0.1 m 4 yin 0.15 m 6 yin 0.03 m 1.2 yin 0.08 m 3.15 yin Hysteresis fu 0.2 m 8 yin 0.2 m 8 yin 0.5 m 20 yin 0.08 m 3.15 yin Linearity deviation with corrected sensitivity within range 0.3 mm 0.9 m 36 yin - within range 0.5 mm 0.5 m 20 yin 1.0 m 40 yin within range 1.0 mm 2.0 m 80 yin 4.0 m 160 yin -. 0.15 m 6 yin within range 2.0 mm - 0.4 m 16 yin Protect. class acc. to IEC 60529 IP64 IP62 IP50 IP64 Cable length 1.5 m 2) Compatibility - Mahr LVDT only with Millimar 1240 order no. 5313010 5313030 5313049 5313180 5313400 1) Relative to the electrical zero point 2) Extension cables are available see accessories
