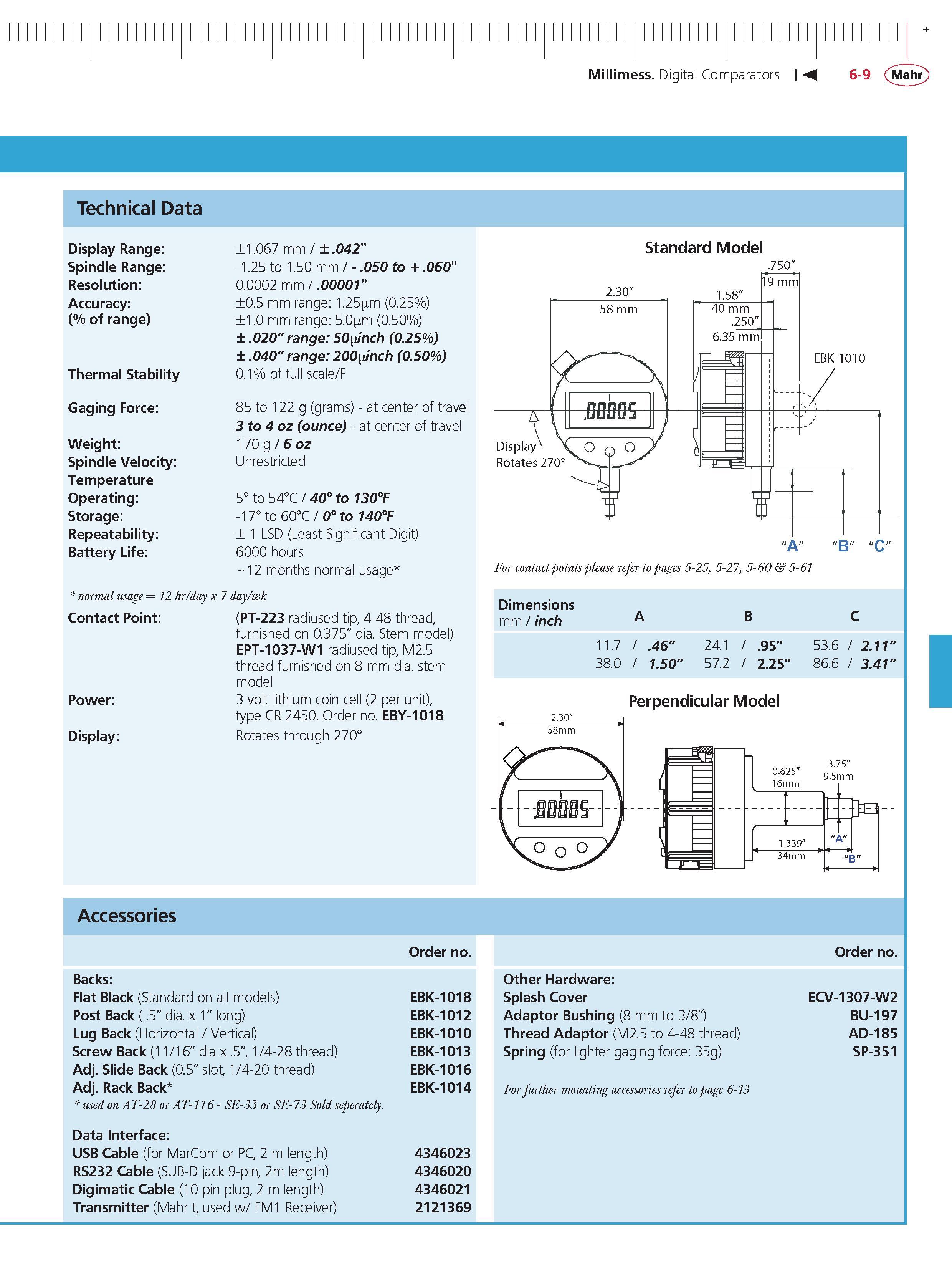

Millimess Digital Comparators M 6-9 Mahr Technical Data Display Range +1.067 mm .042" Spindle range -1.25 to 1.50 mm - .050 to + .060" resolution 0.0002 mm .00001" Accuracy +0.5 mm range 1.25 m (0.25%) (% of range) +1.0 mm range 5.0 m (0.50%) .020"range 50yinch (0.25%) .040"range 200yjnch (0.50%) Thermal Stability 0.1% of full scale F Gaging Force 85 to 122 g (grams) - at center of travel 3 to 4 oz (ounce) - at center of travel weight 170 g 6 oz Spindle velocity Temperature Unrestricted operating 5 to 54C 40 to 130F Storage -17 to 60C 0 to 140F repeatability + 1 LSD (Least Significant Digit) Battery Life 6000 hours 12 months normal usage normal usage 12 hr day x 7 day wk Contact Point (PT-223 radiused tip 4-48 thread furnished on 0.375" dia. Stem model) EPT-1037-w1 radiused tip M2.5 thread furnished on 8 mm dia. stem model Power 3 volt lithium coin cell (2 per unit) type CR 2450. Order no. EBY-1018 Display Rotates through 270 Accessories Standard Model .750 For contact points please refer to pages 5-25 5-27 5-60 & 5-61 Dimensions mm inch A B C 11.7 .46" 24.1 5" .9 53.6 2.11" 38.0 1.50" 57.2 2.25" 86.6 3.41" Perpendicular Model Backs order no. other Hardware order no. Flat Black (Standard on all models) EBK-1018 Splash Cover ECv-1307-w2 Post Back ( .5" dia. x 1" long) EBK-1012 Adaptor Bushing (8 mm to 3 8") BU-197 Lug Back (Horizontal Vertical) EBK-1010 Thread Adaptor (M2.5 to 4-48 thread) AD-185 Screw Back (11 16" dia x .5" 1 4-28 thread) Adj. Slide Back (0.5" slot 1 4-20 thread) Adj. rack Back used on AT-28 or AT-116 - SE-33 or SE-73 Soldseperately. Data interface USB Cable (for MarCom or PC 2 m length) RS232 Cable (SUB-D jack 9-pin 2m length) Digimatic Cable (10 pin plug 2 m length) Transmitter Mahr t used w FM1 Receiver) EBK-1013 EBK-1016 EBK-1014 4346023 4346020 4346021 2121369 Spring (for lighter gaging force 35g) Forfurther mounting accessories refer topage 6-13 SP-351
