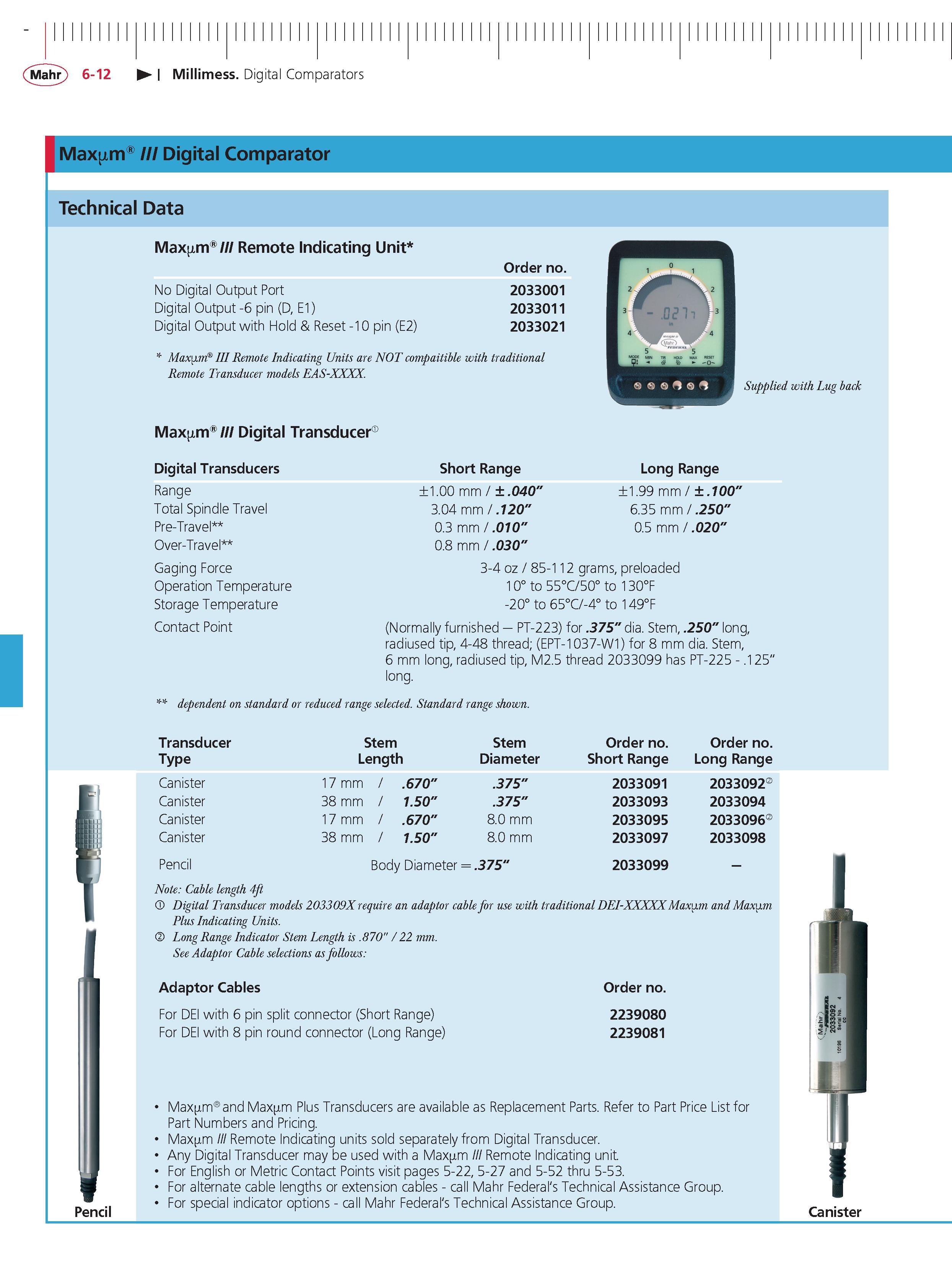

Mahr 6-12 Millimess Digital Comparators Max m III Digital Comparator Technical Data Max m III Remote indicating Unit No Digital Output Port Digital Output -6 pin (D E1) Digital Output with Hold & Reset -10 pin (E2) Order no. 2033001 2033011 2033021 Max m III Remote Indicating Units are NOT compaitible with traditional Remote Transducer models EAS-XXXX. Supplied with Lug back Max m III Digital Transducer1 Digital Transducers Range Total Spindle Travel Pre-Travel Over-Travel Gaging Force Operation Temperature Storage Temperature Contact Point Short Range 1.00 mm .040 3.04 mm .120" 0.3 mm .010" 0.8 mm .030" Long Range 1.99 mm .100 6.35 mm .250" 0.5 mm .020" 3-4 oz 85-112 grams preloaded 10 to 55C 50 to 130F -20 to 65C -4 to 149F (Normally furnished PT-223) for .375" dia. Stem .250" long radiused tip 4-48 thread; (EPT-1037-W1) for 8 mm dia. Stem 6 mm long radiused tip M2.5 thread 2033099 has PT-225 - .125" long. dependent on standard or reduced range selected. Standard range shown. Transducer Stem Stem order no. order no. Type Length Diameter Short Range Long Range Canister 17 mm .670" .375" 2033091 2033092 Canister 38 mm 1.50" .375" 2033093 2033094 Canister 17 mm .670" 8.0 mm 2033095 2033096 Canister 38 mm 1.50" 8.0 mm 2033097 2033098 Pencil Body Diameter .375" 2033099 - Note Cable length 4ft Digital Transducer models 203309X require an adaptor cable for use with traditional DEI-XXXXX Maxym and Maxym Plus Indicating Units. Long Range Indicator Stem Length is .810" 22 mm. See Adaptor Cable selections as follows Adaptor Cables For DEI with 6 pin split connector (Short Range) For DEI with 8 pin round connector (Long Range) order no. 2239080 2239081 Pencil Max m and Max m Plus Transducers are available as Replacement Parts. Refer to Part Price List for Part Numbers and Pricing. Max m III Remote Indicating units sold separately from Digital Transducer. Any Digital Transducer may be used with a Max m III Remote Indicating unit. For English or Metric Contact Points visit pages 5-22 5-27 and 5-52 thru 5-53. For alternate cable lengths or extension cables - call Mahr Federal's Technical Assistance Group. For special indicator options - call Mahr Federal's Technical Assistance Group. Canister
