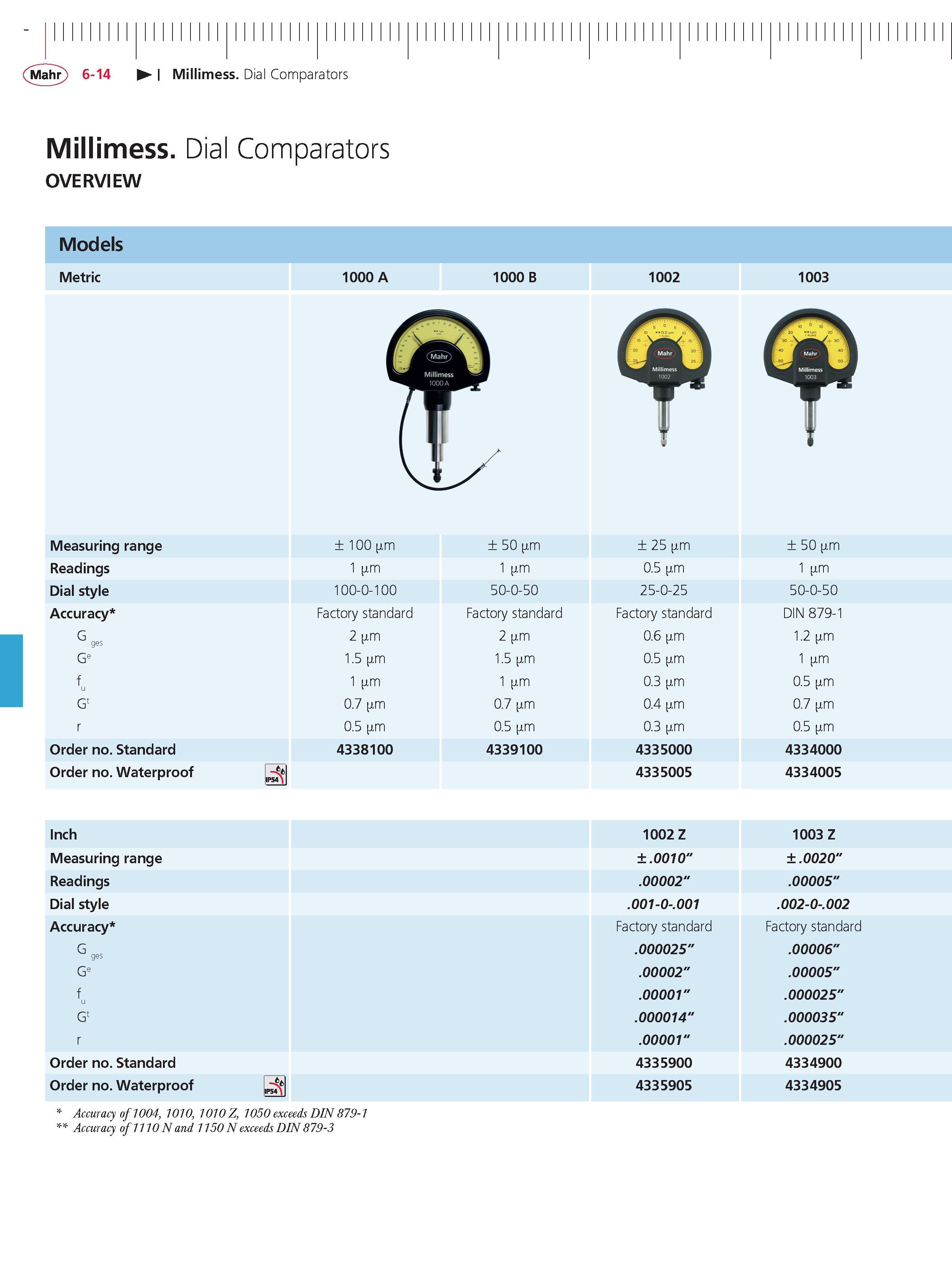

Mahr 6-14 Millimess Dial Comparators Millimess Dial Comparators OVERVIEW Models Metric 1000 A 1000 B 1002 1003 Measuring range 100 m 50 m 25 m 50 m readings 1 m 1 m 0.5 m 1 m Dial style 100-0-100 50-0-50 25-0-25 50-0-50 Accuracy Factory standard Factory standard Factory standard DIN 879-1 G ges 2 m 2 m 0.6 m 1.2 m Ge 1.5 m 1.5 m 0.5 m 1 m f u 1 m 1 m 0.3 m 0.5 m Gt 0.7 m 0.7 m 0.4 m 0.7 m r 0.5 m 0.5 m 0.3 m 0.5 m order no. Standard 4338100 4339100 4335000 4334000 order no. waterproof IP54 1 4335005 4334005 inch 1002 Z 1003 Z Measuring range .0010" .0020" readings .00002" .00005" Dial style .001-0-.001 .002-0-.002 Accuracy Factory standard Factory standard G ges ges .000025" .00006" Ge .00002" .00005" f u .00001" .000025" Gt .000014" .000035" r .00001" .000025" order no. Standard 4335900 4334900 order no. waterproof P54 4335905 4334905 Accuracy of 1004 1010 1010 Z 1050 exceeds DIN 879-1 Accuracy of 1110 N and 1150 N exceeds DIN 879-3
