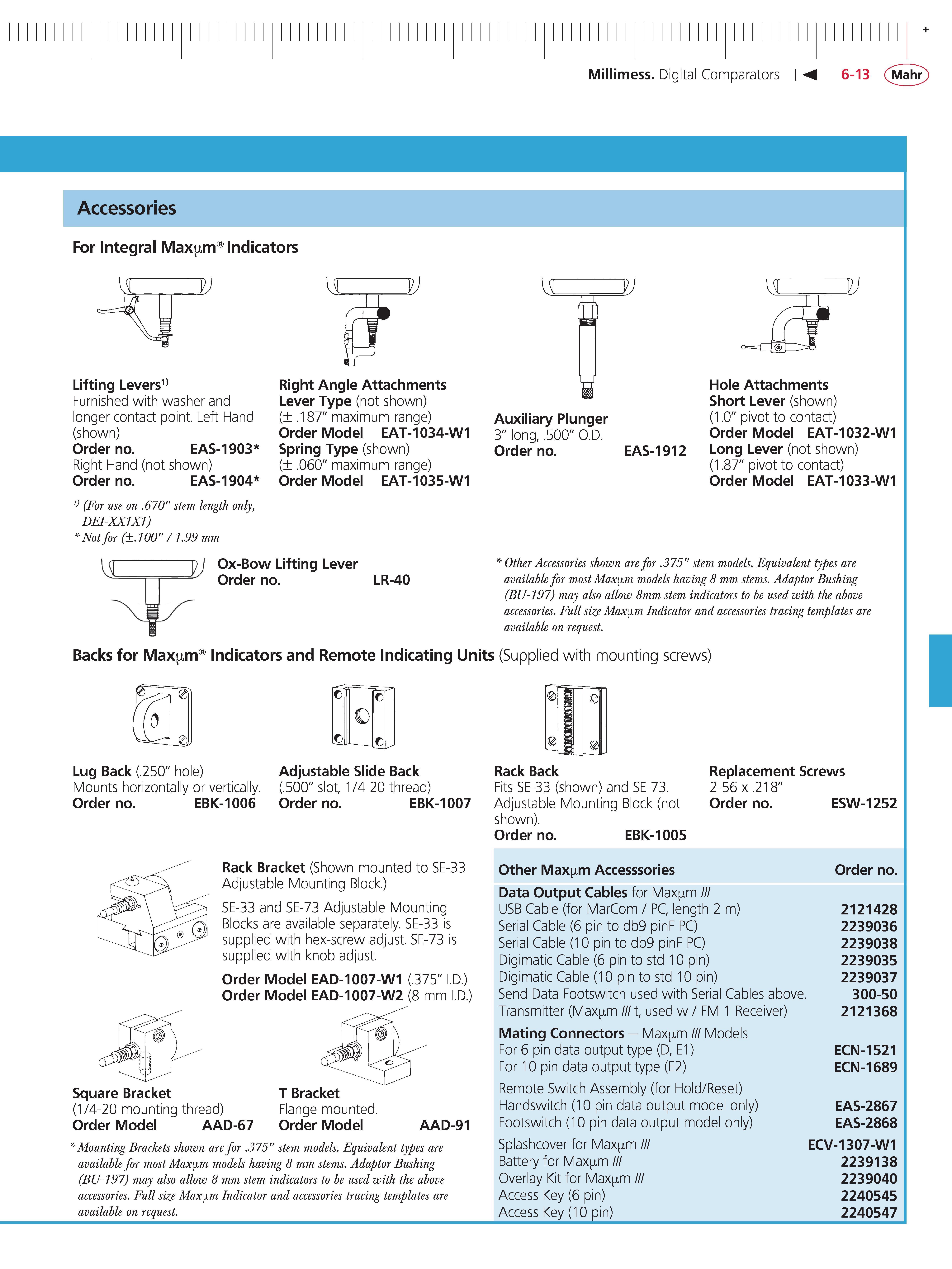

Millimess Digital Comparators M 6-13 Mahr Accessories For Integral Max m Indicators Lifting Levers1) Furnished with washer and longer contact point. Left Hand (shown) order no. EAS-1903 Right Hand (not shown) order no. EAS-1904 1) (For use on .670" stem length only DEI-XX1X1) Not for (+.100 " 1.99 mm Right Angle Attachments Lever Type (not shown) ( .187" maximum range) order Model EAT-1034-w1 Spring Type (shown) ( .060" maximum range) order Model EAT-1035-W1 Auxiliary Plunger 3" long .500" O.D. order no. EAS-1912 Hole Attachments Short Lever (shown) (1.0" pivot to contact) order Model EAT-1032-W1 Long Lever (not shown) (1.87" pivot to contact) order Model EAT-1033-W1 1) ox-Bow Lifting Lever order no. LR-40 Other Accessories shown are for .375" stem models. Equivalent types are available for most Max m models having 8 mm stems. Adaptor Bushing (BU-197) may also allow 8mm stem indicators to be used with the above accessories. Full size Max m Indicator and accessories tracing templates are available on request. Backs for Max m Indicators and Remote Indicating Units (Supplied with mounting screws) Lug Back (.250" hole) Mounts horizontally or vertically. order no. EBK-1006 Adjustable Slide Back (.500" slot 1 4-20 thread) order no. EBK-1007 Rack Back Fits SE-33 (shown) and SE-73. Adjustable Mounting Block (not shown). order no. EBK-1005 Replacement Screws 2-56 x .218" order no. ESW-1252 Rack Bracket (Shown mounted to SE-33 Adjustable Mounting Block.) SE-33 and SE-73 Adjustable Mounting Blocks are available separately. SE-33 is supplied with hex-screw adjust. SE-73 is supplied with knob adjust. order Model EAD-1007-W1 (.375" ID.) order Model EAD-1007-W2 (8 mm ID.) Square Bracket (1 4-20 mounting thread) order Model AAD-67 T Bracket Flange mounted. order Model AAD-91 Mounting Brackets shown are for .375" stem models. Equivalent types are available for most Maxym models having 8 mm stems. Adaptor Bushing (BU-197) may also allow 8 mm stem indicators to be used with the above accessories. Full size Max m Indicator and accessories tracing templates are available on request. other Max m Accesssories order no. Data output Cables for Max m III USB Cable (for MarCom PC length 2 m) 2121428 Serial Cable (6 pin to db9 pinF PC) 2239036 Serial Cable (10 pin to db9 pinF PC) 2239038 Digimatic Cable (6 pin to std 10 pin) 2239035 Digimatic Cable (10 pin to std 10 pin) 2239037 Send Data Footswitch used with Serial Cables above. 300-50 Transmitter (Max m III t used w FM 1 Receiver) 2121368 Mating Connectors Max m III Models For 6 pin data output type (D E1) ECN-1521 For 10 pin data output type (E2) ECN-1689 Remote Switch Assembly (for Hold Reset) Handswitch (10 pin data output model only) EAS-2867 Footswitch (10 pin data output model only) EAS-2868 Splashcover for Max m III ECV-1307-W1 Battery for Max m III 2239138 Overlay Kit for Max m III 2239040 Access Key (6 pin) 2240545 Access Key (10 pin) 2240547
