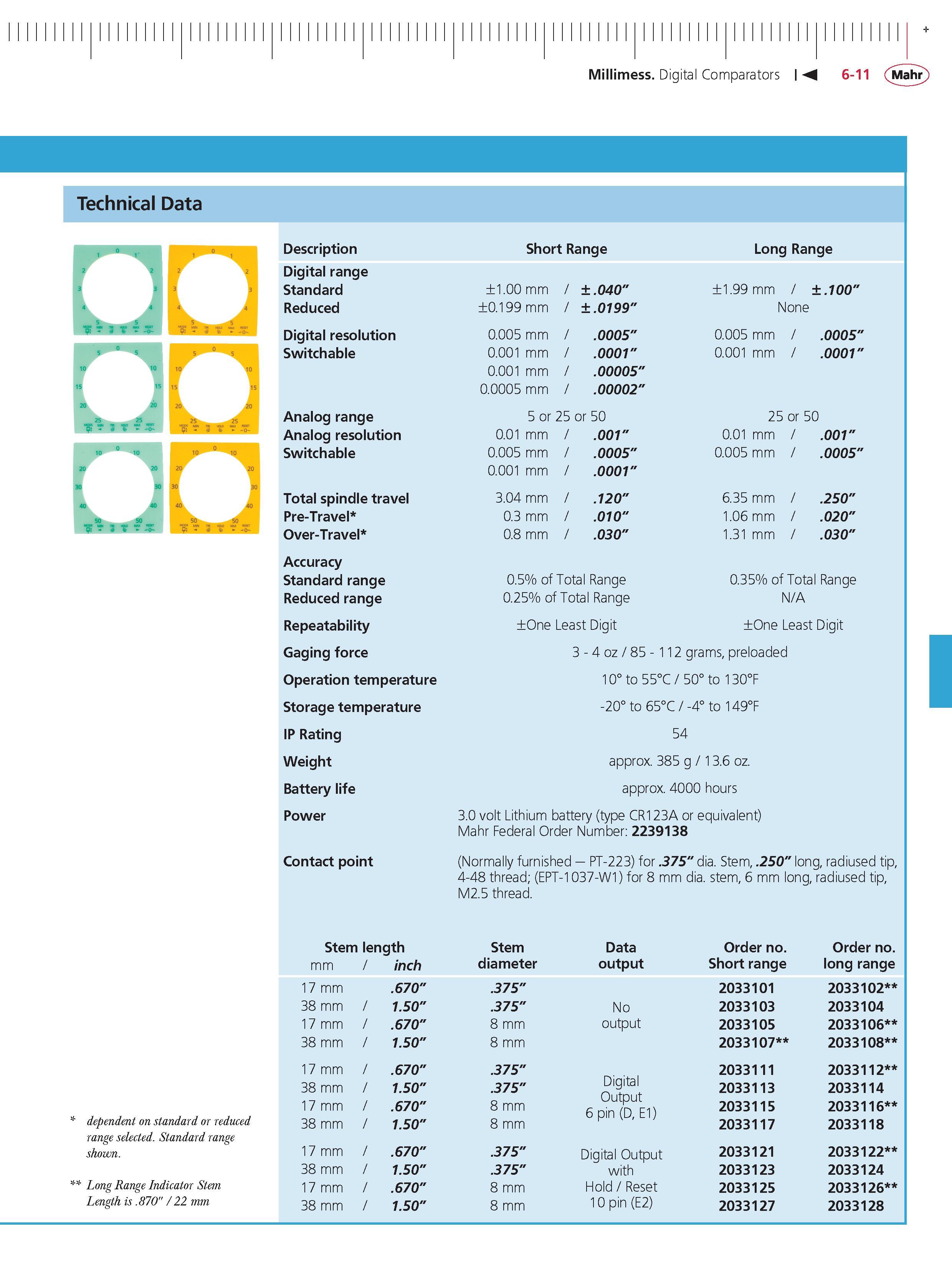

Millimess Digital Comparators M 6-11 Mahr + Technical Data Description Digital range Short Range Long range dependent on standard or reduced range selected. Standard range shown. Long Range Indicator Stem Length is .870" 22 mm Standard 1.00 mm .040" 1.99 mm .100" reduced 0.199 mm .0199" None Digital resolution 0.005 mm .0005" 0.005 mm .0005" Switchable 0.001 mm .0001" 0.001 mm .0001" 0.001 mm .00005" 0.0005 mm .00002" Analog range 5 or 25 or 50 25 or 50 Analog resolution 0.01 mm .001" 0.01 mm .001" Switchable 0.005 mm .0005" 0.005 mm .0005" 0.001 mm .0001" Total spindle travel 3.04 mm .120" 6.35 mm .250" Pre-Travel 0.3 mm .010" 1.06 mm .020" over-Travel 0.8 mm .030" 1.31 mm .030" Accuracy Standard range 0.5% of Total Range 0.35% of Total Range reduced range 0.25% of Total Range N A repeatability One Least Digit One Least Digit Gaging force 3 - 4 oz 85 - 112 grams preloaded operation temperature o 0 5 U o 5 5 o t o 0 to 130F Storage temperature -4 U 5 6 o t 0 -2 F 9 4 o t iP rating 54 weight approx. 385 g 13.6 oz. Battery life approx. 4000 hours Power 3.0 volt Lithium battery (type CR123A or equivalent) Mahr Federal Order Number 2239138 Contact point (Normally furnished PT-223) for .375" dia. Stem .250" long radiused tip 4-48 thread; (EPT-1037-W1) for 8 mm dia. stem 6 mm long radiused tip M2.5 thread. Stem length Stem Data order no. order no. mm inch diameter output Short range long range 17 mm .670" .375" 2033101 2033102 38 mm 1.50" .375" No 2033103 2033104 17 mm .670" 8 mm output 2033105 2033106 38 mm 1.50" 8 mm 2033107 2033108 17 mm .670" .375" 2033111 2033112 38 mm 1.50" .375" Digital 2033113 2033114 17 mm .670" 8 mm t tput Out 2033115 2033116 38 mm 1.50" 8 mm 2033117 2033118 17 mm .670" .375" Digital Output 2033121 2033122 38 mm 1.50" .375" with 2033123 2033124 17 mm .670" 8 mm Hold Reset 2033125 2033126 38 mm 1.50" 8 mm 10 pin (E2) 2033127 2033128 I
