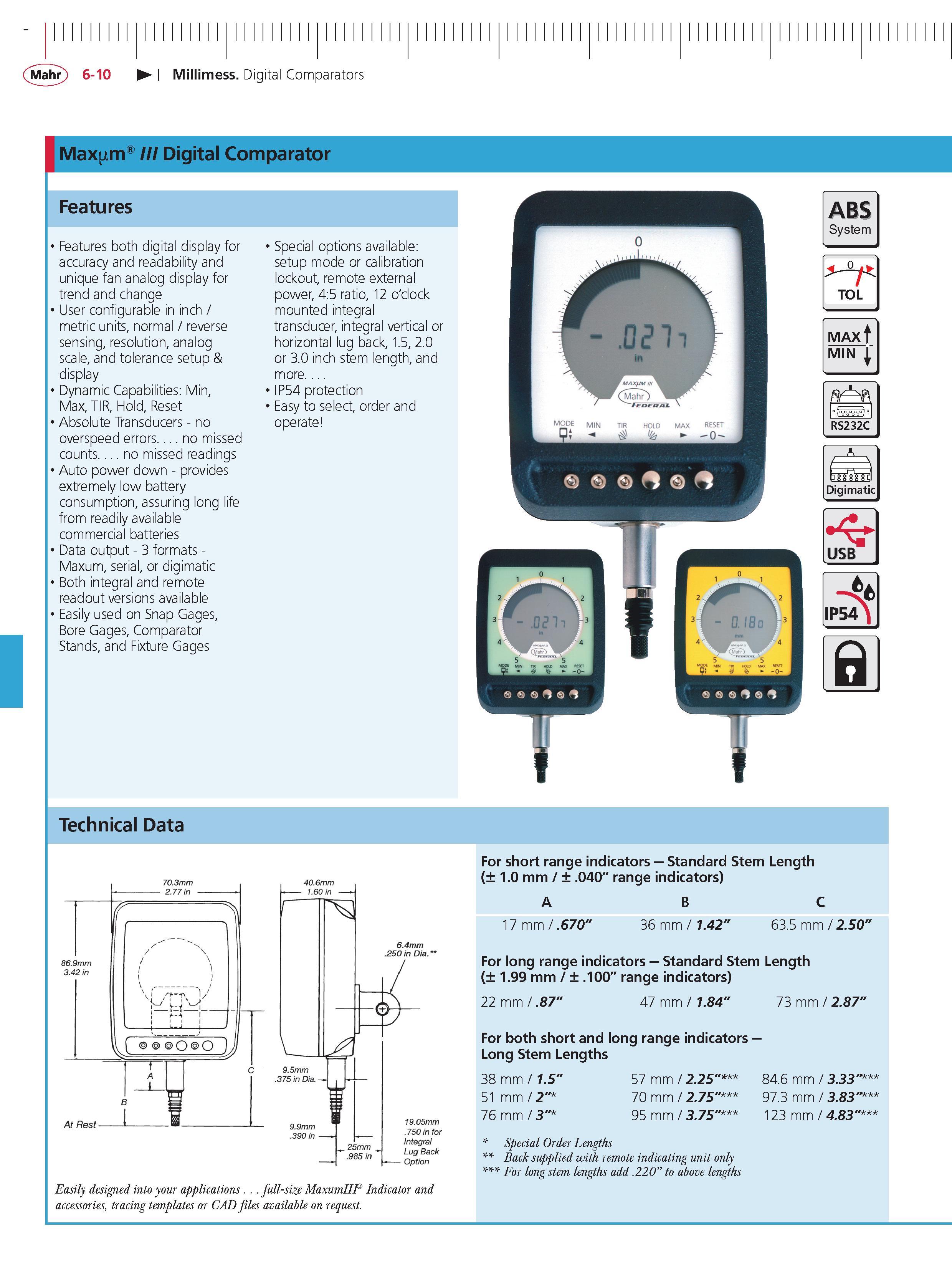

Mahr 6-10 Millimess Digital Comparators Max m III Digital Comparator Features Features both digital display for accuracy and readability and unique fan analog display for trend and change User configurable in inch metric units normal reverse sensing resolution analog scale and tolerance setup & display Dynamic Capabilities Min Max TIR Hold Reset Absolute Transducers - no overspeed errors. . no missed counts no missed readings Auto power down - provides extremely low battery consumption assuring long life from readily available commercial batteries Data output - 3 formats -Maxum serial or digimatic Both integral and remote readout versions available Easily used on Snap Gages Bore Gages Comparator Stands and Fixture Gages Special options available setup mode or calibration lockout remote external power 4:5 ratio 12 o'clock mounted integral transducer integral vertical or horizontal lug back 1.5 2.0 or 3.0 inch stem length and more. . IP54 protection Easy to select order and operate ABS System TOL MAX MIN RS232C Digimatic 7 USB IP54 a Technical Data For short range indicators Standard Stem Length ( 1.0 mm .040" range indicators) ABC 17 mm .670" 36 mm 1.42" 63.5 mm 2.50" For long range indicators Standard Stem Length ( 1.99 mm .100" range indicators) 22 mm .87" 47 mm 1.84" 73 mm 2.87" For both short and long range indicators Long Stem Lengths 38 mm 1.5" 57 mm 2.25" 51 mm 2" 70 mm 2.75" 76 mm 3" 95 mm 3.75" Special Order Lengths Back supplied with remote indicating unit only For long stem lengths add .220 to above lengths 84.6 mm 3.33" 97.3 mm 3.83" 123 mm 4.83" Easily designed into your applications . full-size MaxumIII Indicator and accessories tracing templates or CAD files available on request.
