205 Каталог MAHR 2014 Измерительные инструменты и приборы для линейно-угловых измерений Стр.6-7

Каталог MAHR 2014 Измерительные инструменты и приборы Стр. 6-7 0205 ENG Lab2u

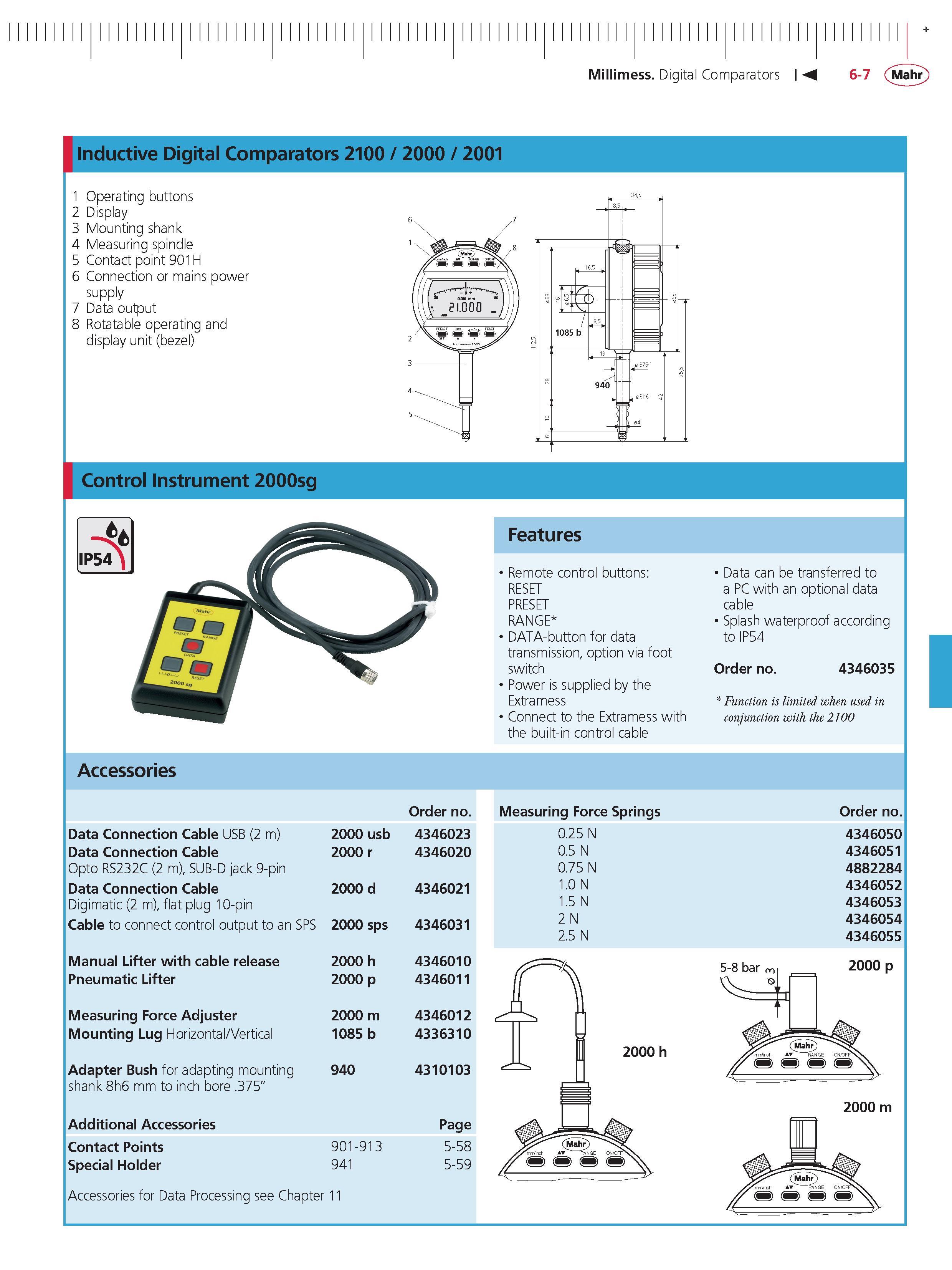

Millimess Digital Comparators M 6-7 Mahr Inductive Digital Comparators 2100 2000 2001 1 Operating buttons 2 Display 3 Mounting shank 4 Measuring spindle 5 Contact point 901H 6 Connection or mains power supply 7 Data output 8 Rotatable operating and display unit (bezel) Control instrument 2000sg Features Remote control buttons Data can be transferred to RESET a PC with an optional data PRESET cable RANGE Splash waterproof according DATA-button for data to IP54 transmission option via foot switch order no. 4346035 Power is supplied by the Extramess Function is limited when used in Connect to the Extramess with conjunction with the 2100 the built-in control cable Accessories order no. Data Connection Cable USB (2 m) 2000 usb 4346023 Data Connection Cable 2000 r 4346020 Opto RS232C (2 m) SUB-D jack 9-pin Data Connection Cable 2000 d 4346021 Digimatic (2 m) flat plug 10-pin Cable to connect control output to an SPS 2000 sps 4346031 Manual Lifter with cable release 2000 h 4346010 Pneumatic Lifter 2000 p 4346011 Measuring Force Adjuster 2000 m 4346012 Mounting Lug Horizontal Vertical 1085 b 4336310 Adapter Bush for adapting mounting 940 4310103 shank 8h6 mm to inch bore .375" Additional Accessories Page Contact Points 901-913 5-58 Special Holder 941 5-59 Accessories for Data Processing see Chapter 11 Measuring Force Springs order no. 0.25 N 4346050 0.5 N 4346051 0.75 N 4882284 1.0 N 4346052 1.5 N 4346053 2 N 4346054 2.5 N 4346055 2000 h
