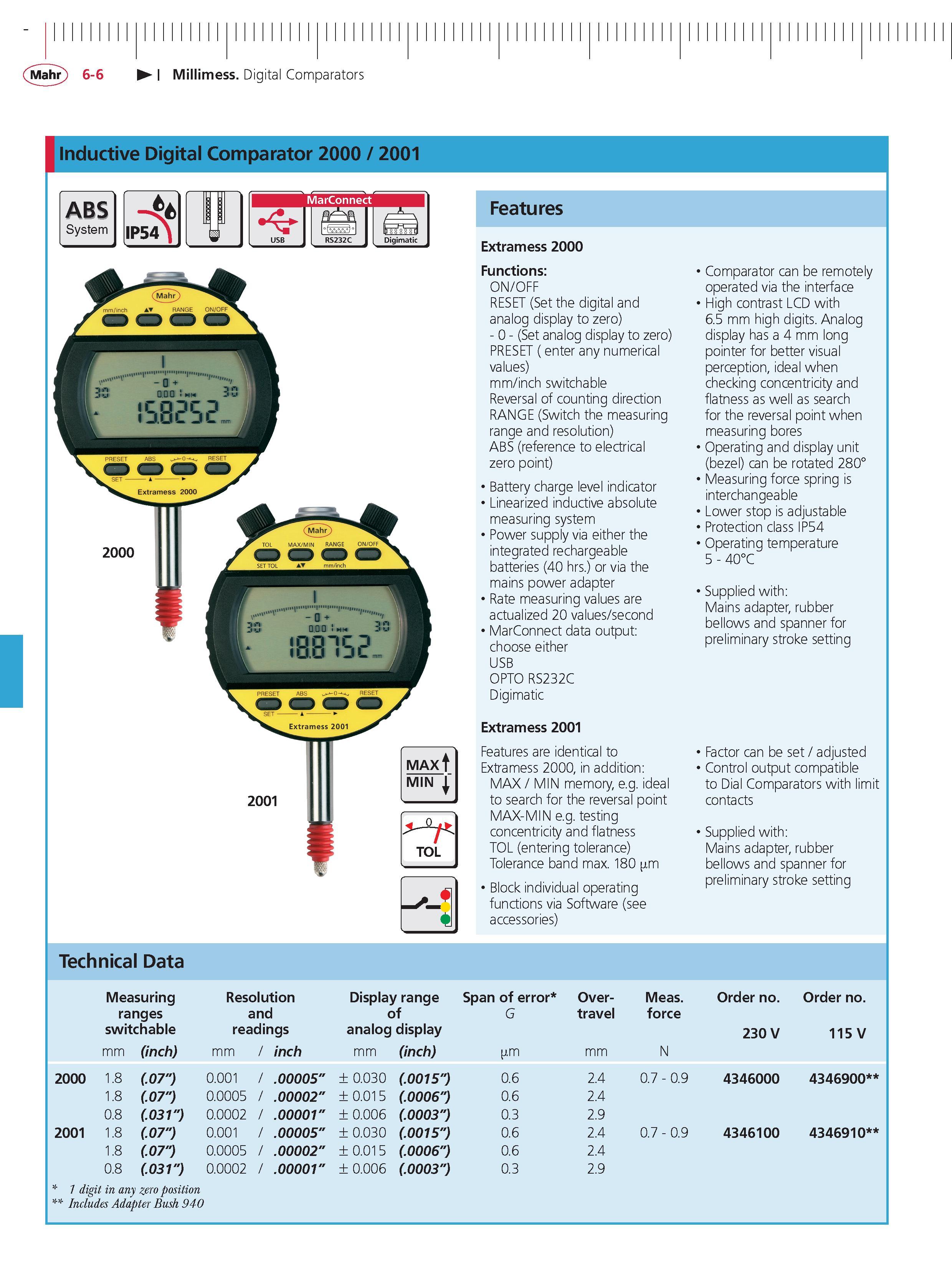

Mahr 6-6 Millimess Digital Comparators inductive Digital Comparator 2000 2001 ABS System MarConnect Digimatic Features Extramess 2000 Functions ON/OFF RESET (Set the digital and analog display to zero) - 0 - (Set analog display to zero) PRESET ( enter any numerical values) mm inch switchable Reversal of counting direction RANGE (Switch the measuring range and resolution) ABS (reference to electrical zero point) Battery charge level indicator Linearized inductive absolute measuring system Power supply via either the integrated rechargeable batteries (40 hrs.) or via the mains power adapter Rate measuring values are actualized 20 values second MarConnect data output choose either USB OPTO RS232C Digimatic Extramess 2001 Features are identical to Extramess 2000 in addition MAX MIN memory e.g. ideal to search for the reversal point MAX-MIN e.g. testing concentricity and flatness TOL (entering tolerance) Tolerance band max. 180 m Block individual operating functions via Software (see accessories) Comparator can be remotely operated via the interface High contrast LCD with 6.5 mm high digits. Analog display has a 4 mm long pointer for better visual perception ideal when checking concentricity and flatness as well as search for the reversal point when measuring bores Operating and display unit (bezel) can be rotated 280 Measuring force spring is interchangeable Lower stop is adjustable Protection class IP54 Operating temperature 5 - 40C Supplied with Mains adapter rubber bellows and spanner for preliminary stroke setting Factor can be set adjusted Control output compatible to Dial Comparators with limit contacts Supplied with Mains adapter rubber bellows and spanner for preliminary stroke setting Technical Data Measuring ranges switchable Resolution and readings Display range of analog display Span of error G over- travel Meas. force order no. 230 v order no. 115 v mm (inch) mm inch mm (inch) m mm N 2000 1.8 (.07") 0.001 .00005" 0.030 (.0015") 0.6 2.4 0.7 - 0.9 4346000 4346900 1.8 (.07") 0.0005 .00002" 0.015 (.0006") 0.6 2.4 0.8 (.031") 0.0002 .00001" 0.006 (.0003") 0.3 2.9 2001 1.8 (.07") 0.001 .00005" 0.030 (.0015") 0.6 2.4 0.7 - 0.9 4346100 4346910 1.8 (.07") 0.0005 .00002" 0.015 (.0006") 0.6 2.4 0.8 (.031") 0.0002 .00001" 0.006 (.0003") 0.3 2.9 1 digit in any zero position ' Includes Adapter Bush 940
