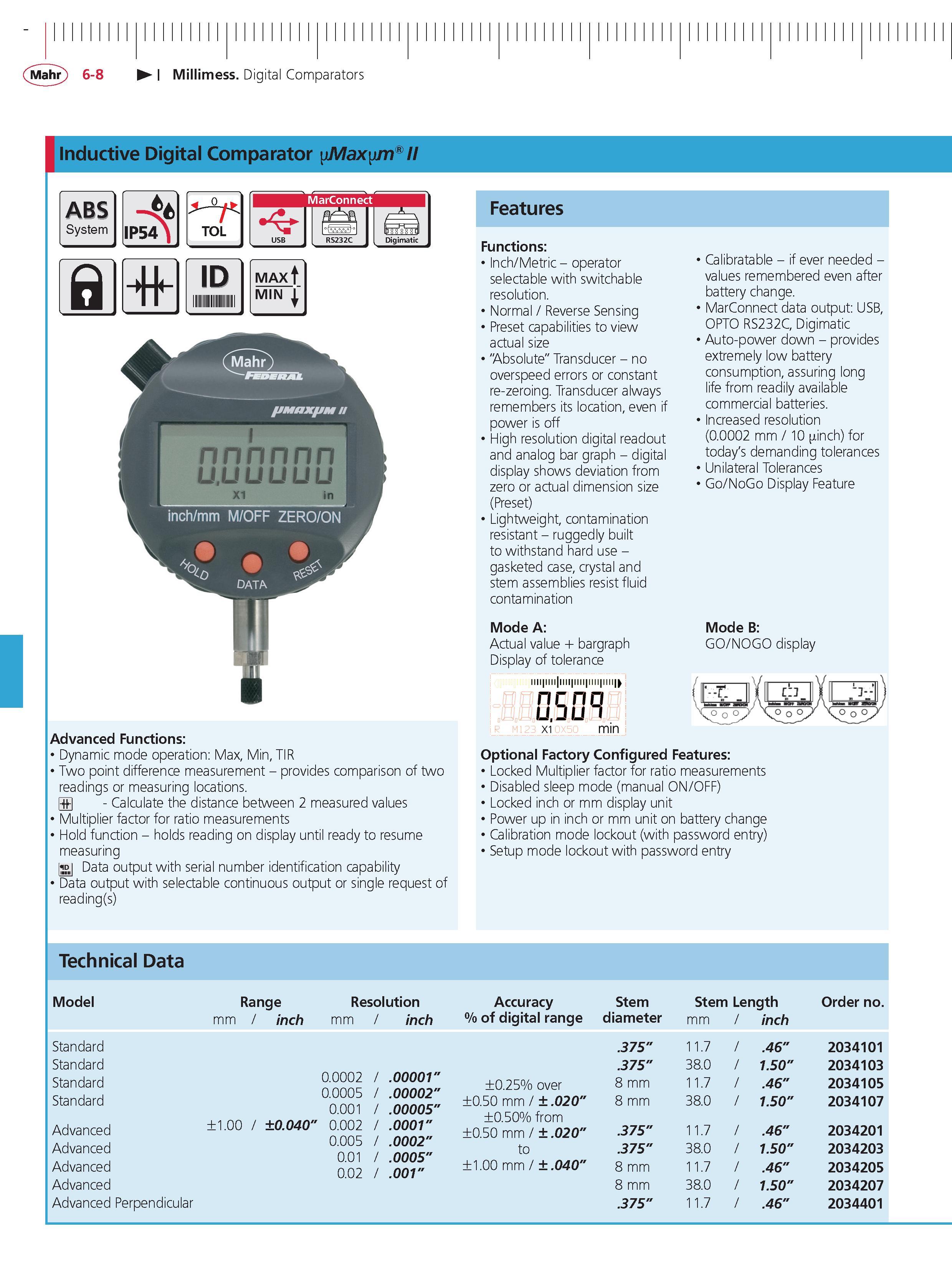

Mahr 6-8 Millimess Digital Comparators Inductive Digital Comparator yMaxym II ABS System TOL MarConnect Digimatic Advanced Functions Dynamic mode operation Max Min TIR Two point difference measurement - provides comparison of two readings or measuring locations. gg - Calculate the distance between 2 measured values Multiplier factor for ratio measurements Hold function - holds reading on display until ready to resume measuring D Data output with serial number identification capability Data output with selectable continuous output or single request of reading(s) Features Functions Inch Metric - operator selectable with switchable resolution. Normal Reverse Sensing Preset capabilities to view actual size "Absolute" Transducer - no overspeed errors or constant re-zeroing. Transducer always remembers its location even if power is off High resolution digital readout and analog bar graph - digital display shows deviation from zero or actual dimension size (Preset) Lightweight contamination resistant - ruggedly built to withstand hard use -gasketed case crystal and stem assemblies resist fluid contamination Mode A Actual value + bargraph Display of tolerance Calibratable - if ever needed -values remembered even after battery change. MarConnect data output USB OPTO RS232C Digimatic Auto-power down - provides extremely low battery consumption assuring long life from readily available commercial batteries. Increased resolution (0.0002 mm 10 inch) for today's demanding tolerances Unilateral Tolerances Go NoGo Display Feature Mode B GO NOGO display optional Factory Configured Features Locked Multiplier factor for ratio measurements Disabled sleep mode (manual ON/OFF) Locked inch or mm display unit Power up in inch or mm unit on battery change Calibration mode lockout (with password entry) Setup mode lockout with password entry Technical Data Model Standard Standard Standard Standard Advanced Advanced Advanced Advanced Advanced Perpendicular Range mm inch Resolution inch 1.00 0.040" mm 0.0002 .00001" 0.0005 .00002" 0.001 .00005" 0.002 .0001" 0.005 .0002" 0.01 .0005" 0.02 .001" Accuracy Stem Stem Length order no. % of digital range diameter mm inch .375" 11.7 .46" 2034101 .375" 38.0 1.50" 2034103 0.25% over 8 mm 11.7 .46" 2034105 0.50 mm .020" 8 mm 38.0 1.50" 2034107 0.50% from 0.50 mm .020" .375" 11.7 .46" 2034201 to .375" 38.0 1.50" 2034203 1.00 mm .040" 8 mm 11.7 .46" 2034205 8 mm 38.0 1.50" 2034207 .375" 11.7 .46" 2034401
