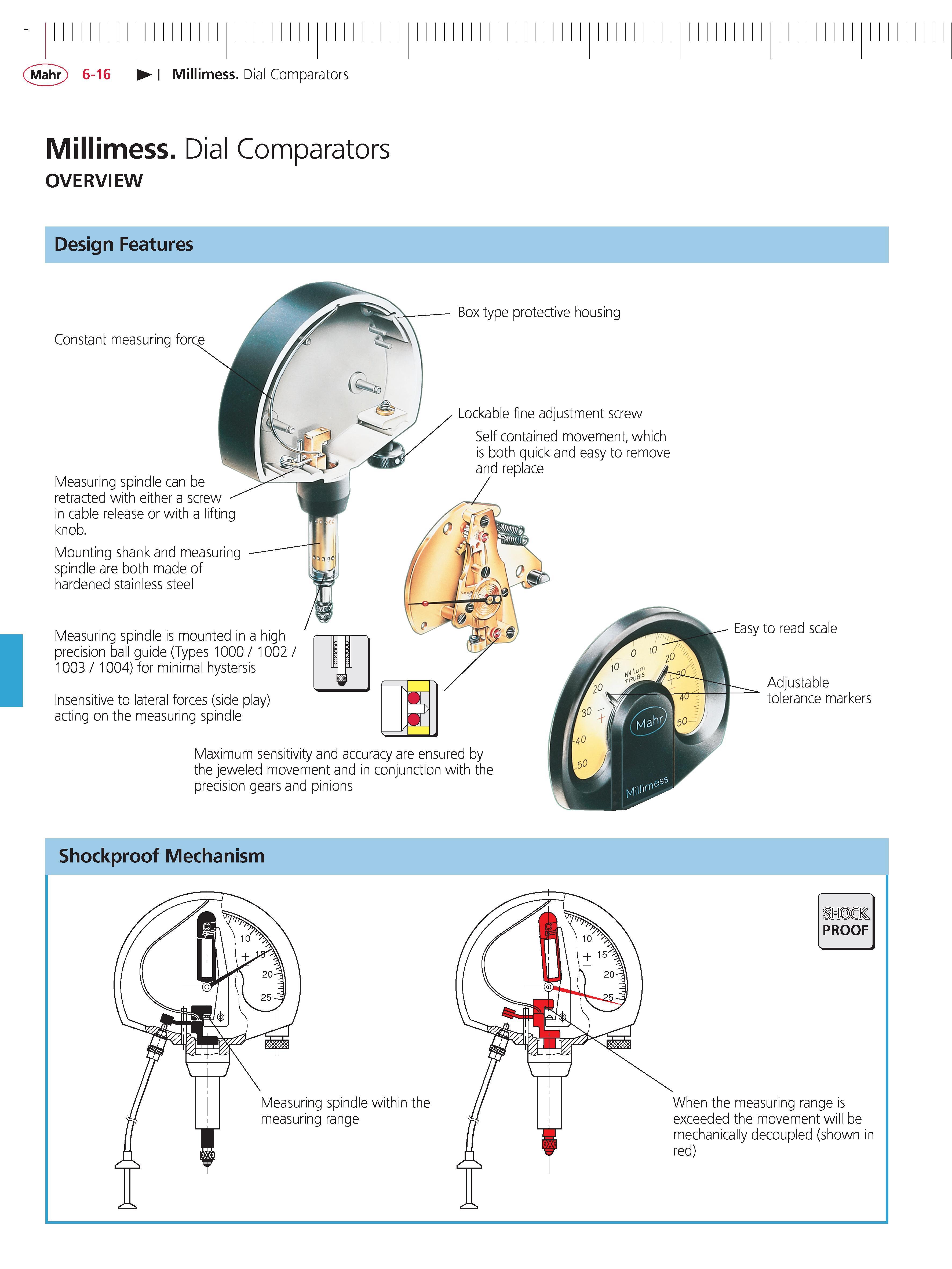

Mahr 6-16 Millimess Dial Comparators Millimess Dial Comparators OVERVIEW Design Features Box type protective housing Constant measuring force Measuring spindle can be retracted with either a screw in cable release or with a lifting knob. Mounting shank and measuring spindle are both made of hardened stainless steel Measuring spindle is mounted in a high precision ball guide (Types 1000 1002 1003 1004) for minimal hystersis Insensitive to lateral forces (side play) acting on the measuring spindle Lockable fine adjustment screw Self contained movement which is both quick and easy to remove and replace Maximum sensitivity and accuracy are ensured by the jeweled movement and in conjunction with the precision gears and pinions Easy to read scale Adjustable tolerance markers
