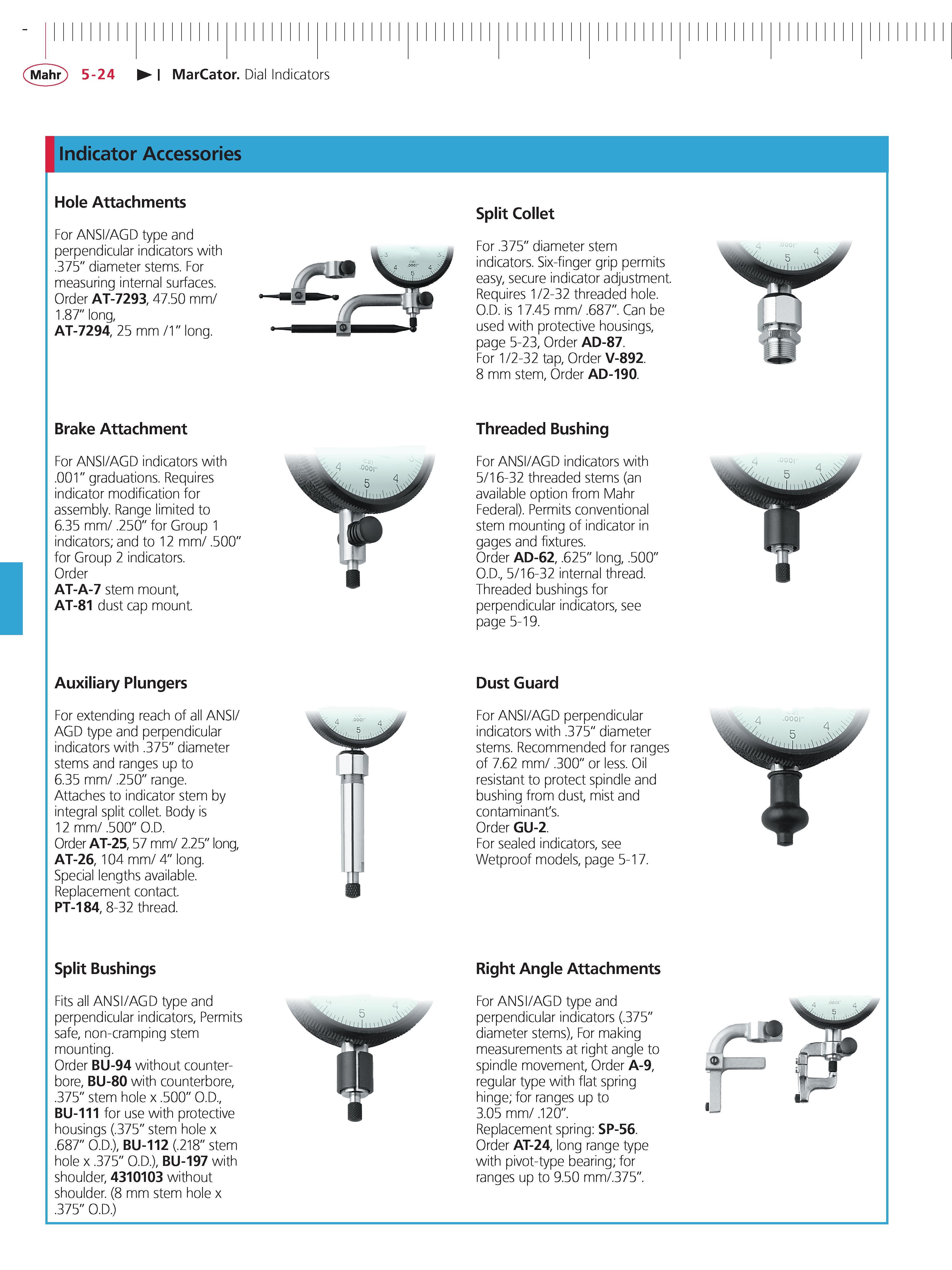

Mahr 5-24 MarCator Dial Indicators Indicator Accessories Hole Attachments For ANSI AGD type and perpendicular indicators with .375" diameter stems. For measuring internal surfaces. Order AT-7293 47.50 mm 1.87" long AT-7294 25 mm 1" long. Split Collet For .375" diameter stem indicators. Six-finger grip permits easy secure indicator adjustment. Requires 1 2-32 threaded hole. O.D. is 17.45 mm .687". Can be used with protective housings page 5-23 Order AD-87. For 1 2-32 tap Order v-892. 8 mm stem Order AD-190. Brake Attachment For ANSI AGD indicators with .001" graduations. Requires indicator modification for assembly. Range limited to 6.35 mm .250" for Group 1 indicators; and to 12 mm .500" for Group 2 indicators. Order AT-A-7 stem mount AT-81 dust cap mount. Threaded Bushing For ANSI AGD indicators with 5 16-32 threaded stems (an available option from Mahr Federal). Permits conventional stem mounting of indicator in gages and fixtures. Order AD-62 .625" long .500" O.D. 5 16-32 internal thread. Threaded bushings for perpendicular indicators see page 5-19. Auxiliary Plungers For extending reach of all ANSI AGD type and perpendicular indicators with .375" diameter stems and ranges up to 6.35 mm .250" range. Attaches to indicator stem by integral split collet. Body is 12 mm .500" O.D. Order AT-25 57 mm 2.25" long AT-26 104 mm 4" long. Special lengths available. Replacement contact. PT-184 8-32 thread. Dust Guard For ANSI AGD perpendicular indicators with .375" diameter stems. Recommended for ranges of 7.62 mm .300" or less. Oil resistant to protect spindle and bushing from dust mist and contaminant's. Order GU-2. For sealed indicators see Wetproof models page 5-17. Split Bushings Fits all ANSI AGD type and perpendicular indicators Permits safe non-cramping stem mounting. Order BU-94 without counterbore BU-80 with counterbore .375" stem hole x .500" O.D. BU-111 for use with protective housings (.375" stem hole x .687" O.D.) BU-112 (.218" stem hole x .375" O.D.) BU-197 with shoulder 4310103 without shoulder. (8 mm stem hole x .375" O.D.) Right Angle Attachments For ANSI AGD type and perpendicular indicators (.375" diameter stems) For making measurements at right angle to spindle movement Order A-9 regular type with flat spring hinge; for ranges up to 3.05 mm .120". Replacement spring SP-56. Order AT-24 long range type with pivot-type bearing; for ranges up to 9.50 mm .375".
