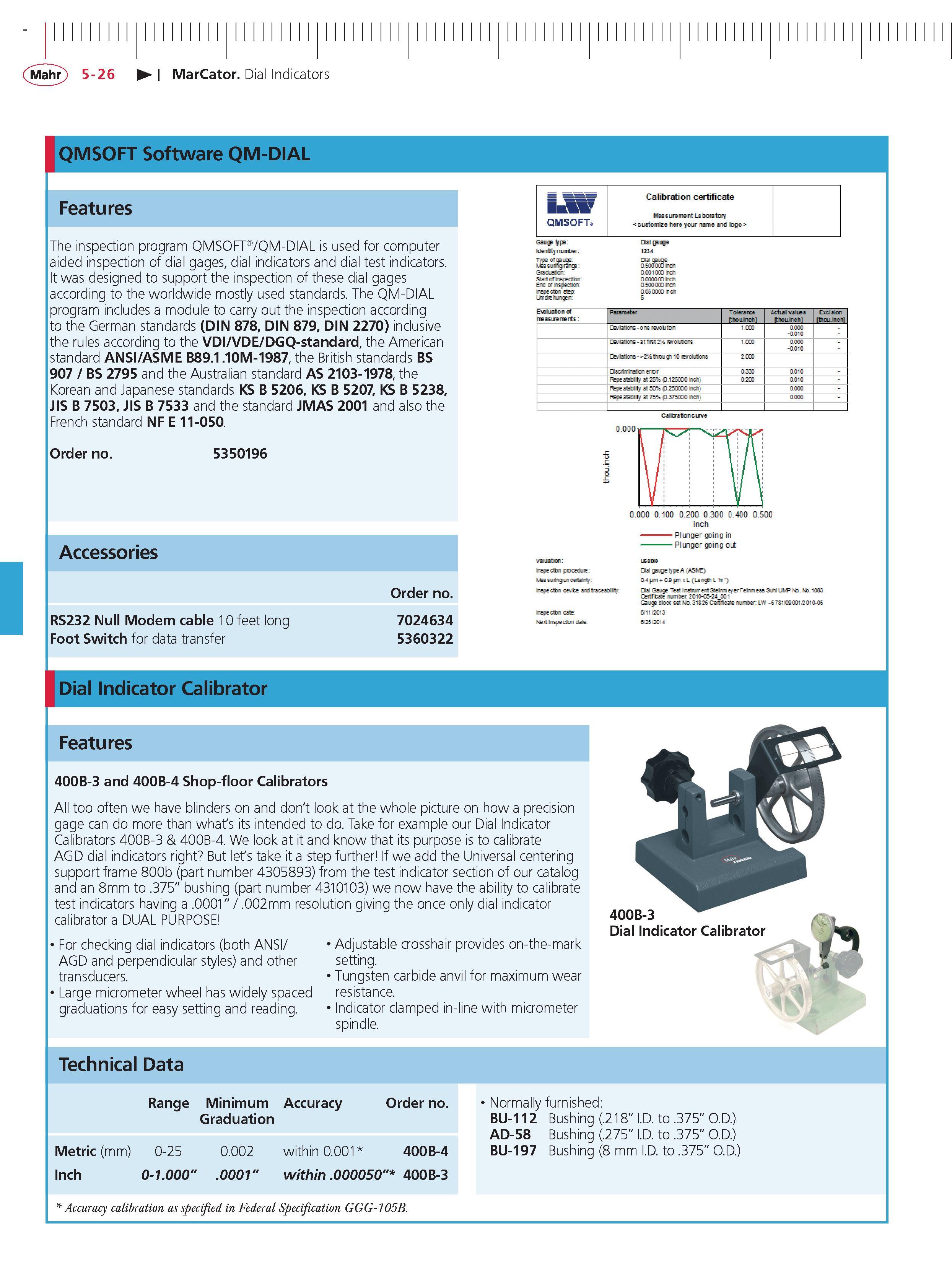

Mahr 5-26 MarCator Dial Indicators QMSOFT Software QM-DIAL Features The inspection program QMSOFT QM-DIAL is used for computer aided inspection of dial gages dial indicators and dial test indicators. It was designed to support the inspection of these dial gages according to the worldwide mostly used standards. The QM-DIAL program includes a module to carry out the inspection according to the German standards (DIN 878 DIN 879 DIN 2270) inclusive the rules according to the vDI vDE DGQ-standard the American standard ANSI ASME B89.1.10M-1987 the British standards BS 907 BS 2795 and the Australian standard AS 2103-1978 the Korean and Japanese standards KS B 5206 KS B 5207 KS B 5238 JIS B 7503 JIS B 7533 and the standard JMAS 2001 and also the French standard NF E 11-050. order no. 5350196 Accessories order no. RS232 Null Modem cable 10 feet long Foot Switch for data transfer 7024634 5360322 Dial Indicator Calibrator Features 400B-3 and 400B-4 Shop-floor Calibrators All too often we have blinders on and don't look at the whole picture on how a precision gage can do more than what's its intended to do. Take for example our Dial Indicator Calibrators 400B-3 & 400B-4. We look at it and know that its purpose is to calibrate AGD dial indicators right But let's take it a step further If we add the Universal centering support frame 800b (part number 4305893) from the test indicator section of our catalog and an 8mm to .375" bushing (part number 4310103) we now have the ability to calibrate test indicators having a .0001" .002mm resolution giving the once only dial indicator calibrator a DUAL PURPOSE For checking dial indicators (both ANSI AGD and perpendicular styles) and other transducers. Large micrometer wheel has widely spaced graduations for easy setting and reading. Adjustable crosshair provides on-the-mark setting. Tungsten carbide anvil for maximum wear resistance. Indicator clamped in-line with micrometer spindle. 400B-3 Dial Indicator Calibrator Technical Data Range Minimum Accuracy Graduation order no. Metric (mm) 0-25 0.002 Inch 0-1.000" .0001" within 0.001 400B-4 within .000050" 400B-3 Normally furnished BU-112 Bushing (.218" I.D. to .375" O.D.) AD-58 Bushing (.275" I.D. to .375" O.D.) BU-197 Bushing (8 mm I.D. to .375" O.D.) Accuracy calibration as specified in Federal Specification GGG-105B.
