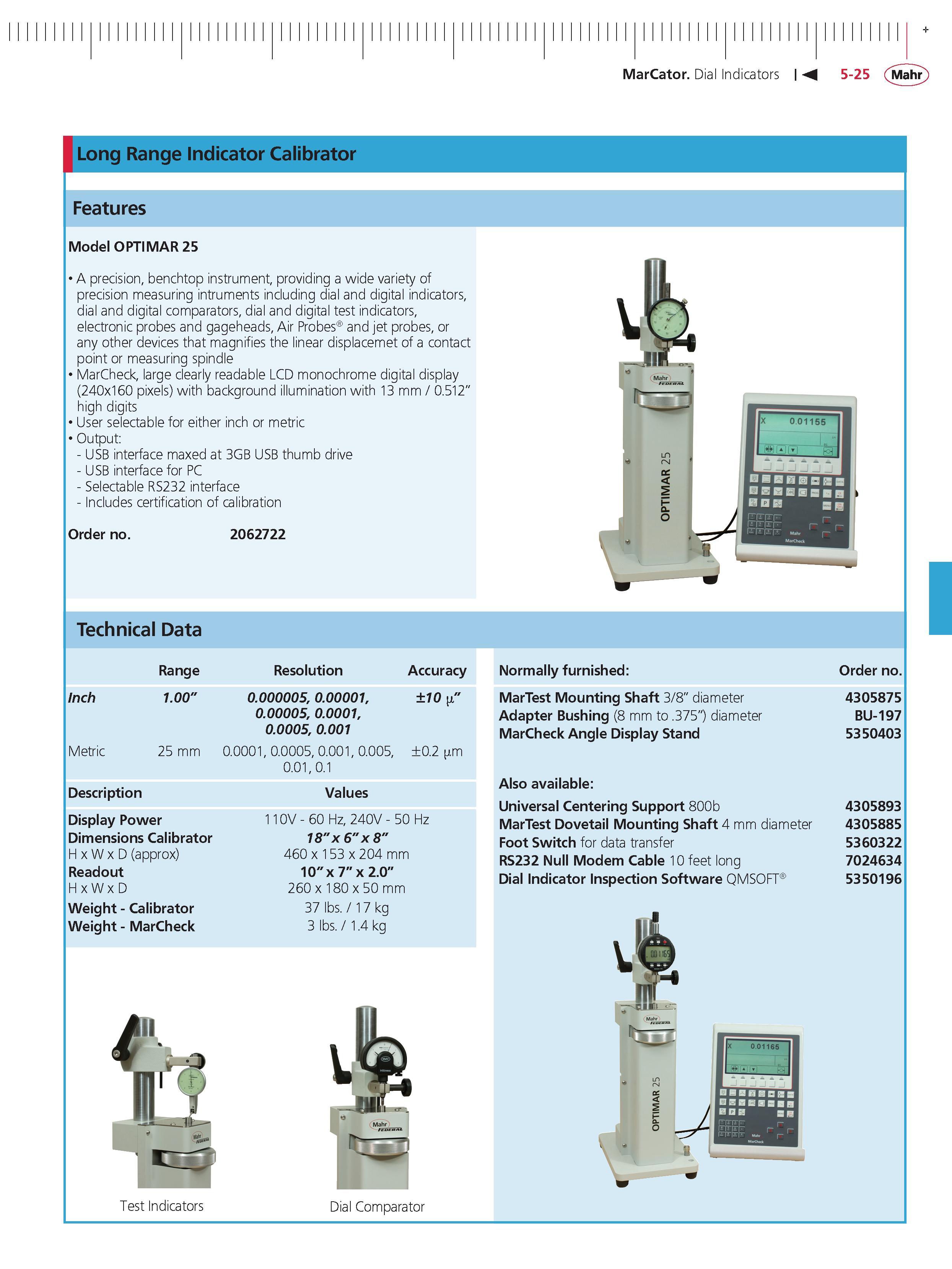

MarCator Dial Indicators 5-25 Mahr Long Range Indicator Calibrator Features Model oPTIMAR 25 A precision benchtop instrument providing a wide variety of precision measuring intruments including dial and digital indicators dial and digital comparators dial and digital test indicators electronic probes and gageheads Air Probes and jet probes or any other devices that magnifies the linear displacemet of a contact point or measuring spindle MarCheck large clearly readable LCD monochrome digital display (240x160 pixels) with background illumination with 13 mm 0.512" high digits User selectable for either inch or metric Output - USB interface maxed at 3GB USB thumb drive - USB interface for PC - Selectable RS232 interface - Includes certification of calibration order no. 2062722 Technical Data Range Resolution Accuracy Inch 1.00" 0.000005 0.00001 10 y" 0.00005 0.0001 0.0005 0.001 Metric 25 mm 0.0001 0.0005 0.001 0.005 0.2 m 0.01 0.1 Description values Display Power 110V - 60 Hz 240V - 50 Hz Dimensions Calibrator 18" x 6" x 8" H x W x D (approx) 460 x 153 x 204 mm Readout 10" x 7" x 2.0" H x W x D 260 x 180 x 50 mm weight - Calibrator 37 lbs. 17 kg weight - MarCheck 3 lbs. 1.4 kg Normally furnished order no. MarTest Mounting Shaft 3 8" diameter 4305875 Adapter Bushing (8 mm to .375") diameter BU-197 MarCheck Angle Display Stand 5350403 Also available Universal Centering Support 800b 4305893 MarTest Dovetail Mounting Shaft 4 mm diameter 4305885 Foot Switch for data transfer 5360322 RS232 Null Modem Cable 10 feet long 7024634 Dial Indicator Inspection Software QMSOFT 5350196 Test Indicators Dial Comparator
