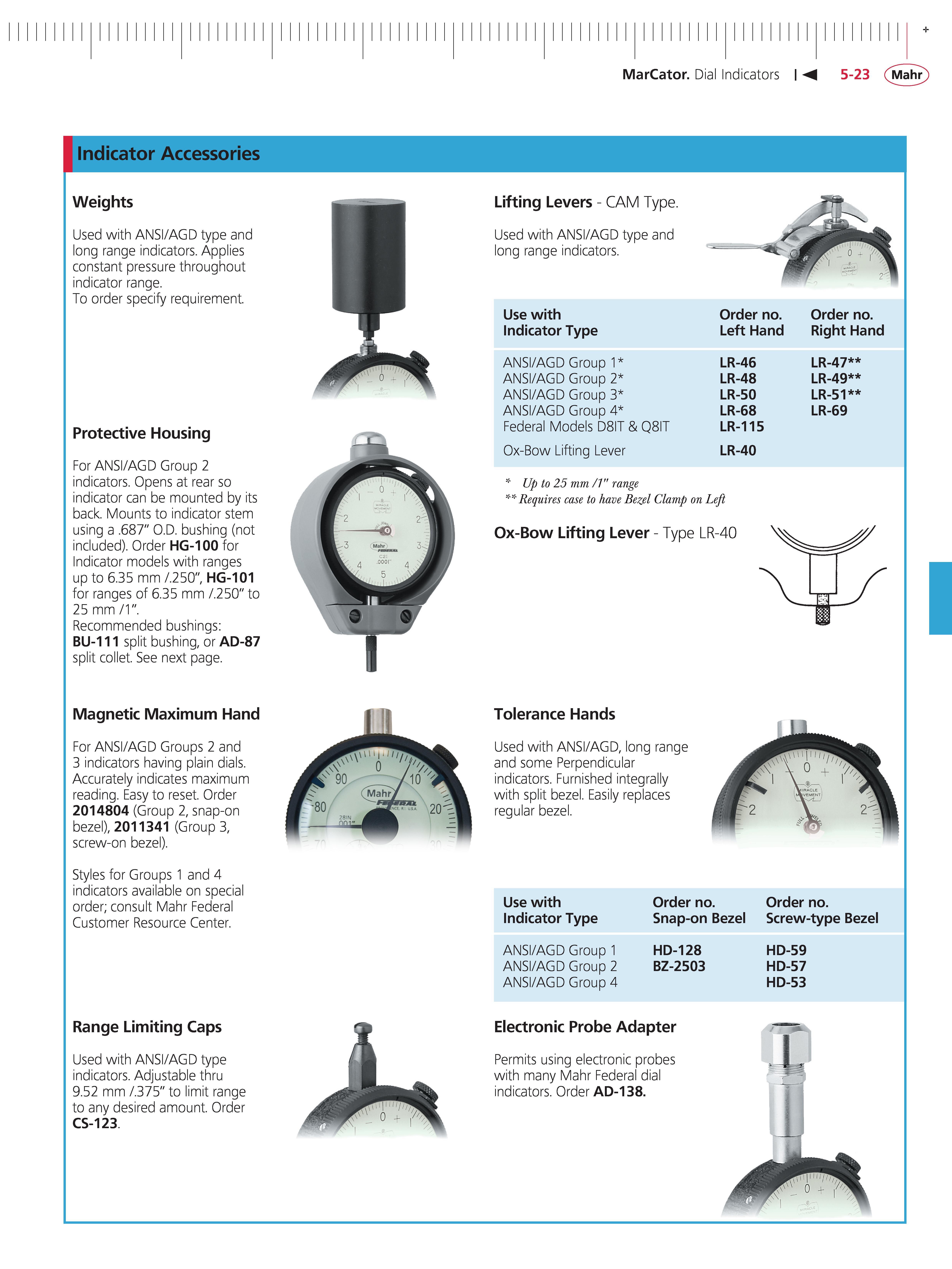

MarCator Dial Indicators 5-23 Mahr Indicator Accessories Weights Used with ANSI AGD type and long range indicators. Applies constant pressure throughout indicator range. To order specify requirement. Protective Housing For ANSI AGD Group 2 indicators. Opens at rear so indicator can be mounted by its back. Mounts to indicator stem using a .687" O.D. bushing (not included). Order HG-100 for Indicator models with ranges up to 6.35 mm .250" HG-101 for ranges of 6.35 mm .250" to 25 mm 1" Recommended bushings BU-111 split bushing or AD-87 split collet. See next page. Magnetic Maximum Hand For ANSI AGD Groups 2 and 3 indicators having plain dials. Accurately indicates maximum reading. Easy to reset. Order 2014804 (Group 2 snap-on bezel) 2011341 (Group 3 screw-on bezel). Styles for Groups 1 and 4 indicators available on special order; consult Mahr Federal Customer Resource Center. Range Limiting Caps Used with ANSI AGD type indicators. Adjustable thru 9.52 mm .375" to limit range to any desired amount. Order CS-123. Lifting Levers - CAM Type. Used with ANSI AGD type and long range indicators. Use with order no. order no. Indicator Type Left Hand Right Hand ANSI AGD Group 1 LR-46 LR-47 ANSI AGD Group 2 LR-48 LR-49 ANSI AGD Group 3 LR-50 LR-51 ANSI AGD Group 4 LR-68 LR-69 Federal Models D8IT & Q8IT LR-115 Ox-Bow Lifting Lever LR-40 Up to 25 mm 1 range Requires case to have Bezel Clamp on Left ox-Bow Lifting Lever - Type LR-40 Tolerance Hands Used with ANSI AGD long range and some Perpendicular indicators. Furnished integrally with split bezel. Easily replaces regular bezel. Use with order no. order no. Indicator Type Snap-on Bezel Screw-type Bezel ANSI AGD Group 1 HD-128 HD-59 ANSI AGD Group 2 BZ-2503 HD-57 ANSI AGD Group 4 HD-53 Electronic Probe Adapter Permits using electronic probes with many Mahr Federal dial indicators. Order AD-138. +
