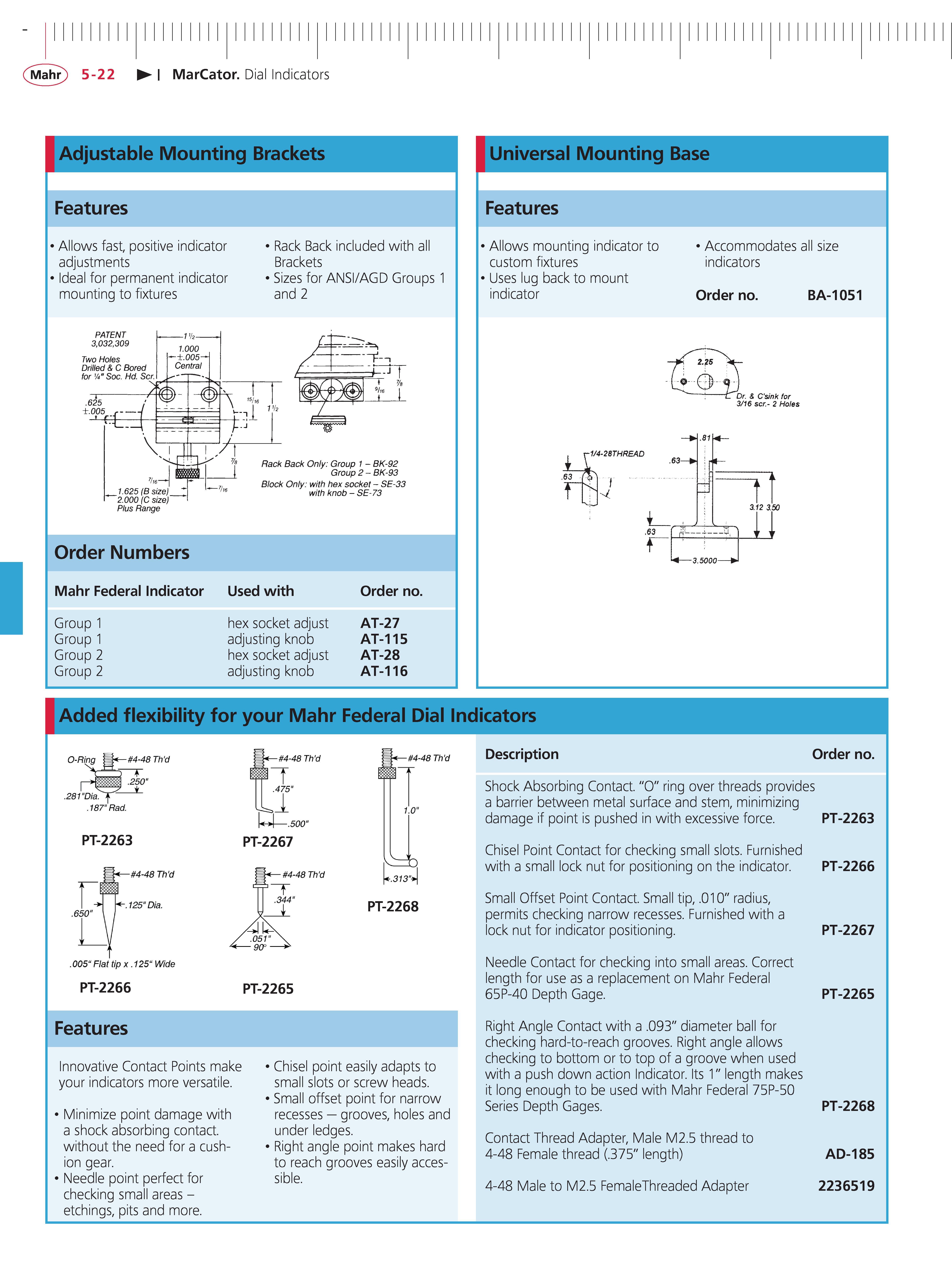

Mahr 5-22 MarCator Dial Indicators Adjustable Mounting Brackets Features Allows fast positive indicator adjustments Ideal for permanent indicator mounting to fixtures Rack Back included with all Brackets Sizes for ANSI AGD Groups 1 and 2 order Numbers Mahr Federal Indicator Used with Group 1 Group 1 Group 2 Group 2 hex socket adjust adjusting knob hex socket adjust adjusting knob order no. AT-27 AT-115 AT-28 AT-116 Universal Mounting Base Features Allows mounting indicator to custom fixtures Uses lug back to mount indicator Accommodates all size indicators order no. BA-1051 Added flexibility for your Mahr Federal Dial Indicators PT-2263 PT-2267 PT-2268 PT-2266 PT-2265 Features Innovative Contact Points make your indicators more versatile. Minimize point damage with a shock absorbing contact. without the need for a cushion gear. Needle point perfect for checking small areas -etchings pits and more. Chisel point easily adapts to small slots or screw heads. Small offset point for narrow recesses grooves holes and under ledges. Right angle point makes hard to reach grooves easily accessible. Description order no. Shock Absorbing Contact. "O" ring over threads provides a barrier between metal surface and stem minimizing damage if point is pushed in with excessive force. PT-2263 Chisel Point Contact for checking small slots. Furnished with a small lock nut for positioning on the indicator. PT-2266 Small Offset Point Contact. Small tip .010" radius permits checking narrow recesses. Furnished with a lock nut for indicator positioning. PT-2267 Needle Contact for checking into small areas. Correct length for use as a replacement on Mahr Federal 65P-40 Depth Gage. PT-2265 Right Angle Contact with a .093" diameter ball for checking hard-to-reach grooves. Right angle allows checking to bottom or to top of a groove when used with a push down action Indicator. Its 1" length makes it long enough to be used with Mahr Federal 75P-50 Series Depth Gages. PT-2268 Contact Thread Adapter Male M2.5 thread to 4-48 Female thread (.375" length) AD-185 4-48 Male to M2.5 FemaleThreaded Adapter 2236519
