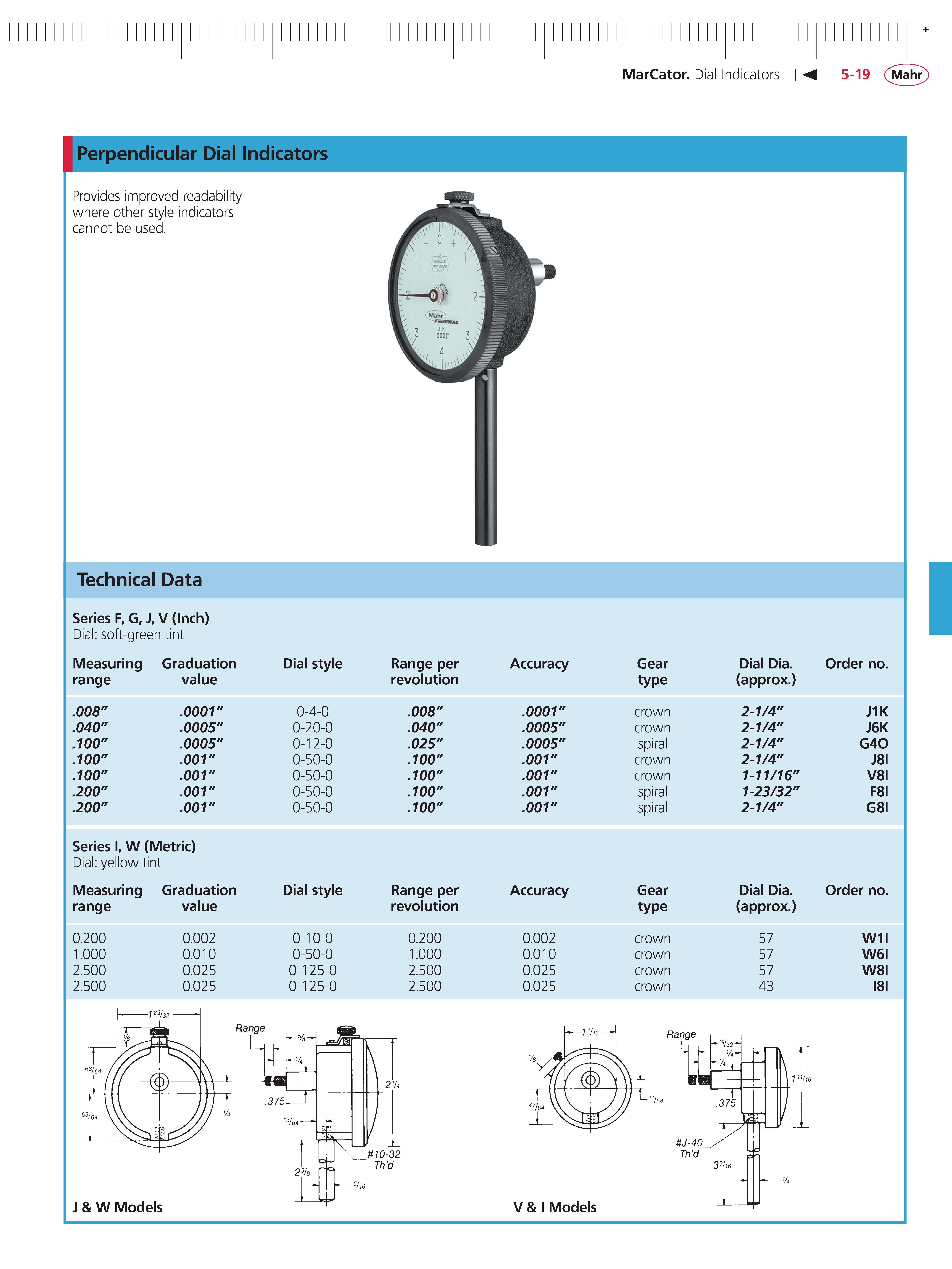

MarCator Dial Indicators M 5-19 Mahr Perpendicular Dial Indicators Provides improved readability where other style indicators cannot be used. Technical Data Series F G J v (Inch) Dial soft-green tint Measuring Graduation Dial style Range per Accuracy Gear Dial Dia. order no. range value revolution type (approx.) .008" .0001" 0-4-0 .008" .0001" crown 2-1 4" J1K .040" .0005" 0-20-0 .040" .0005" crown 2-1 4" J6K .100" .0005" 0-12-0 .025" .0005" spiral 2-1 4" G4o .100" .001" 0-50-0 .100" .001" crown 2-1 4" J8I .100" .001" 0-50-0 .100" .001" crown 1-11 16" v8I .200" .001" 0-50-0 .100" .001" spiral 1-23 32" F8I .200" .001" 0-50-0 .100" .001" spiral 2-1 4" G8I Series w (Metric) Dial yellow tint Measuring Graduation Dial style Range per Accuracy Gear Dial Dia. order no. range value revolution type (approx.) 0.200 0.002 0-10-0 0.200 0.002 crown 57 w1I 1.000 0.010 0-50-0 1.000 0.010 crown 57 w6I 2.500 0.025 0-125-0 2.500 0.025 crown 57 w8I 2.500 0.025 0-125-0 2.500 0.025 crown 43 I8I v & Models +
