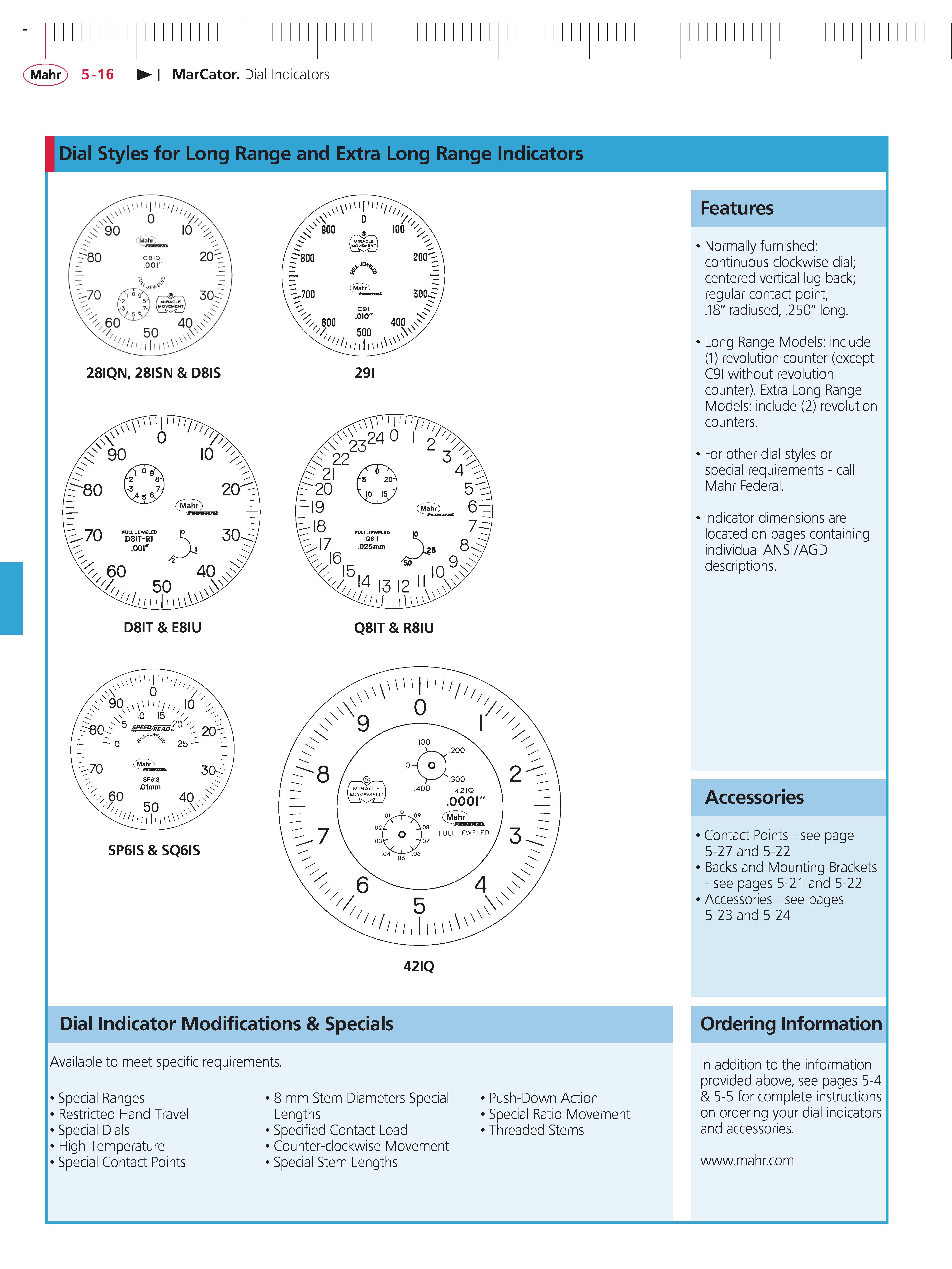

Mahr 5-16 MarCator Dial Indicators Dial Styles for Long Range and Extra Long Range Indicators 28IQN 28ISN & D8IS 29I D8IT & E8IU LLh n iU Q8IT & R8IU 42IQ Features 1 Normally furnished continuous clockwise dial; centered vertical lug back; regular contact point .18" radiused .250" long. 1 Long Range Models include (1) revolution counter (except C9I without revolution counter). Extra Long Range Models include (2) revolution counters. 1 For other dial styles or special requirements - call Mahr Federal. 1 Indicator dimensions are located on pages containing individual ANSI AGD descriptions. Accessories Contact Points - see page 5-27 and 5-22 Backs and Mounting Brackets - see pages 5-21 and 5-22 Accessories - see pages 5-23 and 5-24 Dial Indicator Modifications & Specials Available to meet specific requirements. Special Ranges Restricted Hand Travel Special Dials High Temperature Special Contact Points 8 mm Stem Diameters Special Lengths Specified Contact Load Counter-clockwise Movement Special Stem Lengths Push-Down Action Special Ratio Movement Threaded Stems ordering Information In addition to the information provided above see pages 5-4 & 5-5 for complete instructions on ordering your dial indicators and accessories. www.mahr.com
