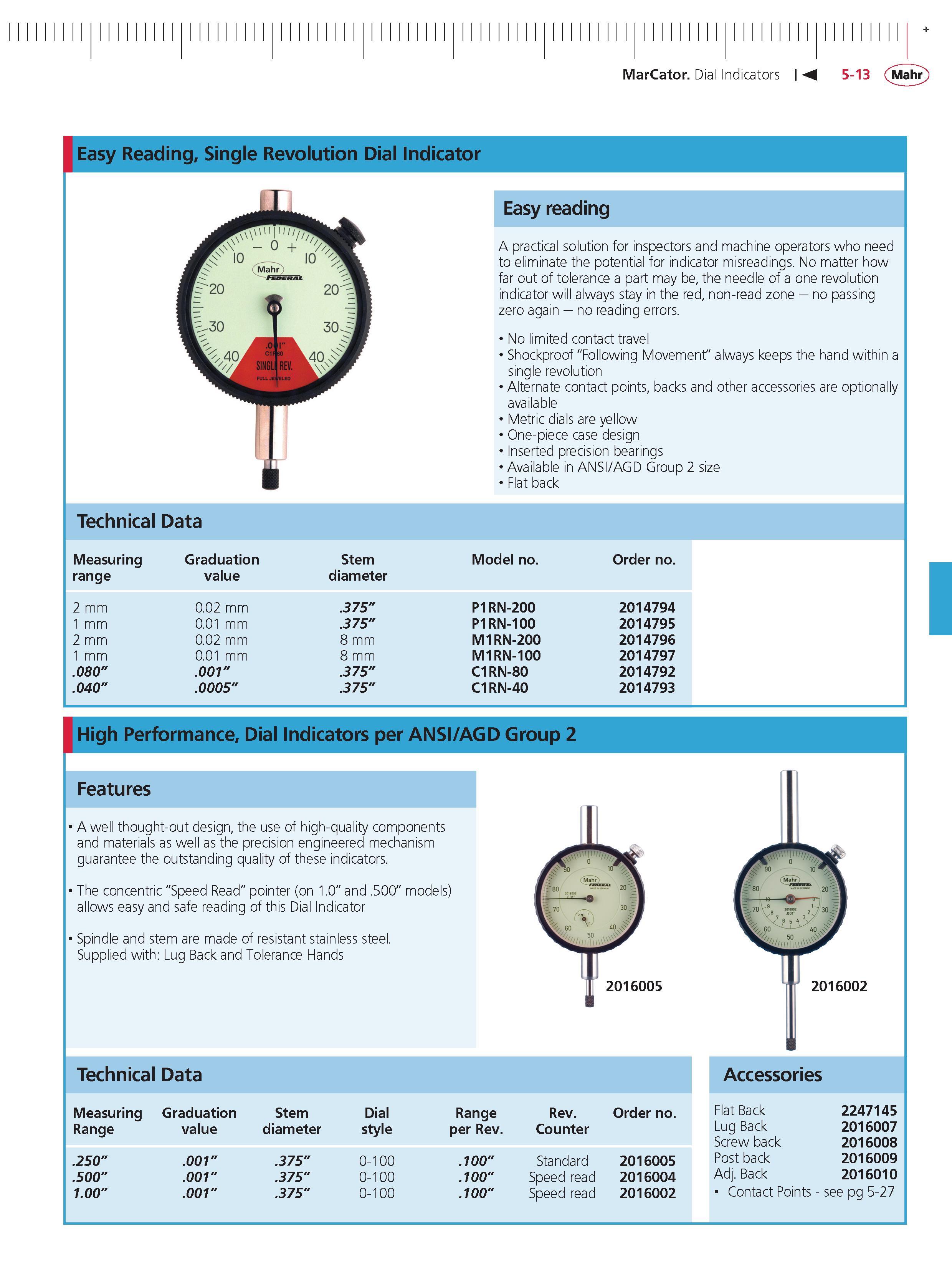

MarCator Dial Indicators M 5-13 Mahr High Performance Dial Indicators per ANSI AGD Group 2 Features A well thought-out design the use of high-quality components and materials as well as the precision engineered mechanism guarantee the outstanding quality of these indicators. The concentric "Speed Read" pointer (on 1.0" and .500" models) allows easy and safe reading of this Dial Indicator Spindle and stem are made of resistant stainless steel. Supplied with Lug Back and Tolerance Hands Technical Data Measuring Graduation Stem Dial Range value diameter style .250" .001" .375" 0-100 .500" .001" .375" 0-100 1.00" .001" .375" 0-100 2016005 Range per Rev. .100" .100" .100" Rev. Counter Standard Speed read Speed read order no. 2016005 2016004 2016002 2016002 Accessories Flat Back 2247145 Lug Back 2016007 Screw back 2016008 Post back 2016009 Adj. Back 2016010 Contact Points - see pg 5-27 Easy reading Single revolution Dial Indicator Easy reading A practical solution for inspectors and machine operators who need to eliminate the potential for indicator misreadings. No matter how far out of tolerance a part may be the needle of a one revolution indicator will always stay in the red non-read zone no passing zero again no reading errors. No limited contact travel Shockproof "Following Movement" always keeps the hand within a single revolution Alternate contact points backs and other accessories are optionally available Metric dials are yellow One-piece case design Inserted precision bearings Available in ANSI AGD Group 2 size Flat back Technical Data Measuring range Graduation value Stem diameter Model no. order no. 2 mm 0.02 mm .375" P1 RN-200 2014794 1 mm 0.01 mm .375" P1RN-100 2014795 2 mm 0.02 mm 8 mm M1RN-200 2014796 1 mm 0.01 mm 8 mm M1RN-100 2014797 .080" .001" .375" C1RN-80 2014792 .040" .0005" .375" C1RN-40 2014793
