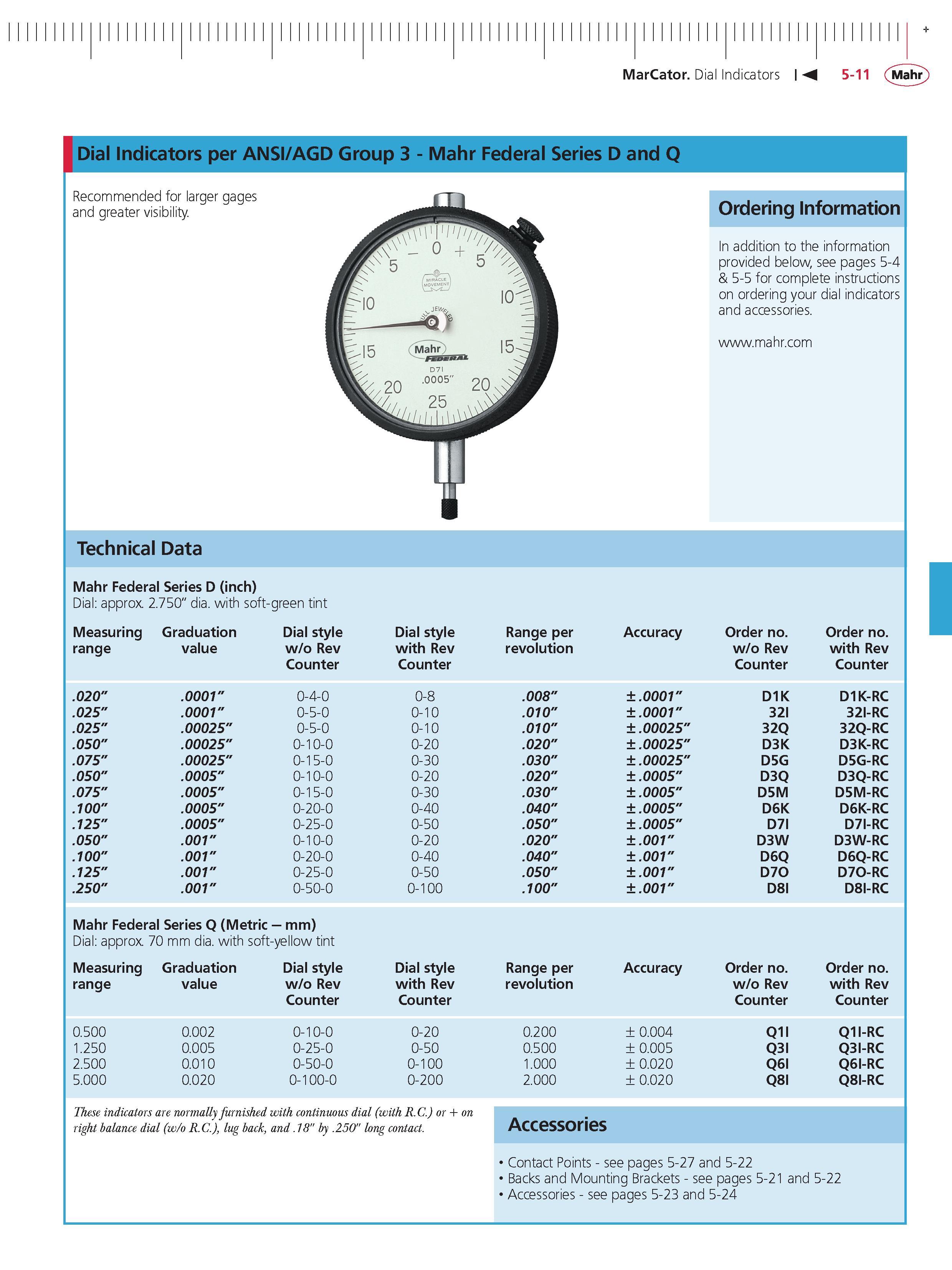

MarCator Dial Indicators M 5-11 Mahr Dial Indicators per ANSI AGD Group 3 - Mahr Federal Series D and Q Recommended for larger gages and greater visibility. ordering Information In addition to the information provided below see pages 5-4 & 5-5 for complete instructions on ordering your dial indicators and accessories. Mahr Technical Data Mahr Federal Series D (inch) Dial approx. 2.750" dia. with soft-green tint Measuring Graduation Dial style Dial style Range per Accuracy order no. order no. range value w o Rev with Rev revolution w o Rev with Rev Counter Counter Counter Counter .020" .0001" 0-4-0 0-8 .008" .0001" D1K D1K-RC .025" .0001" 0-5-0 0-10 .010" .0001" 32I 32I-RC .025" .00025" 0-5-0 0-10 .010" .00025" 32Q 32Q-RC .050" .00025" 0-10-0 0-20 .020" .00025" D3K D3K-RC .075" .00025" 0-15-0 0-30 .030" .00025" D5G D5G-RC .050" .0005" 0-10-0 0-20 .020" .0005" D3Q D3Q-RC .075" .0005" 0-15-0 0-30 .030" .0005" D5M D5M-RC .100" .0005" 0-20-0 0-40 .040" .0005" D6K D6K-RC .125" .0005" 0-25-0 0-50 .050" .0005" D7I D7I-RC .050" .001" 0-10-0 0-20 .020" .001" D3w D3w-RC .100" .001" 0-20-0 0-40 .040" .001" D6Q D6Q-RC .125" .001" 0-25-0 0-50 .050" .001" D7o D7o-RC .250" .001" 0-50-0 0-100 .100" .001" D8I D8I-RC Mahr Federal Series Q (Metric mm) Dial approx. 70 mm dia. with soft-yellow tint Measuring Graduation Dial style Dial style Range per Accuracy order no. order no. range value w o Rev with Rev revolution w o Rev with Rev Counter Counter Counter Counter 0.500 0.002 0-10-0 0-20 0.200 0.004 Q1I Q1I-RC 1.250 0.005 0-25-0 0-50 0.500 0.005 Q3I Q3I-RC 2.500 0.010 0-50-0 0-100 1.000 0.020 Q6I Q6I-RC 5.000 0.020 0-100-0 0-200 2.000 0.020 Q8I Q8I-RC These indicators are normally furnished with continuous dial (with R.C.) or + on right balance dial (w o R.C.) lug back and .18" by .250" long contact. Accessories Contact Points - see pages 5-27 and 5-22 Backs and Mounting Brackets - see pages 5-21 and 5-22 Accessories - see pages 5-23 and 5-24 +
