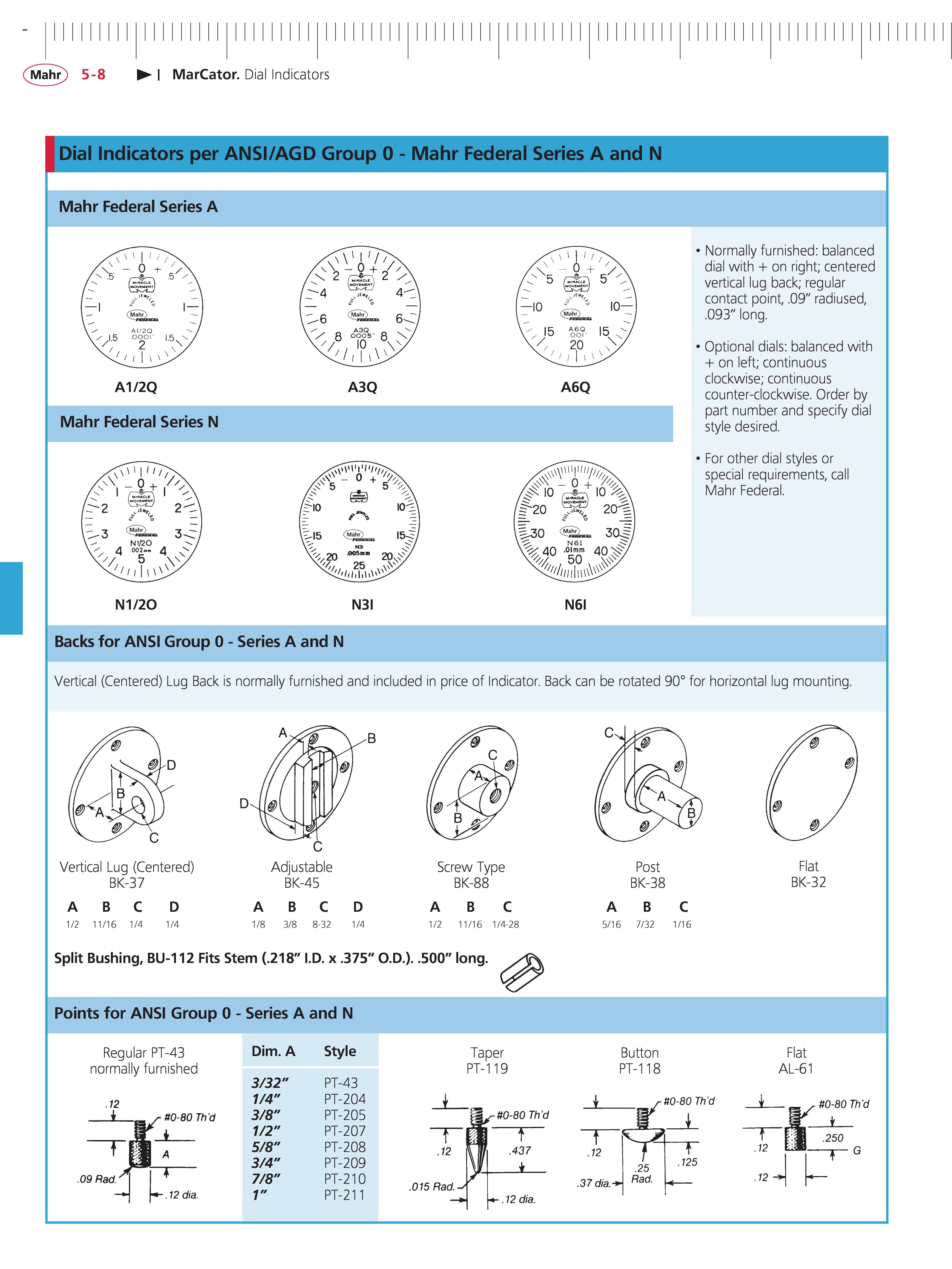

Mahr 5-8 MarCator Dial Indicators Dial Indicators per ANSI AGD Group 0 - Mahr Federal Series A and N Mahr Federal Series A A1 2Q Mahr Federal Series N A3Q N1 2o N3I A6Q 1 Normally furnished balanced dial with + on right; centered vertical lug back; regular contact point .09" radiused .093" long. 1 Optional dials balanced with + on left; continuous clockwise; continuous counter-clockwise. Order by part number and specify dial style desired. 1 For other dial styles or special requirements call Mahr Federal. N6I Backs for ANSI Group 0 - Series A and N Vertical (Centered) Lug Back is normally furnished and included in price of Indicator. Back can be rotated 90 for horizontal lug mounting. Vertical Lug (Centered) BK-37 A B C 1 2 11 16 1 4 D 1 4 A 1 8 c Adjustable BK-45 B C 3 8 8-32 D 1 4 Screw Type BK-88 A B C 1 2 11 16 1 4-28 Post BK-38 A B C 5 16 7 32 1 16 Flat BK-32 Split Bushing BU-112 Fits Stem (.218" I.D. x .375" Q.D.). .500" long. Points for ANSI Group 0 - Series A and N Regular PT-43 normally furnished Dim. A Style 3 32" PT-43 1 4" PT-204 3 8" PT-205 1 2" PT-207 5 8" PT-208 3 4" PT-209 7 8" PT-210 1" PT-211 Taper PT-119 Button PT-118 Flat AL-61
