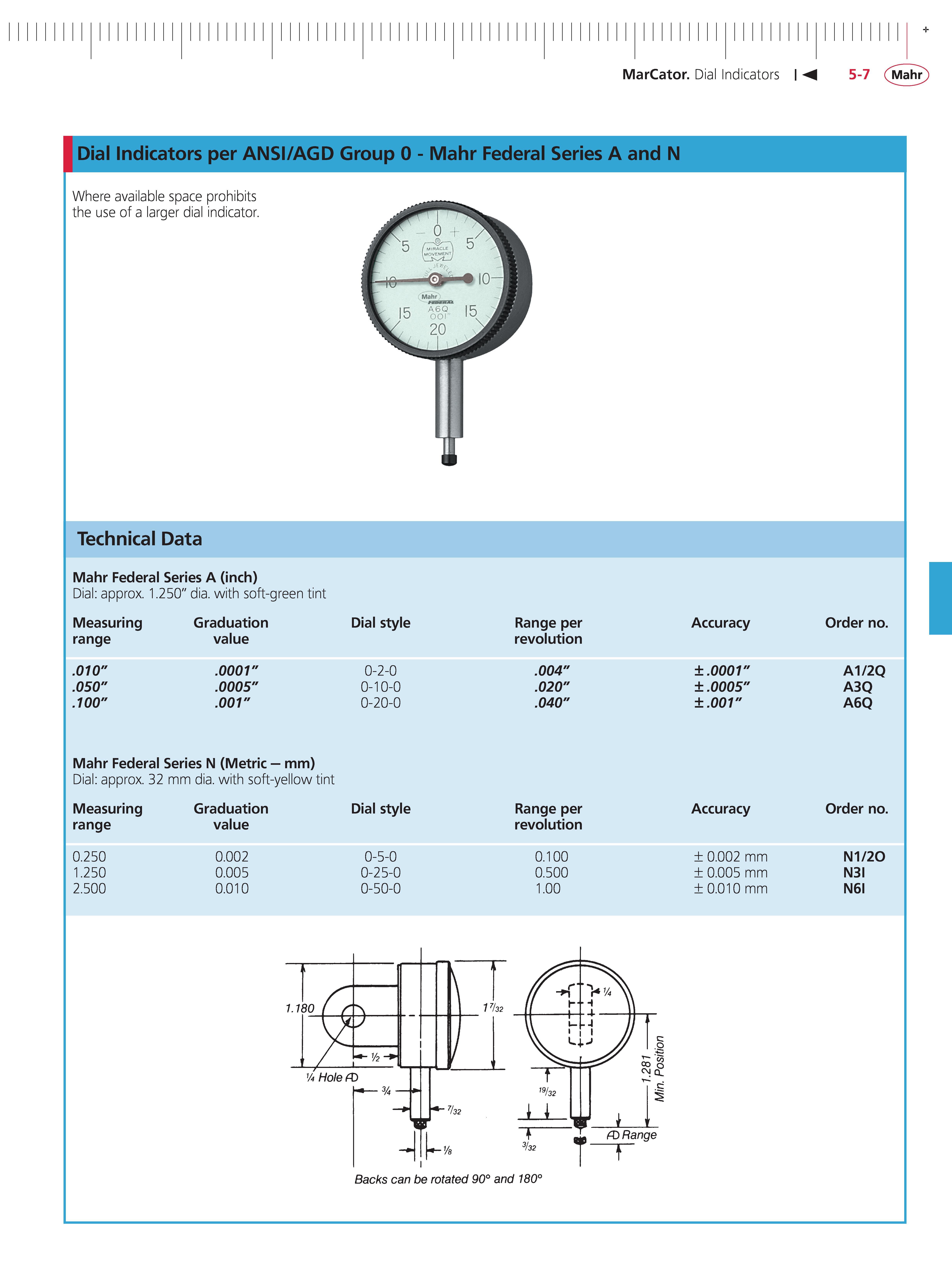

MarCator Dial Indicators M 5-7 Mahr Dial Indicators per ANSI AGD Group 0 - Mahr Federal Series A and N Where available space prohibits the use of a larger dial indicator. Technical Data Mahr Federal Series A (inch) Dial approx. 1.250" dia. with soft-green tint Measuring range .010" .050" .100" Graduation value .0001" .0005" .001" Dial style 0-2-0 0-10-0 0-20-0 Range per revolution .004" .020" .040" Accuracy .0001" .0005" .001" order no. A1 2Q A3Q A6Q Mahr Federal Series N (Metric mm) Dial approx. 32 mm dia. with soft-yellow tint Measuring range 0.250 1.250 2.500 Graduation value 0.002 0.005 0.010 Dial style 0-5-0 0-25-0 0-50-0 Range per revolution 0.1 00 0.500 1 .00 Accuracy 0.002 mm 0.005 mm 0.010 mm order no. N1 2o N3I N6I +
