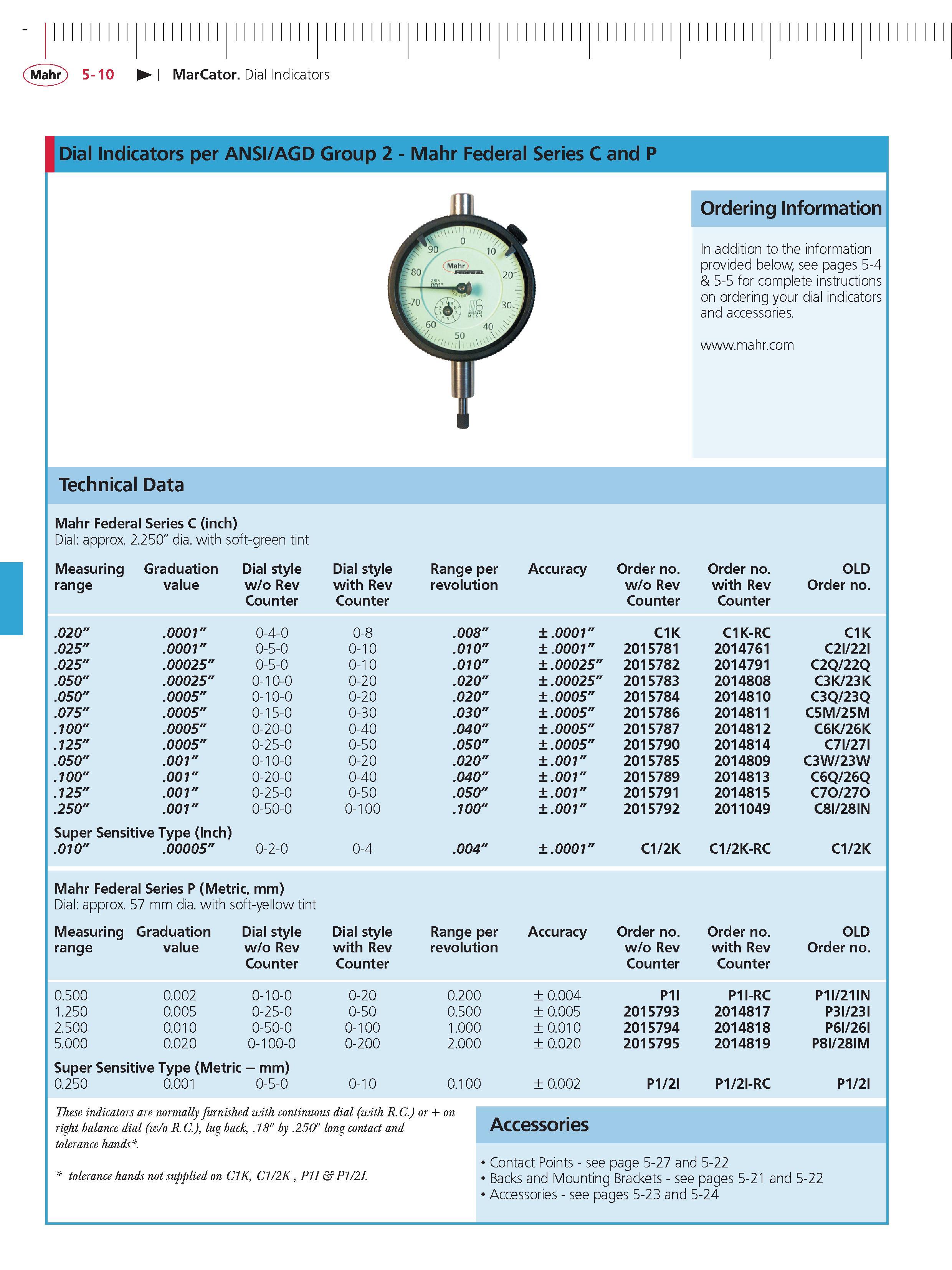

Mahr 5-10 MarCator Dial Indicators Dial Indicators per ANSI AGD Group 2 - Mahr Federal Series C and P Ordering Information In addition to the information provided below see pages 5-4 & 5-5 for complete instructions on ordering your dial indicators and accessories. Mahr Technical Data Mahr Federal Series C (inch) Dial approx. 2.250" dia. with soft-green tint Measuring Graduation Dial style Dial style Range per Accuracy order no. order no. old range value w o Rev with Rev revolution w o Rev with Rev order no. Counter Counter Counter Counter .020" .0001" 0-4-0 0-8 .008" .0001" C1K C1K-RC C1K .025" .0001" 0-5-0 0-10 .010" .0001" 2015781 2014761 C2I 22I .025" .00025" 0-5-0 0-1 0 .010" .00025" 2015782 2014791 C2Q 22Q .050" .00025" 0-10-0 0-20 .020" .00025" 2015783 2014808 C3K 23K .050" .0005" 0-10-0 0-20 .020" .0005" 2015784 2014810 C3Q 23Q .075" .0005" 0-15-0 0-30 .030" .0005" 2015786 2014811 C5M 25M .100" .0005" 0-20-0 0-40 .040" .0005" 2015787 2014812 C6K 26K .125" .0005" 0-25-0 0-50 .050" .0005" 2015790 2014814 C7I 27I .050" .001" 0-10-0 0-20 .020" .001" 2015785 2014809 C3w 23w .100" .001" 0-20-0 0-40 .040" .001" 2015789 2014813 C6Q 26Q .125" .001" 0-25-0 0-50 .050" .001" 2015791 2014815 C7o 27o .250" .001" 0-50-0 0-100 .100" .001" 2015792 2011049 C8I 28IN Super Sensitive Type (Inch) .010" .00005" 0-2-0 0-4 .004" .0001" C1 2K C1 2K-RC C1 2K Mahr Federal Series P (Metric mm) Dial approx. 57 mm dia. with soft-yellow tint Measuring Graduation Dial style Dial style Range per Accuracy order no. order no. old range value w o Rev with Rev revolution w o Rev with Rev order no. Counter Counter Counter Counter 0.500 0.002 0-10-0 0-20 0.200 0.004 P1I P1I-RC P1I 21IN 1.250 0.005 0-25-0 0-50 0.500 0.005 2015793 2014817 P3I 23I 2.500 0.010 0-50-0 0-100 1.000 0.010 2015794 2014818 P6I 26I 5.000 0.020 0-100-0 0-200 2.000 0.020 2015795 2014819 P8I 28IM Super Sensitive Type (Metric mm) 0.250 0.001 0-5-0 0-10 0.100 0.002 P1 2I P1 2I-RC P1 2I These indicators are normally furnished with continuous dial (with R.C.) or + on right balance dial (w o R.C.) lug back .18 by .250" long contact and Accessories tolerance hands . Contact Points - see page 5-27 and 5-22 tolerance hands not supplied on C1K C1 2K P1I & P1 2I. Backs and Mounting Brackets - see pages 5-21 and 5-22 Accessories - see pages 5-23 and 5-24
