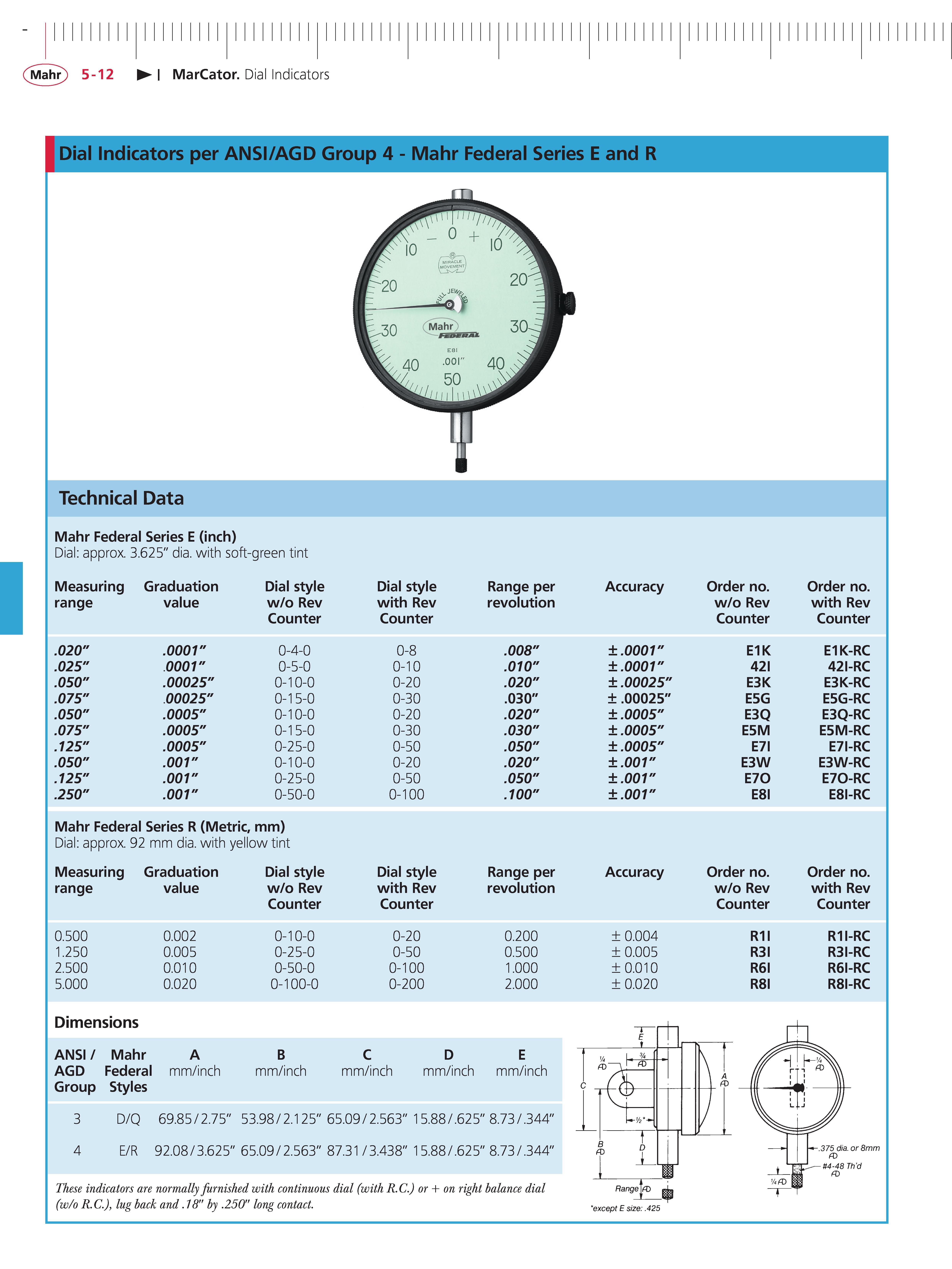

Mahr 5-12 MarCator Dial Indicators Dial Indicators per ANSI AGD Group 4 - Mahr Federal Series E and R Technical Data Mahr Federal Series E (inch) Dial approx. 3.625" dia. with soft-green tint Measuring Graduation Dial style Dial style Range per Accuracy Order no. order no. range value w o rev with Rev revolution w o Rev with Rev Counter Counter Counter Counter .020" .0001" 0-4-0 0-8 .008" .0001" E1K E1K-RC .025" .0001" 0-5-0 0-10 .010" .0001" 42I 42I-RC .050" .00025" 0-10-0 0-20 .020" .00025" E3K E3K-RC .075" .00025" 0-1 5-0 0-30 .030" .00025" E5G E5G-RC .050" .0005" 0-10-0 0-20 .020" .0005" E3Q E3Q-RC .075" .0005" 0-1 5-0 0-30 .030" .0005" E5M E5M-RC .125" .0005" 0-25-0 0-50 .050" .0005" E7I E7I-RC .050" .001" 0-10-0 0-20 .020" .001" E3W E3W-RC .125" .001" 0-25-0 0-50 .050" .001" E7O E7O-RC .250" .001" 0-50-0 0-100 .100" .001" E8I E8I-RC Mahr Federal Series R (Metric mm) Dial approx. 92 mm dia. with yellow tint Measuring Graduation Dial style Dial style Range per Accuracy order no. order no. range value w o Rev with Rev revolution w o Rev with Rev Counter Counter Counter Counter 0.500 0.002 0-10-0 0-20 0.200 0.004 R1I R1I-RC 1.250 0.005 0-25-0 0-50 0.500 0.005 R3I R3I-RC 2.500 0.010 0-50-0 0-100 1.000 0.010 R6I R6I-RC 5.000 0.020 0-100-0 0-200 2.000 0.020 R8I R8I-RC Dimensions ANSMahr A B C D E AGD Federal mm inch mm inch mm inch mm inch mm inch Group Styles 3 D Q 69.85 2.75" 53.98 2.125" 65.09 2.563" 15.88 .625" 8.73 .344" 4 E R 92.08 3.625" 65.09 2.563" 87.31 3.438" 5. 8 6 NJ 8.73 .344" These indicators are normally furnished with continuous dial (with R.C.) or + on right balance dial (w o R.C.) lug back and .18" by .250" long contact.
