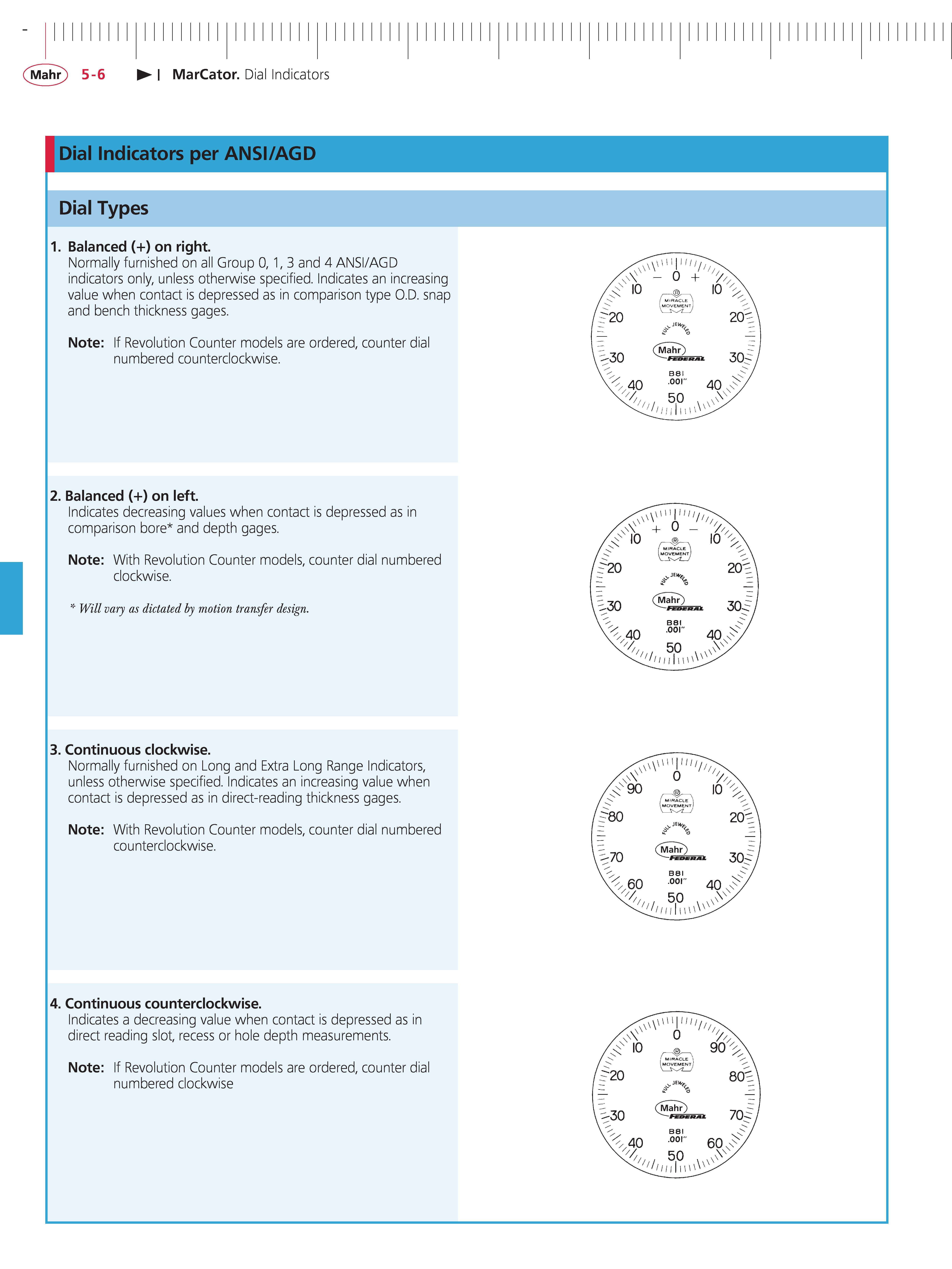

Mahr 5-6 MarCator Dial Indicators Dial Indicators per ANSI AGD Dial Types 1. Balanced (+) on right. Normally furnished on all Group 0 1 3 and 4 ANSI AGD indicators only unless otherwise specified. Indicates an increasing value when contact is depressed as in comparison type O.D. snap and bench thickness gages. Note If Revolution Counter models are ordered counter dial numbered counterclockwise. 2. Balanced (+) on left. Indicates decreasing values when contact is depressed as in comparison bore and depth gages. Note With Revolution Counter models counter dial numbered clockwise. Will vary as dictated by motion transfer design. 3. Continuous clockwise. Normally furnished on Long and Extra Long Range Indicators unless otherwise specified. Indicates an increasing value when contact is depressed as in direct-reading thickness gages. Note With Revolution Counter models counter dial numbered counterclockwise. 4. Continuous counterclockwise. Indicates a decreasing value when contact is depressed as in direct reading slot recess or hole depth measurements. Note If Revolution Counter models are ordered counter dial numbered clockwise
