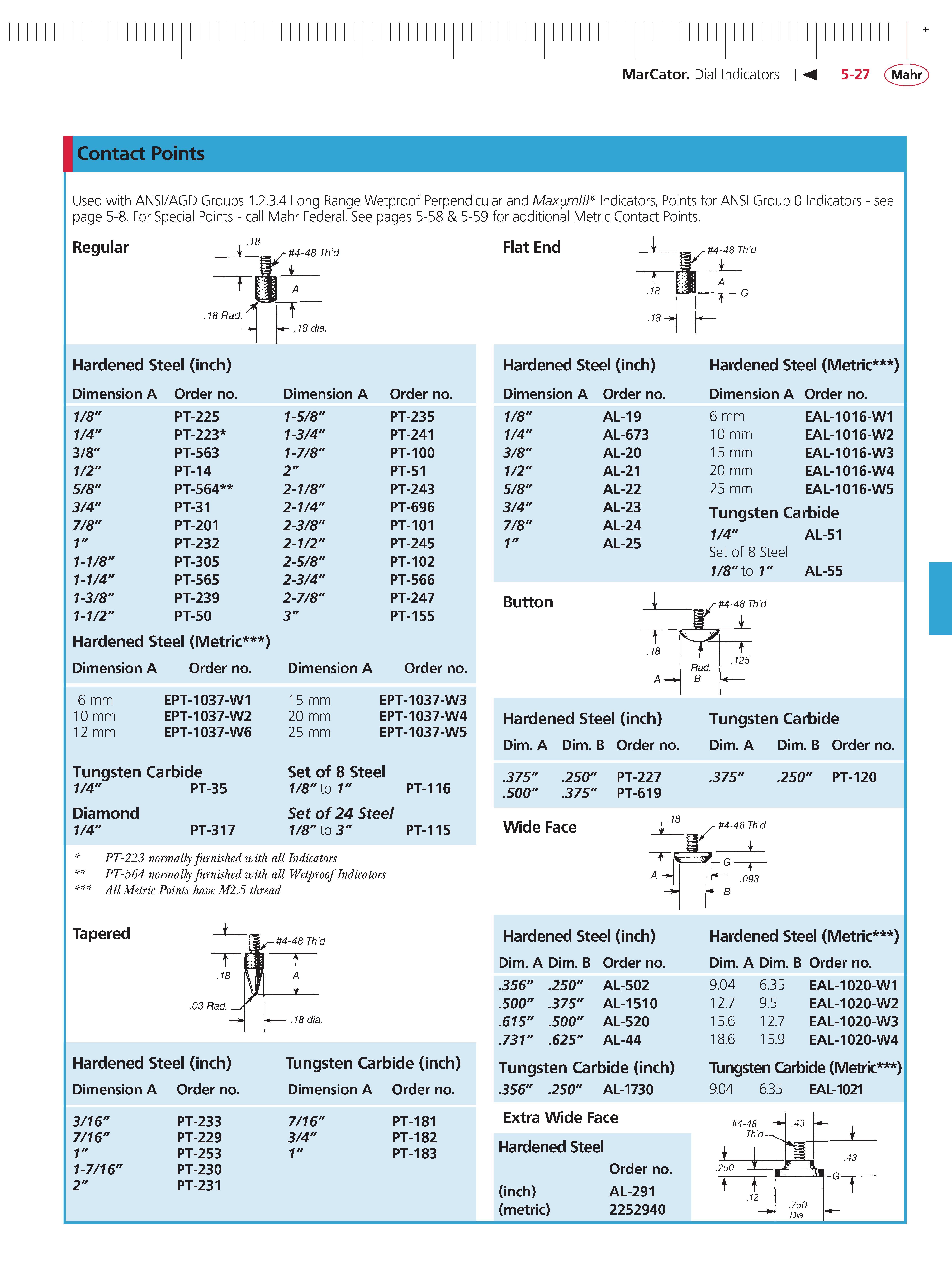

MarCator Dial Indicators 5-27 Mahr + Contact Points Used with ANSI AGD Groups 1.2.3.4 Long Range Wetproof Perpendicular and Maxymlll Indicators Points for ANSI Group 0 Indicators - see page 5-8. For Special Points - call Mahr Federal. See pages 5-58 & 5-59 for additional Metric Contact Points. Regular Hardened Steel (inch) Dimension A order no. Dimension A order no. 1 8" PT-225 1-5 8" PT-235 1 4" PT-223 1-3 4" PT-241 3 8" PT-563 1-7 8" PT-100 1 2" PT-14 2" PT-51 5 8" PT-564 2-1 8" PT-243 3 4" PT-31 2-1 4" PT-696 7 8" PT-201 2-3 8" PT-101 1" PT-232 2-1 2" PT-245 1-1 8" PT-305 2-5 8" PT-102 1-1 4" PT-565 2-3 4" PT-566 1-3 8" PT-239 2-7 8" PT-247 1-1 2" PT-50 3" PT-155 Hardened Steel (Metric ) Dimension A order no. Dimension A order no. 6 mm EPT-1037-W1 15 mm EPT-1037-W3 10 mm EPT-1037-W2 20 mm EPT-1037-W4 12 mm EPT-1037-W6 25 mm EPT-1037-W5 Tungsten Carbide Set of 8 Steel 1 4" PT-35 1 8" to 1" PT-116 Diamond Set of 24 Steel 1 4" PT-317 1 8" to 3" PT-115 PT-223 normally furnished with all Indicators PT-564 normally furnished with all Wetproof Indicators All Metric Points have M2.5 thread Tapered Hardened Steel (inch) Dimension A order no. Tungsten Carbide (inch) Dimension A order no. 3 16" PT-233 7 16" PT-229 1" PT-253 1-7 16" PT-230 2" PT-231 7 16" 3 4" 1" PT-181 PT-182 PT-183 Flat End Hardened Steel (inch) Hardened Steel (Metric ) Dimension A order no. Dimension A order no. 1 8" AL-19 6 mm EAL-1016-W1 1 4" AL-673 10 mm EAL-1016-W2 3 8" AL-20 15 mm EAL-1016-W3 1 2" AL-21 20 mm EAL-1016-W4 5 8" AL-22 25 mm EAL-1016-W5 3 4" AL-23 Tungsten Carbide 7 8" 1" AL-24 AL-25 1 4" Set of 8 Steel AL-51 1 8" to 1" AL-55 Button Hardened Steel (inch) Dim. A Dim. B order no. Tungsten Carbide Dim. A Dim. B order no. .375" .500" .250" .375" PT-227 PT-619 .375" .250" PT-120 wide Face Hardened Steel (inch) Dim. A Dim. B order no. .356" .250" AL-502 .500" .375" AL-1510 .615" .500" AL-520 .731" .625" AL-44 Tungsten Carbide (inch) .356" .250" AL-1730 Extra wide Face Hardened Steel order no. (inch) AL-291 (metric) 2252940 Hardened Steel (Metric ) Dim. A Dim. B order no. 9.04 6.35 EAL-1020-w1 12.7 9.5 15.6 12.7 18.6 15.9 EAL-1020-w2 EAL-1020-w3 EAL-1020-w4 Tungsten Carbide (Metric ) 9.04 6.35 EAL-1021
