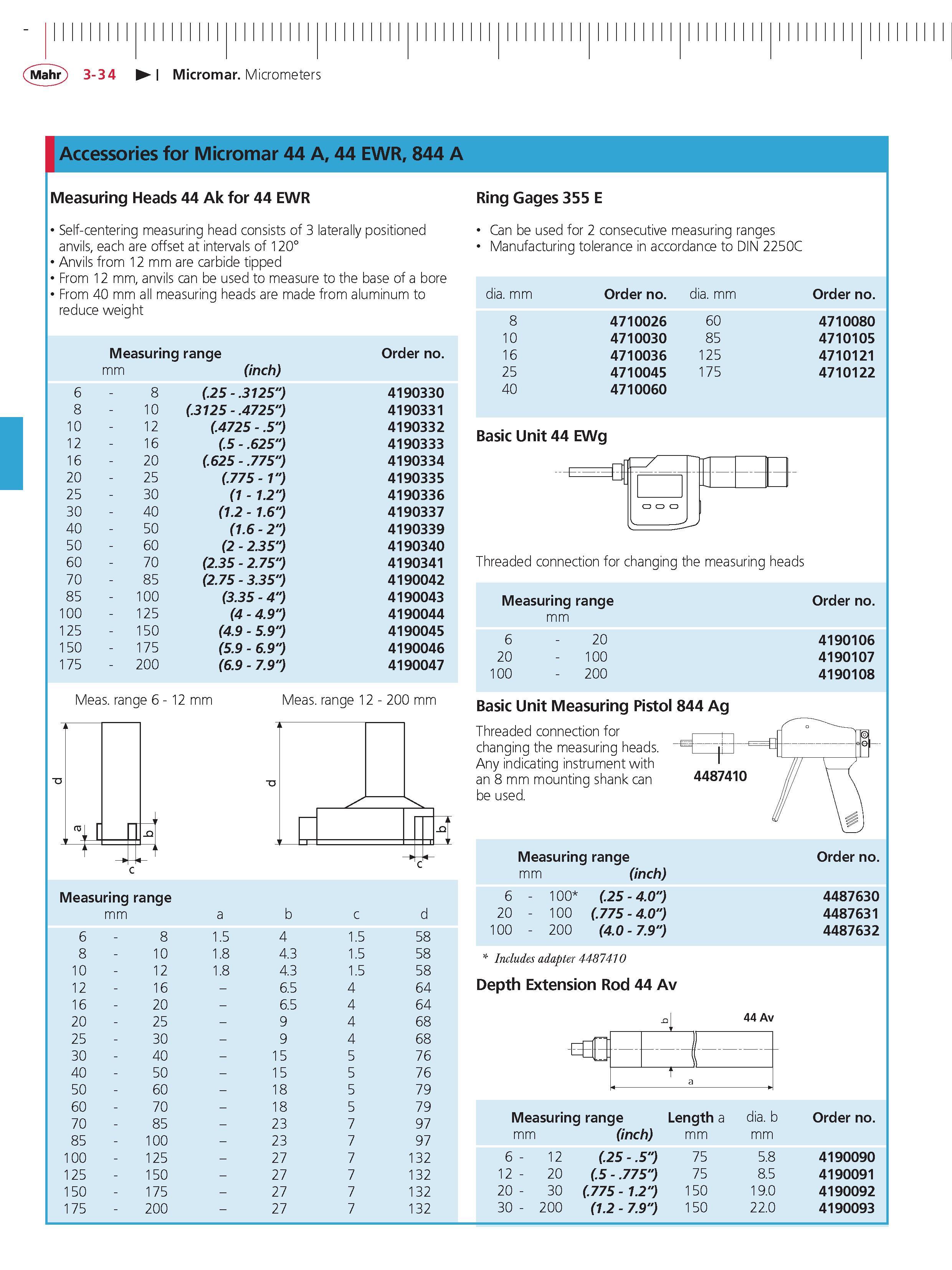

Mahr 3-34 Micromar Micrometers Accessories for Micromar 44 A 44 EWR 844 A Measuring Heads 44 Ak for 44 EWR Self-centering measuring head consists of 3 laterally positioned anvils each are offset at intervals of 120 Anvils from 12 mm are carbide tipped From 12 mm anvils can be used to measure to the base of a bore From 40 mm all measuring heads are made from aluminum to reduce weight Measuring range order no. mm (inch) 6 - 8 (.25 - .3125") 4190330 8 10 (.3125 - .4725") 4190331 10 12 (.4725 - .5") 4190332 12 16 (.5 - .625") 4190333 16 - 20 (.625 - .775") 4190334 20 - 25 (.775 -1") 4190335 25 - 30 (1 -1.2") 4190336 30 - 40 (1.2 -1.6") 4190337 40 - 50 (1.6 - 2") 4190339 50 - 60 (2 - 2.35") 4190340 60 - 70 (2.35 - 2.75") 4190341 70 - 85 (2.75 - 3.35") 4190042 85 - 100 (3.35 - 4") 4190043 100 - 125 (4 - 4.9") 4190044 125 - 150 (4.9 - 5.9") 4190045 150 - 175 (5.9 - 6.9") 4190046 175 - 200 (6.9 - 7.9") 4190047 Meas. range 6 - 12 mm Meas. range 12 - 200 mm n IR ring Gages 355 E Can be used for 2 consecutive measuring ranges Manufacturing tolerance in accordance to DIN 2250C dia. mm order no. dia. mm order no. 8 4710026 60 4710080 10 4710030 85 4710105 16 4710036 125 4710121 25 4710045 175 4710122 40 4710060 Basic Unit 44 ewg Threaded connection for changing the measuring heads Measuring range order no. mm 6 - 20 4190106 20 - 100 4190107 100 - 200 4190108 Basic Unit Measuring Pistol 844 Ag Threaded connection for changing the measuring heads. Any indicating instrument with an 8 mm mounting shank can be used. Measuring range order no. mm (inch) 6 - 100 (.25 - 4.0") 4487630 20 - 100 (.775 - 4.0") 4487631 100 - 200 (4.0 - 7.9") 4487632 Includes adapter 4487410 Depth Extension Rod 44 Av 44 Av n 1 u 1 t a Measuring range Length a dia. b order no. mm (inch) mm mm 6 - 12 ") .5 5 .2 75 5.8 4190090 12 - 20 (.5 - .775") 75 8.5 4190091 20 - 30 (.775 -1.2") 150 19.0 4190092 30 - 200 (1.2 - 7.9") 150 22.0 4190093 c
