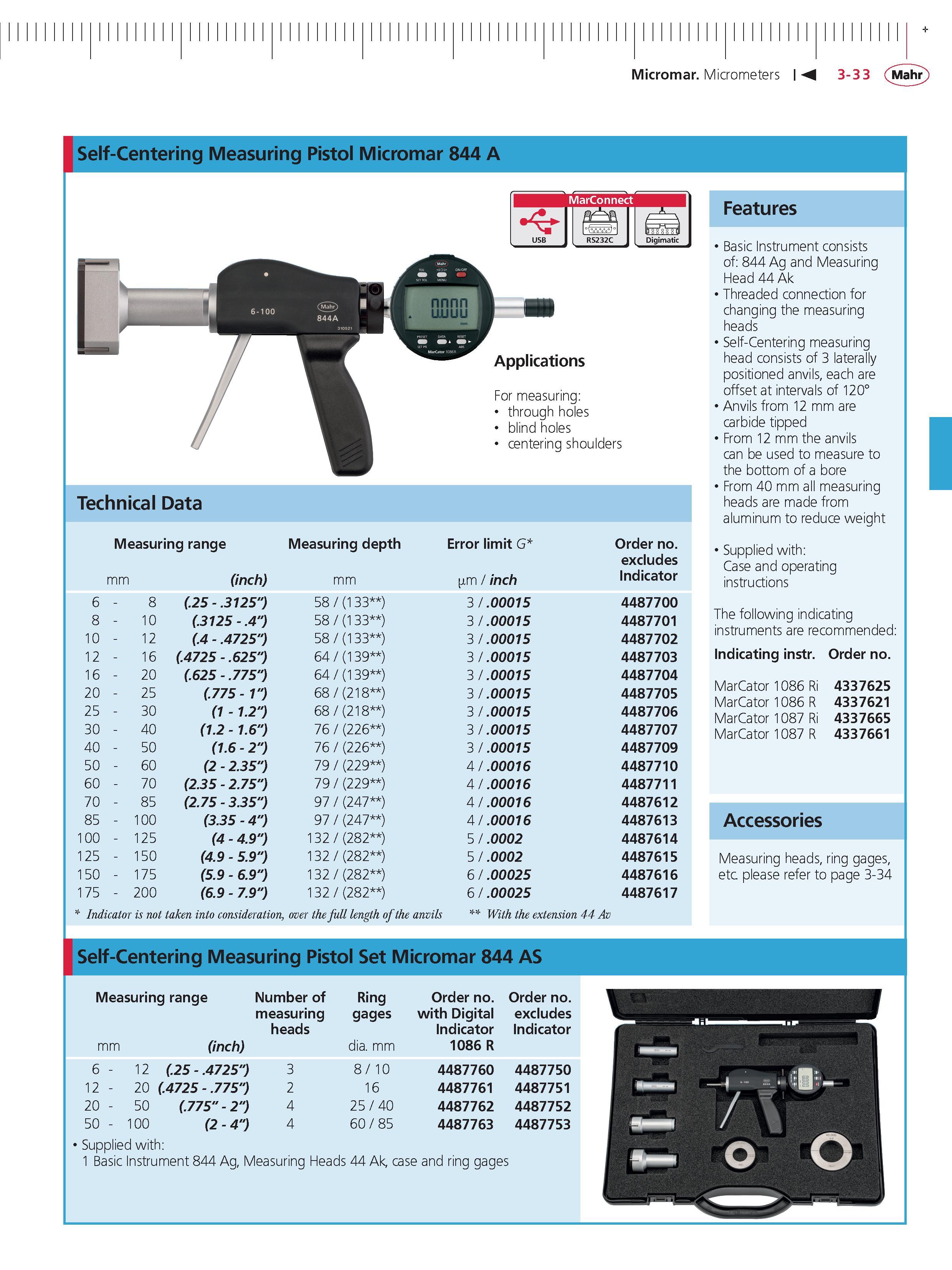

Micromar Micrometers M 3-33 Mahr Self-Centering Measuring Pistol Micromar 844 A For measuring through holes blind holes centering shoulders Features Technical Data Measuring range Measuring depth Error limit G order no. excludes mm (inch) mm m inch indicator 6 - 8 (.25 - .3125") 58 (133 ) 3 .00015 4487700 8 - 10 (.3125 - .4") 58 (133 ) 3 .00015 4487701 10 - 12 (.4 - .4725") 58 (133 ) 3 .00015 4487702 12 - 16 (.4725 - .625") 64 (139 ) 3 .00015 4487703 16 - 20 (.625 - .775") 64 (139 ) 3 .00015 4487704 20 - 25 (.775 -1") 68 (218 ) 3 .00015 4487705 25 - 30 (1 -1.2") 68 (218 ) 3 .00015 4487706 30 - 40 (1.2 -1.6") 76 (226 ) 3 .00015 4487707 40 - 50 (1.6 - 2") 76 (226 ) 3 .00015 4487709 50 - 60 (2 - 2.35") 79 (229 ) 4 .00016 4487710 60 - 70 (2.35 - 2.75") 79 (229 ) 4 .00016 4487711 70 - 85 (2.75 - 3.35") 97 (247 ) 4 .00016 4487612 85 - 100 (3.35 - 4") 97 (247 ) 4 .00016 4487613 100 - 125 (4 - 4.9") 132 (282 ) 5 .0002 4487614 125 - 150 (4.9 - 5.9") 132 (282 ) 5 .0002 4487615 150 - 175 (5.9 - 6.9") 132 (282 ) 6 .00025 4487616 175 - 200 (6.9 - 7.9") 132 (282 ) 6 .00025 4487617 Indicator is not taken into consideration over the full length of the anvils With the extension 44 Av Basic Instrument consists of 844 Ag and Measuring Head 44 Ak Threaded connection for changing the measuring heads Self-Centering measuring head consists of 3 laterally positioned anvils each are offset at intervals of 120 Anvils from 12 mm are carbide tipped From 12 mm the anvils can be used to measure to the bottom of a bore From 40 mm all measuring heads are made from aluminum to reduce weight Supplied with Case and operating instructions The following indicating instruments are recommended indicating instr. order no. MarCator 1086 Ri MarCator 1086 R MarCator 1087 Ri MarCator 1087 R 4337625 4337621 4337665 4337661 Accessories Measuring heads ring gages etc. please refer to page 3-34 Self-Centering Measuring Pistol Set Micromar 844 AS Measuring range Number of Ring order no. order no. measuring gages with Digital excludes heads indicator indicator mm (inch) dia. mm 1086 R 6 - 12 (.25 - .4725") 3 8 10 4487760 4487750 12 - 20 (.4725 - .775") 2 16 4487761 4487751 20 - 50 (.775" - 2") 4 25 40 4487762 4487752 50 - 100 (2 - 4") 4 60 85 4487763 4487753 1 Basic Instrument 844 Ag Measuring Heads 44 Ak case and ring gages
