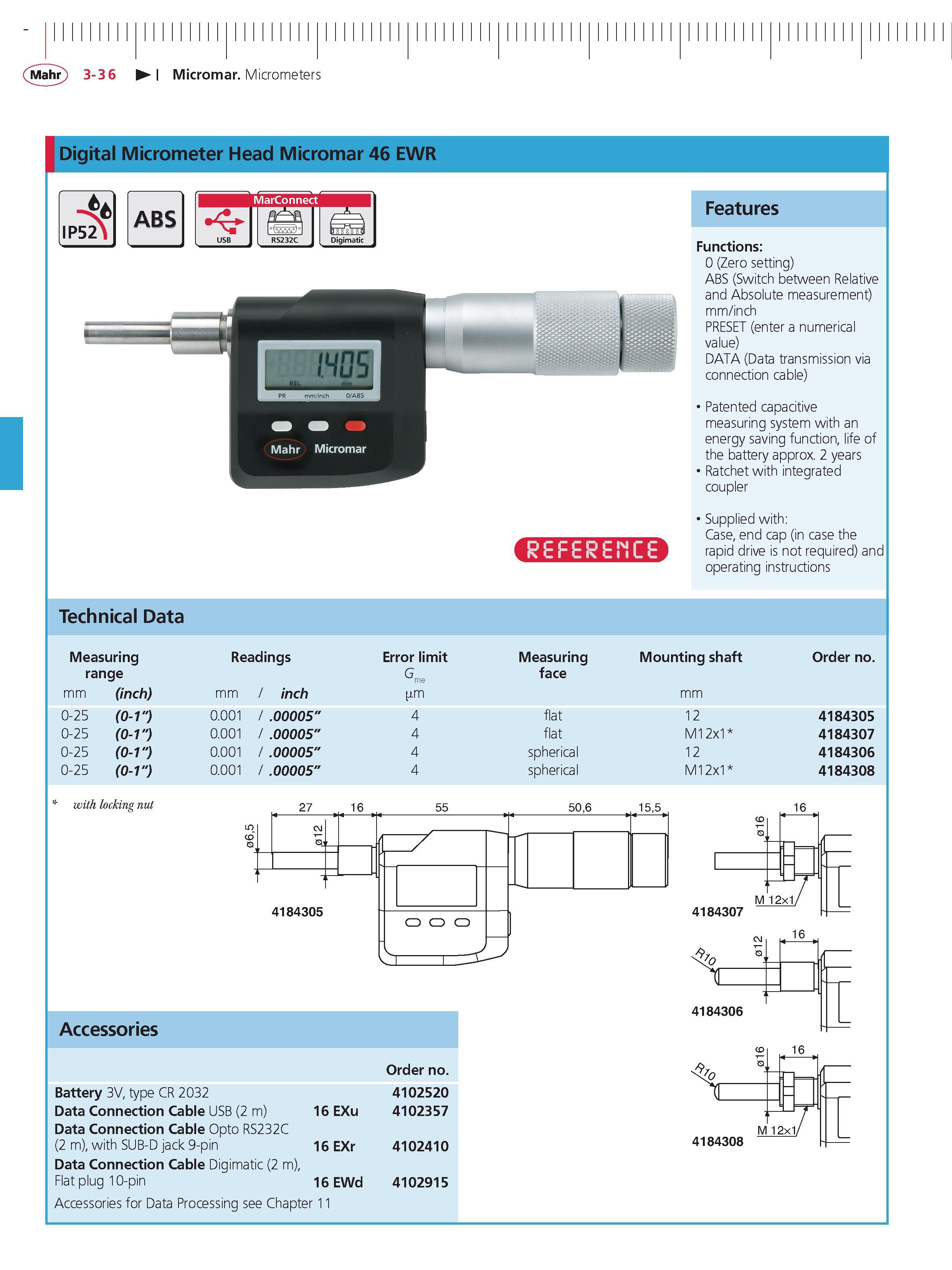

Mahr 3-3 6 Micromar Micrometers Digital Micrometer Head Micromar 46 EWR IP52 ABS MarConnect Digimatic Features Functions 0 (Zero setting) ABS (Switch between Relative and Absolute measurement) mm inch PRESET (enter a numerical value) DATA (Data transmission via connection cable) Patented capacitive measuring system with an energy saving function life of the battery approx. 2 years Ratchet with integrated coupler Supplied with Case end cap (in case the rapid drive is not required) and operating instructions Technical Data Measuring range readings mm 0-25 0-25 0-25 0-25 (inch) (0-1") (0-1") (0-1") (0-1") mm 0.001 0.001 0.001 0.001 with locking nut inch .00005" .00005" .00005" .00005" 27 16 error limit G me m 4 4 4 4 55 4184305 O CD O Measuring face flat flat spherical spherical 506 Mounting shaft mm 12 M12x1 12 M12x1 .155. order no. 4184305 4184307 4184306 4184308 16 4184307 M12x1 2 16 Accessories Battery 3V type CR 2032 Data Connection Cable USB (2 m) Data Connection Cable Opto RS232C (2 m) with SUB-D jack 9-pin Data Connection Cable Digimatic (2 m) Flat plug 10-pin 16 EXu 16 eXr order no. 4102520 4102357 4102410 4184306 16 4184308 M 12x1 16 ewd 4102915 Accessories for Data Processing see Chapter 11
