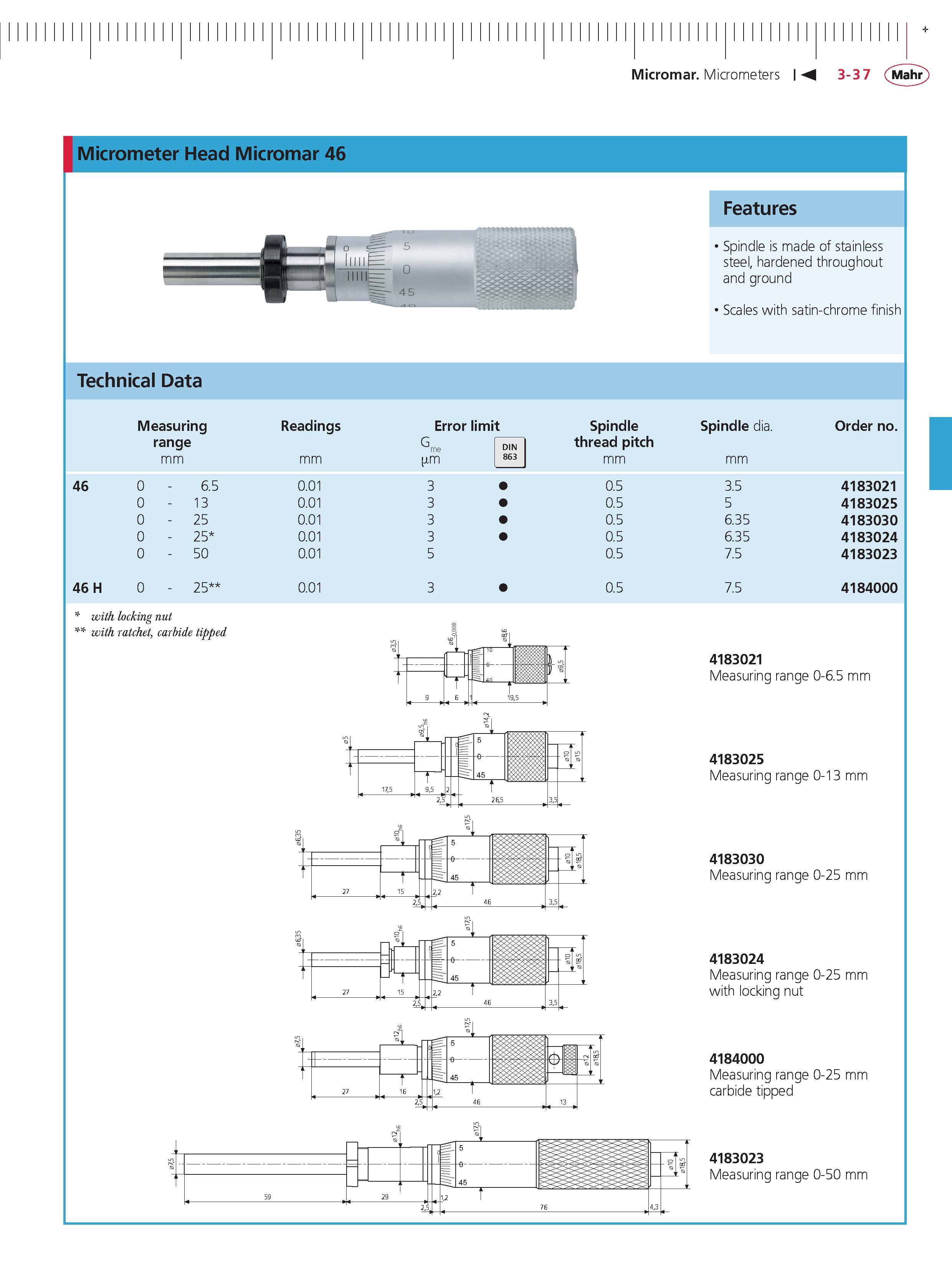

Micromar Micrometers M 3-3 7 Mahr Micrometer Head Micromar 46 Features Spindle is made of stainless steel hardened throughout and ground Scales with satin-chrome finish Technical Data Measuring Readings Error limit Spindle Spindle dia. order no. range G me DIN thread pitch mm mm m 863 mm mm 46 0 - 6.5 0.01 3 0.5 3.5 4183021 0 - 13 0.01 3 0.5 5 4183025 0 - 25 0.01 3 0.5 6.35 4183030 0 - 25 0.01 3 0.5 6.35 4183024 0 - 50 0.01 5 0.5 7.5 4183023 46 H 0 - 25 0.01 3 0.5 7.5 4184000 with locking nut with ratchet carbide tipped 1 10 T 195 It 4183021 Measuring range 0-6.5 mm 4183025 Measuring range 0-13 mm 4183030 Measuring range 0-25 mm 4183024 Measuring range 0-25 mm with locking nut 4184000 Measuring range 0-25 mm carbide tipped 4183023 Measuring range 0-50 mm + 17.5 15 46 15 46 27 46 13 59
