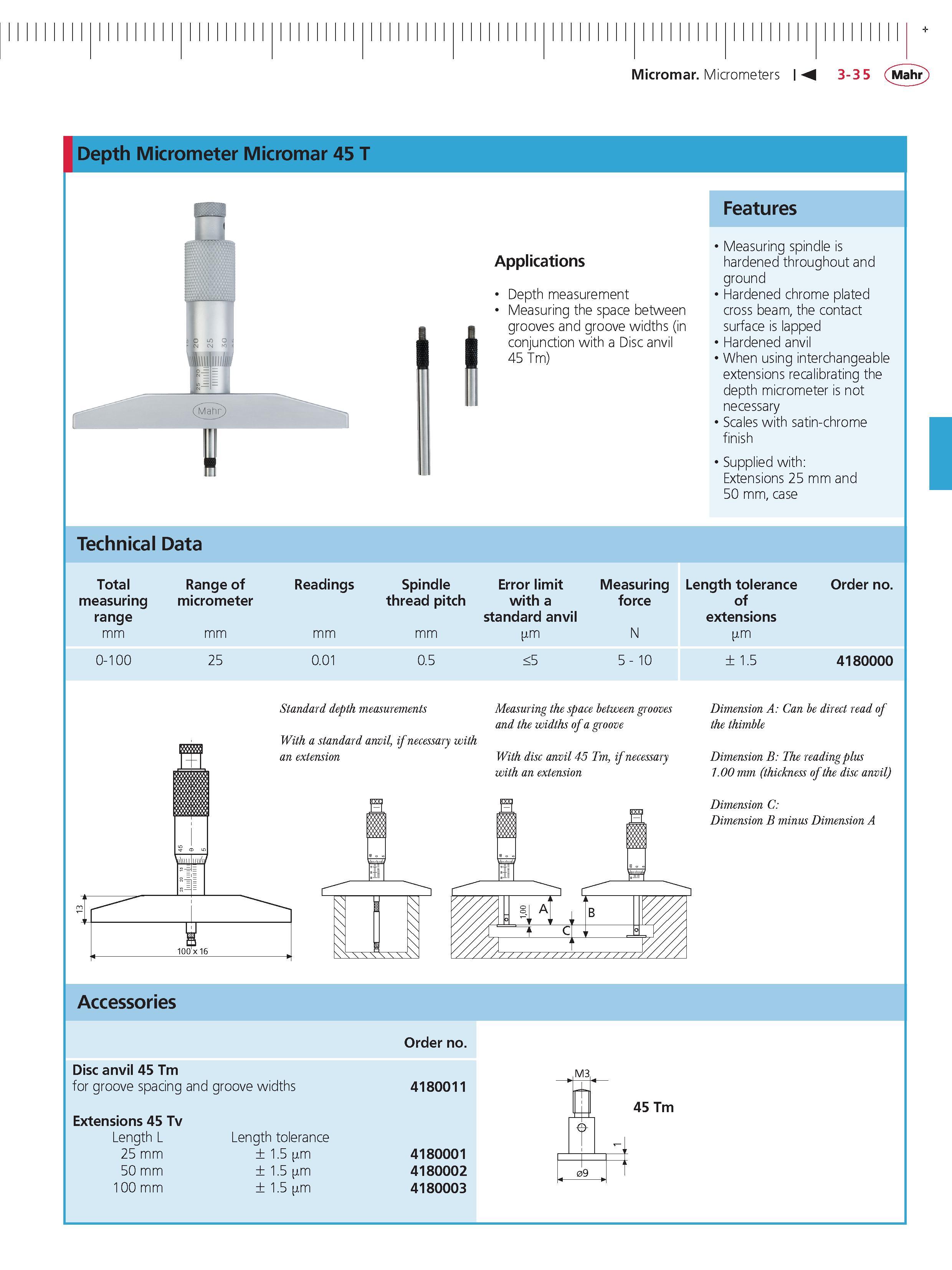

Micromar Micrometers M 3-3 5 Mahr Depth Micrometer Micromar 45 T Features Applications Depth measurement Measuring the space between grooves and groove widths (in conjunction with a Disc anvil 45 Tm) Measuring spindle is hardened throughout and ground Hardened chrome plated cross beam the contact surface is lapped Hardened anvil When using interchangeable extensions recalibrating the depth micrometer is not necessary Scales with satin-chrome finish Supplied with Extensions 25 mm and 50 mm case Technical Data Total Range of measuring micrometer range mm mm Readings Spindle thread pitch 0-100 25 mm 0.01 mm 0.5 Error limit with a standard anvil m 5 Measuring force 5 - 10 Length tolerance of extensions m 1.5 order no. 4180000 Standard depth measurements With a standard anvil if necessary with an extension Measuring the space between grooves and the widths of a groove With disc anvil 45 Tm if necessary with an extension Dimension A Can be direct read of the thimble Dimension B The reading plus 1.00 mm (thickness of the disc anvil) Dimension C Dimension B minus Dimension A f Accessories Disc anvil 45 Tm for groove spacing and groove widths Extensions 45 Tv Length L 25 mm 50 mm 100 mm Length tolerance 1.5 m 1.5 m 1.5 m order no. 4180011 4180001 4180002 4180003 M3 45 Tm 09 N
