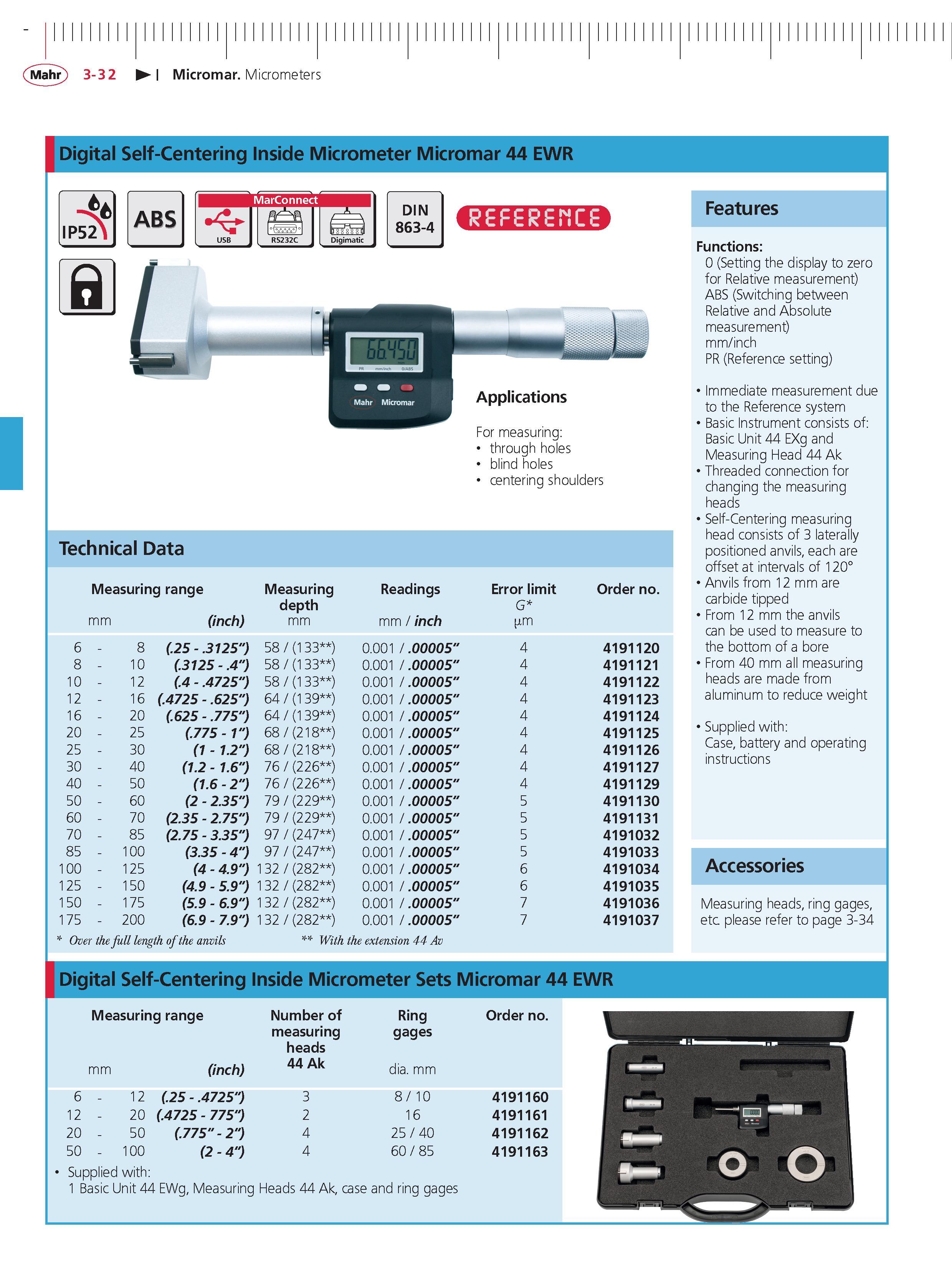

Mahr 3-3 2 Micromar Micrometers Digital Self-Centering inside Micrometer Micromar 44 EWR For measuring through holes blind holes centering shoulders Technical Data Measuring range Measuring Readings Error limit order no. depth G mm (inch) mm mm inch m 6 - 8 (.25 - .3125") 58 (133 ) 0.001 .00005" 4 4191120 8 - 10 (.3125 - .4") 58 (133 ) 0.001 .00005" 4 4191121 10 - 12 (.4 - .4725") 58 (133 ) 0.001 .00005" 4 4191122 12 - 16 (.4725 - .625") 64 (139 ) 0.001 .00005" 4 4191123 16 - 20 (.625 - .775") 64 (139 ) 0.001 .00005" 4 4191124 20 - 25 (.775 -1") 68 (218 ) 0.001 .00005" 4 4191125 25 - 30 (1 -1.2") 68 (218 ) 0.001 .00005" 4 4191126 30 - 40 (1.2 -1.6") 76 (226 ) 0.001 .00005" 4 4191127 40 - 50 (1.6 - 2") 76 (226 ) 0.001 .00005" 4 4191129 50 - 60 (2 - 2.35") 79 (229 ) 0.001 .00005" 5 4191130 60 - 70 (2.35 - 2.75") 79 (229 ) 0.001 .00005" 5 4191131 70 - 85 (2.75 - 3.35") 97 (247 ) 0.001 .00005" 5 4191032 85 - 100 (3.35 - 4") 97 (247 ) 0.001 .00005" 5 4191033 100 - 125 (4 - 4.9") 132 (282 ) 0.001 .00005" 6 4191034 125 - 150 (4.9 - 5.9") 132 (282 ) 0.001 .00005" 6 4191035 150 - 175 (5.9 - 6.9") 132 (282 ) 0.001 .00005" 7 4191036 175 - 200 (6.9 - 7.9") 132 (282 ) 0.001 .00005" 7 4191037 Over the full length of the anvils With the extension 44 Av Features Functions 0 (Setting the display to zero for Relative measurement) ABS (Switching between Relative and Absolute measurement) mm inch PR (Reference setting) Immediate measurement due to the Reference system Basic Instrument consists of Basic Unit 44 EXg and Measuring Head 44 Ak Threaded connection for changing the measuring heads Self-Centering measuring head consists of 3 laterally positioned anvils each are offset at intervals of 120 Anvils from 12 mm are carbide tipped From 12 mm the anvils can be used to measure to the bottom of a bore From 40 mm all measuring heads are made from aluminum to reduce weight Supplied with Case battery and operating instructions Accessories Measuring heads ring gages etc. please refer to page 3-34 Digital Self-Centering inside Micrometer Sets Micromar 44 ewr Measuring range Number of measuring heads Ring gages order no. mm (inch) 44 Ak dia. mm 6 - 12 (.25 - .4725") 3 8 10 4191160 12 - 20 (.4725 - 775") 2 16 4191161 20 - 50 (.775" - 2") 4 25 40 4191162 50 - 100 (2 - 4") 4 60 85 4191163 Supplied with 1 Basic Unit 44 EWg Measuring Heads 44 Ak case and ring gages
