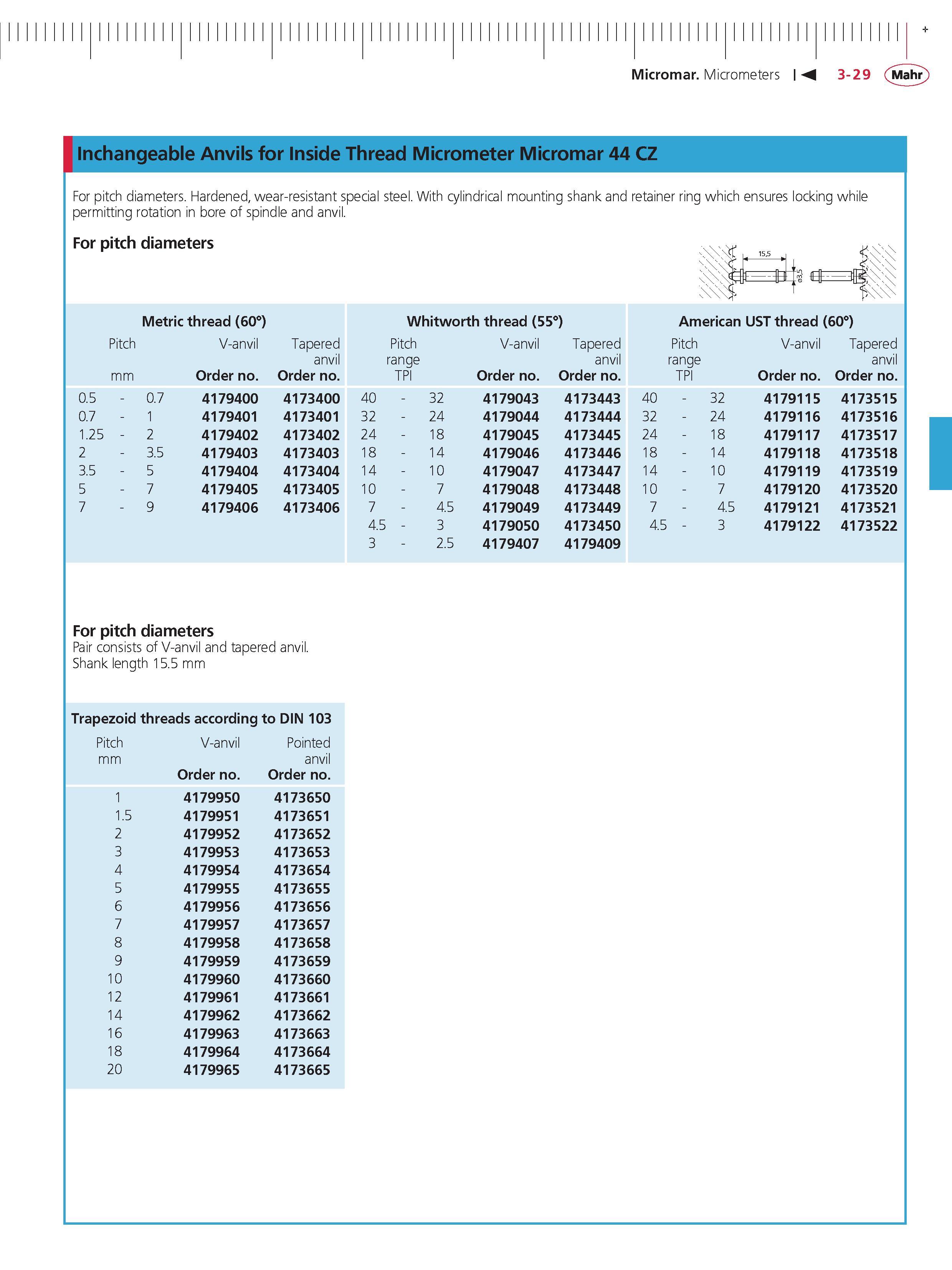

Micromar Micrometers M 3-29 Mahr + inchangeable Anvils for inside Thread Micrometer Micromar 44 CZ For pitch diameters. Hardened wear-resistant special steel. With cylindrical mounting shank and retainer ring which ensures locking while permitting rotation in bore of spindle and anvil. For pitch diameters Metric thread (60) whitworth thread (55) . 15-5 . American UST thread (60) Pitch mm V-anvil order no. Tapered anvil order no. Pitch range TPI V-anvil order no. Tapered anvil order no. Pitch range TPI V-anvil order no. Tapered anvil order no. 0.5 - 0.7 4179400 4173400 40 - 32 4179043 4173443 40 - 32 4179115 4173515 0.7 - 1 4179401 4173401 32 - 24 4179044 4173444 32 - 24 4179116 4173516 1.25 - 2 4179402 4173402 24 - 18 4179045 4173445 24 - 18 4179117 4173517 2 - 3.5 4179403 4173403 18 - 14 4179046 4173446 18 - 14 4179118 4173518 3.5 - 5 4179404 4173404 14 - 10 4179047 4173447 14 - 10 4179119 4173519 5 - 7 4179405 4173405 10 - 7 4179048 4173448 10 - 7 4179120 4173520 7 - 9 4179406 4173406 7 - 4.5 4179049 4173449 7 - 4.5 4179121 4173521 4.5 - 3 4179050 4173450 4.5 - 3 4179122 4173522 3 - 2.5 4179407 4179409 For pitch diameters Pair consists of V-anvil and tapered anvil. Shank length 15.5 mm Trapezoid threads according to DIN 103 Pitch V-anvil Pointed mm anvil order no. order no. 1 4179950 4173650 1.5 4179951 4173651 2 4179952 4173652 3 4179953 4173653 4 4179954 4173654 5 4179955 4173655 6 4179956 4173656 7 4179957 4173657 8 4179958 4173658 9 4179959 4173659 10 4179960 4173660 12 4179961 4173661 14 4179962 4173662 16 4179963 4173663 18 4179964 4173664 20 4179965 4173665
