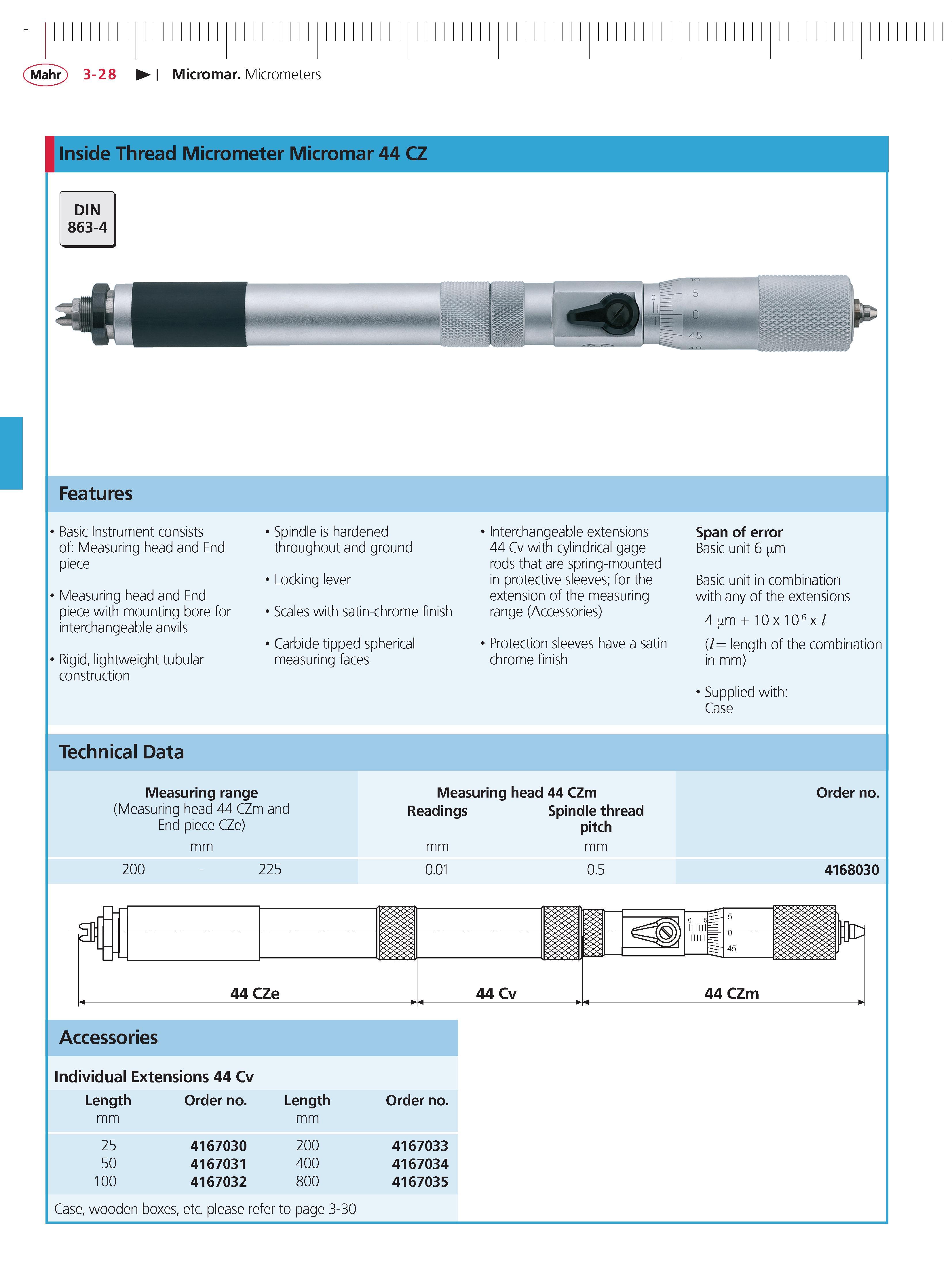

Mahr 3-28 Micromar Micrometers Inside Thread Micrometer Micromar 44 CZ DIN 863-4 Features Basic Instrument consists of Measuring head and End piece Measuring head and End piece with mounting bore for interchangeable anvils Rigid lightweight tubular construction Spindle is hardened throughout and ground Locking lever Scales with satin-chrome finish Carbide tipped spherical measuring faces Interchangeable extensions 44 Cv with cylindrical gage rods that are spring-mounted in protective sleeves; for the extension of the measuring range (Accessories) Protection sleeves have a satin chrome finish Span of error Basic unit 6 m Basic unit in combination with any of the extensions 4 m + 10 x 10-6 x (l length of the combination in mm) Supplied with Case Technical Data Measuring range (Measuring head 44 CZm and End piece CZe) Measuring head 44 CZm Readings Spindle thread pitch mm 200 225 mm 0.01 mm 0.5 order no. 4168030 Accessories individual Extensions 44 Cv Length mm order no. Length mm order no. 25 4167030 200 4167033 50 4167031 400 4167034 100 4167032 800 4167035 Case wooden boxes etc. please refer to page 3-30
