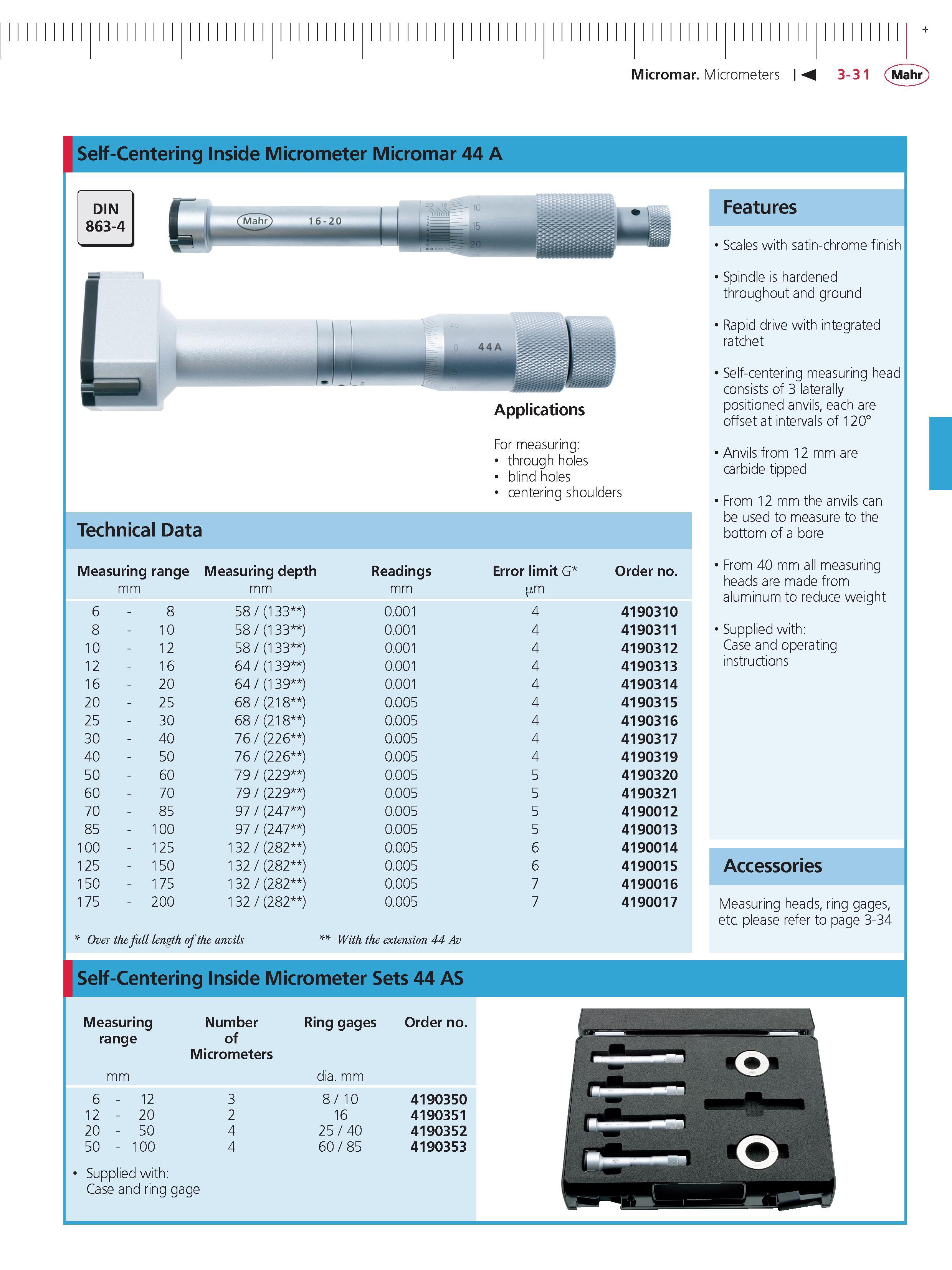

Micromar Micrometers M 3-31 Mahr + Self-Centering inside Micrometer Micromar 44 A DIN f 863-4 16-20 Applications For measuring through holes blind holes centering shoulders Technical Data Measuring range Measuring depth Readings Error limit G order no. mm mm mm m 6 - 8 58 (133 ) 0.001 4 4190310 8 - 10 58 (133 ) 0.001 4 4190311 10 - 12 58 (133 ) 0.001 4 4190312 12 - 16 64 (139 ) 0.001 4 4190313 16 - 20 64 (139 ) 0.001 4 4190314 20 - 25 68 (218 ) 0.005 4 4190315 25 - 30 68 (218 ) 0.005 4 4190316 30 - 40 76 (226 ) 0.005 4 4190317 40 - 50 76 (226 ) 0.005 4 4190319 50 - 60 79 (229 ) 0.005 5 4190320 60 - 70 79 (229 ) 0.005 5 4190321 70 - 85 97 (247 ) 0.005 5 4190012 85 - 100 97 (247 ) 0.005 5 4190013 100 - 125 132 (282 ) 0.005 6 4190014 125 - 150 132 (282 ) 0.005 6 4190015 150 - 175 132 (282 ) 0.005 7 4190016 175 - 200 132 (282 ) 0.005 7 4190017 Over the full length of the anvils With the extension 44 Av Features Scales with satin-chrome finish Spindle is hardened throughout and ground Rapid drive with integrated ratchet Self-centering measuring head consists of 3 laterally positioned anvils each are offset at intervals of 120 Anvils from 12 mm are carbide tipped From 12 mm the anvils can be used to measure to the bottom of a bore From 40 mm all measuring heads are made from aluminum to reduce weight Supplied with Case and operating instructions Accessories Measuring heads ring gages etc. please refer to page 3-34 Self-Centering inside Micrometer Sets 44 AS Measuring range Number of Micrometers mm Ring gages order no. dia. mm 6 - 12 3 8 10 4190350 12 - 20 2 16 4190351 20 - 50 4 25 40 4190352 50 - 100 4 60 85 4190353 Supplied with Case and ring gage
