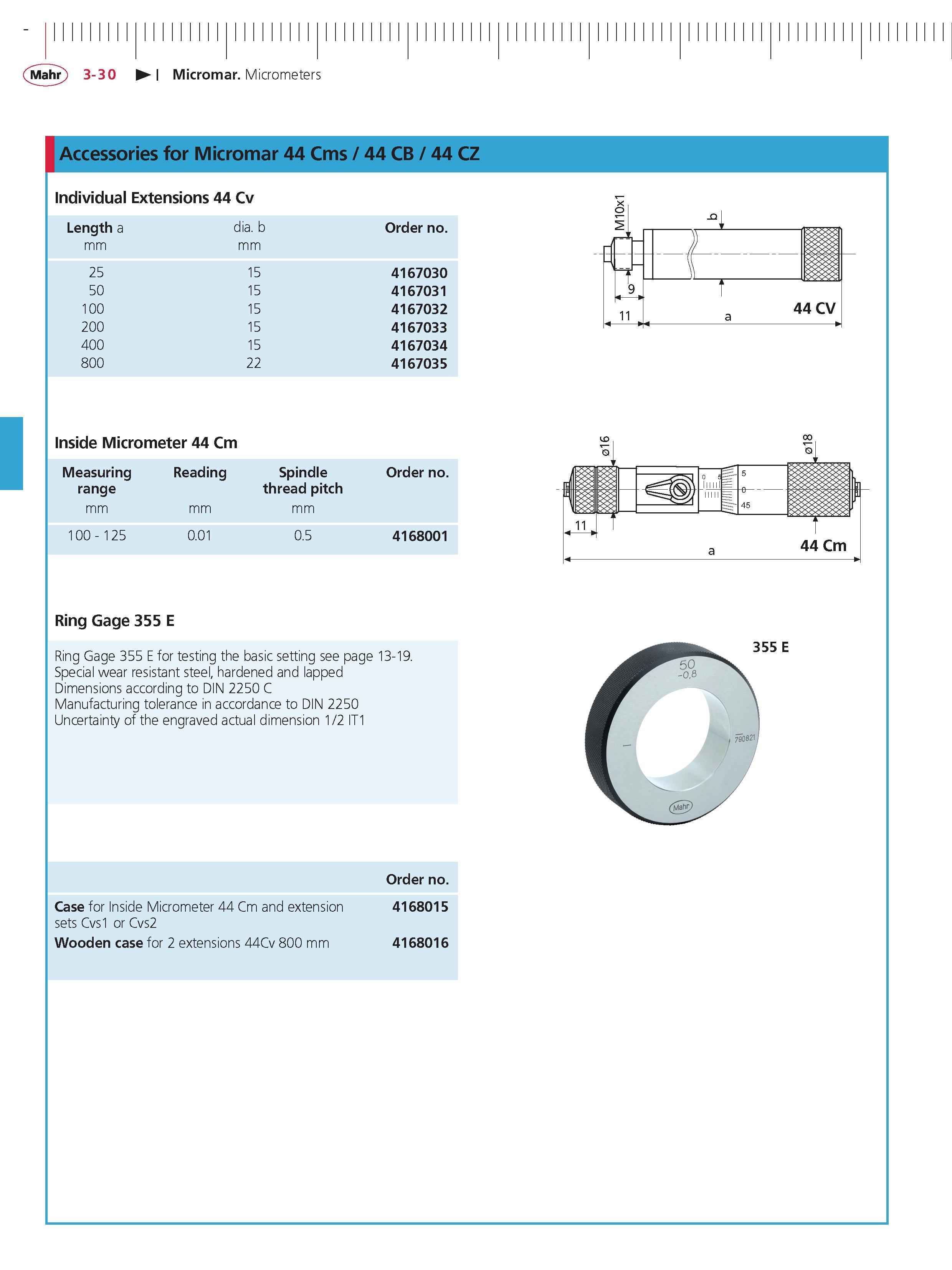

Mahr 3-30 Micromar Micrometers Accessories for Micromar 44 Cms 44 CB 44 CZ Measuring reading Spindle order no. range thread pitch mm mm mm 100 - 125 0.01 0.5 4168001 individual Extensions 44 Cv Length a dia. b order no. mm mm 25 15 4167030 50 15 4167031 100 15 4167032 200 15 4167033 400 15 4167034 800 22 4167035 inside Micrometer 44 Cm Ring Gage 355 E Ring Gage 355 E for testing the basic setting see page 13-19. Special wear resistant steel hardened and lapped Dimensions according to DIN 2250 C Manufacturing tolerance in accordance to DIN 2250 Uncertainty of the engraved actual dimension 1 2 IT1 Case for Inside Micrometer 44 Cm and extension sets Cvs1 or Cvs2 wooden case for 2 extensions 44Cv 800 mm order no. 4168015 4168016
