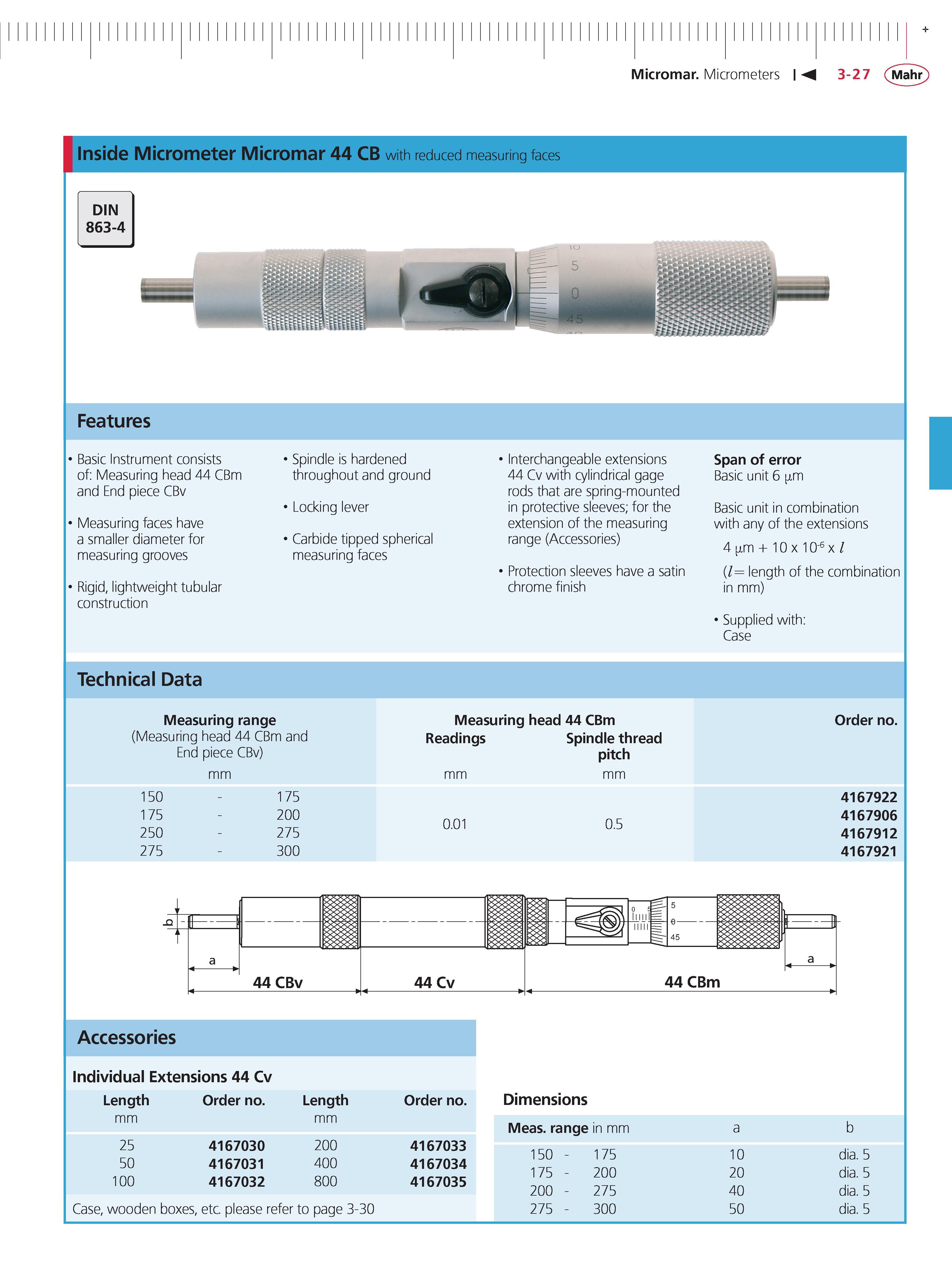

Micromar Micrometers 3-27 Mahr + Inside Micrometer Micromar 44 CB with reduced measuring faces Features Basic Instrument consists of Measuring head 44 CBm and End piece CBv Measuring faces have a smaller diameter for measuring grooves Rigid lightweight tubular construction Spindle is hardened throughout and ground Locking lever Carbide tipped spherical measuring faces Interchangeable extensions 44 Cv with cylindrical gage rods that are spring-mounted in protective sleeves; for the extension of the measuring range (Accessories) Protection sleeves have a satin chrome finish Span of error Basic unit 6 m Basic unit in combination with any of the extensions 4 m + 10 x 10-6 x (l length of the combination in mm) Supplied with Case Technical Data Measuring range (Measuring head 44 CBm and End piece CBv) Measuring head 44 CBm Readings Spindle thread pitch mm 150 175 250 275 175 200 275 300 mm 0.01 mm 0.5 order no. 4167922 4167906 4167912 4167921 Accessories individual Extensions 44 Cv Length mm order no. Length mm order no. 25 4167030 200 4167033 50 4167031 400 4167034 100 4167032 800 4167035 Dimensions Meas. range in mm Case wooden boxes etc. please refer to page 3-30 150 -175 -200 -275 - 175 200 275 300 10 20 40 50 b dia. 5 dia. 5 dia. 5 dia. 5 a
