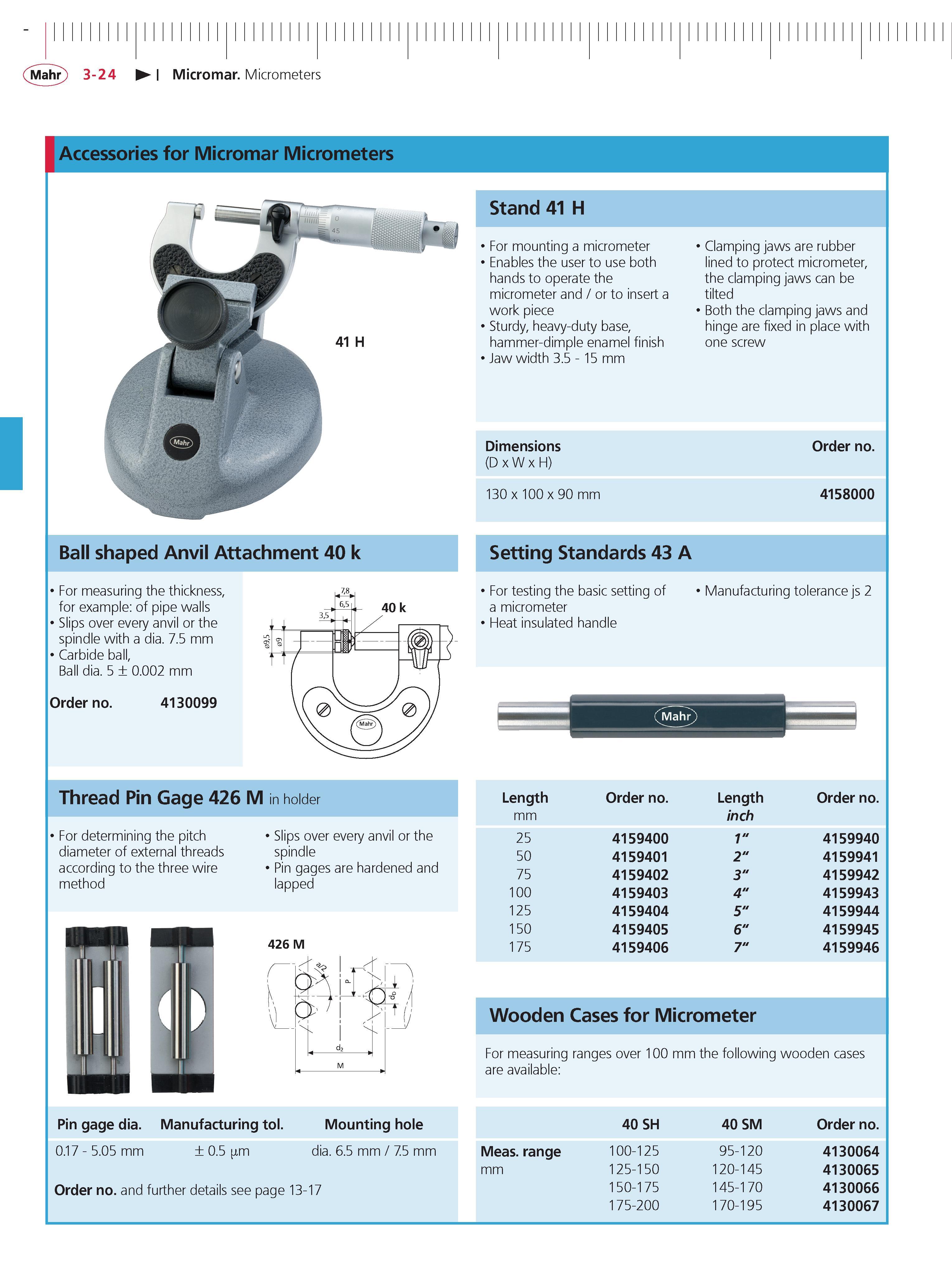

Mahr 3-24 Micromar Micrometers Accessories for Micromar Micrometers Order no. 4130099 Thread Pin Gage 426 M in holder For determining the pitch diameter of external threads according to the three wire method Slips over every anvil or the spindle Pin gages are hardened and lapped 426 M Pin gage dia. Manufacturing tol. Mounting hole 0.17 - 5.05 mm 0.5 m dia. 6.5 mm 7.5 mm order no. and further details see page 13-17 Stand 41 H For mounting a micrometer Enables the user to use both hands to operate the micrometer and or to insert a work piece Sturdy heavy-duty base hammer-dimple enamel finish Jaw width 3.5 - 15 mm Dimensions (D x W x H) 130 x 100 x 90 mm Clamping jaws are rubber lined to protect micrometer the clamping jaws can be tilted Both the clamping jaws and hinge are fixed in place with one screw order no. 4158000 Ball shaped Anvil Attachment 40 k For measuring the thickness for example of pipe walls Slips over every anvil or the spindle with a dia. 7.5 mm Carbide ball Ball dia. 5 0.002 mm Setting Standards 43 A Length order no. Length order no. mm inch 25 4159400 1" 4159940 50 4159401 2" 4159941 75 4159402 3" 4159942 100 4159403 4" 4159943 125 4159404 5" 4159944 150 4159405 6" 4159945 175 4159406 7" 4159946 wooden Cases for Micrometer For measuring ranges over 100 mm the following wooden cases are available Meas. range mm 40 SH 100-125 125-150 150-175 175-200 40 SM 95-120 120-145 145-170 170-195 order no. 4130064 4130065 4130066 4130067
