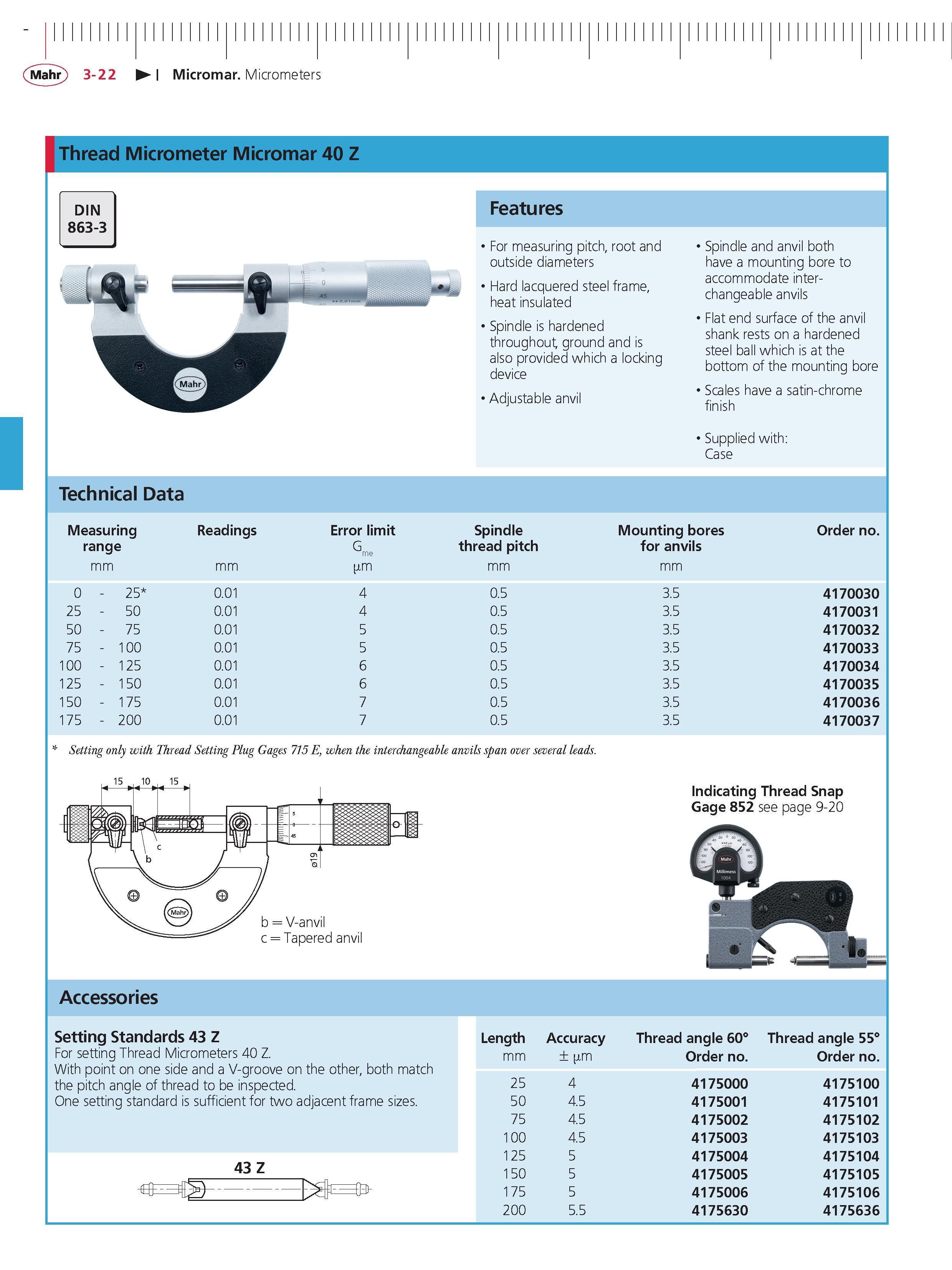

Mahr 3-22 Micromar Micrometers Thread Micrometer Micromar 40 Z Features For measuring pitch root and outside diameters Hard lacquered steel frame heat insulated Spindle is hardened throughout ground and is also provided which a locking device Adjustable anvil Spindle and anvil both have a mounting bore to accommodate interchangeable anvils Flat end surface of the anvil shank rests on a hardened steel ball which is at the bottom of the mounting bore Scales have a satin-chrome finish Supplied with Case Technical Data Measuring range Readings Error limit G me Spindle thread pitch Mounting bores for anvils order no. mm mm m mm mm 0 - 25 0.01 4 0.5 3.5 4170030 25 - 50 0.01 4 0.5 3.5 4170031 50 - 75 0.01 5 0.5 3.5 4170032 75 - 100 0.01 5 0.5 3.5 4170033 100 - 125 0.01 6 0.5 3.5 4170034 125 - 150 0.01 6 0.5 3.5 4170035 150 - 175 0.01 7 0.5 3.5 4170036 175 - 200 0.01 7 0.5 3.5 4170037 Setting only with Thread Setting Plug Gages 715 E when the interchangeable anvils span over several leads. 15 10 15 indicating Thread Snap Gage 852 see page 9-20 b V-anvil c Tapered anvil Accessories Setting Standards 43 Z For setting Thread Micrometers 40 Z. With point on one side and a V-groove on the other both match the pitch angle of thread to be inspected. One setting standard is sufficient for two adjacent frame sizes. 43 Z Length Accuracy Thread angle 60 Thread angle 55 mm m order no. order no. 25 4 4175000 4175100 50 4.5 4175001 4175101 75 4.5 4175002 4175102 100 4.5 4175003 4175103 125 5 4175004 4175104 150 5 4175005 4175105 175 5 4175006 4175106 200 5.5 4175630 4175636
