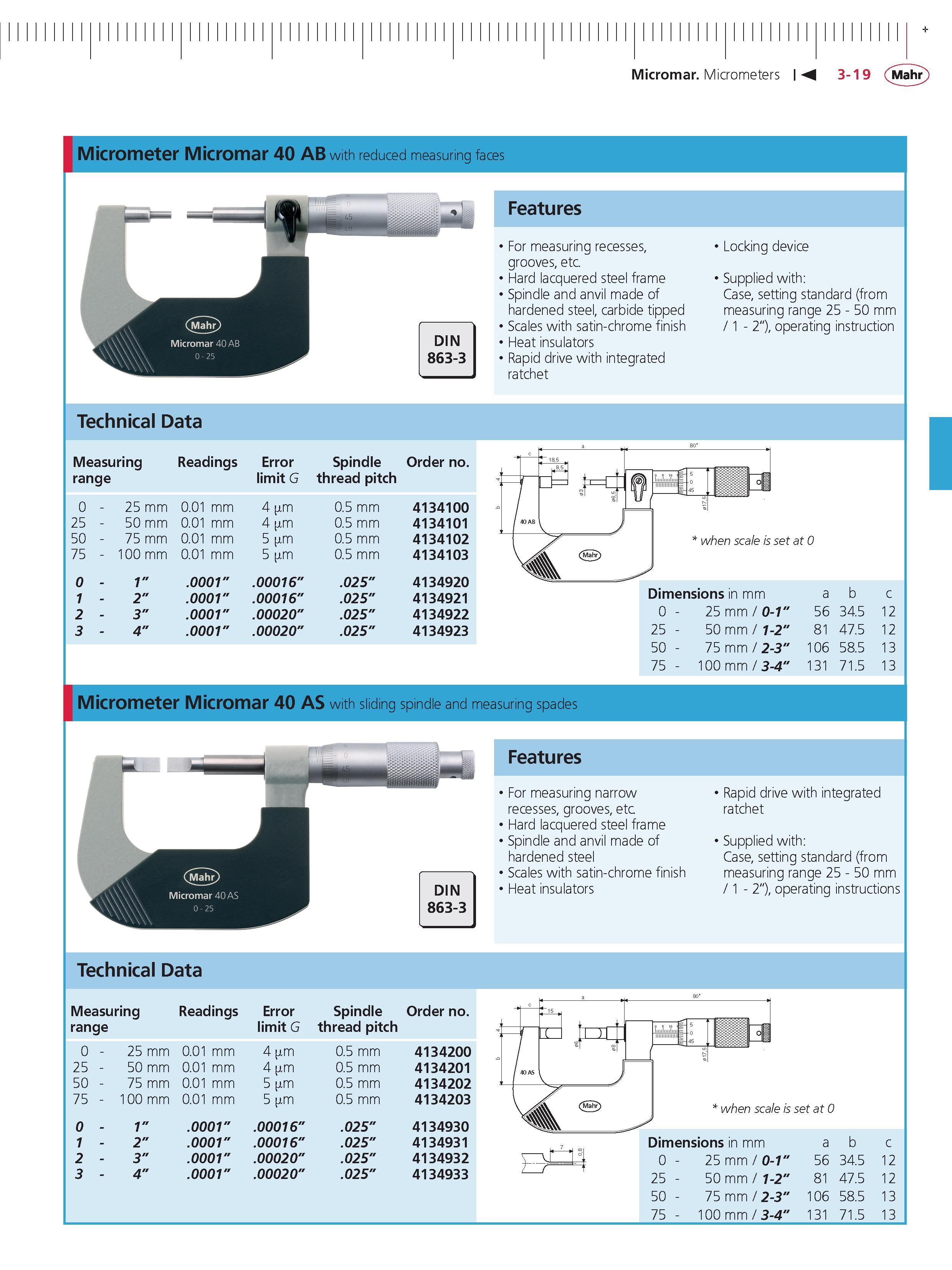

Micromar Micrometers 3-19 Mahr Micrometer Micromar 40 AB with reduced measuring faces Features For measuring recesses grooves etc. Hard lacquered steel frame Spindle and anvil made of hardened steel carbide tipped Scales with satin-chrome finish Heat insulators Rapid drive with integrated ratchet Locking device Supplied with Case setting standard (from measuring range 25 - 50 mm 1 - 2") operating instruction Technical Data Measuring Readings Error Spindle order no. range limit G thread pitch 0 - 25 mm 0.01 mm 4 m 0.5 mm 4134100 25 - 50 mm 0.01 mm 4 m 0.5 mm 4134101 50 - 75 mm 0.01 mm 5 m 0.5 mm 4134102 75 - 100 mm 0.01 mm 5 m 0.5 mm 4134103 0 - 1" .0001" .00016" .025" 4134920 1 - 2" .0001" .00016" .025" 4134921 2 - 3" .0001" .00020" .025" 4134922 3 - 4" .0001" .00020" .025" 4134923 when scale is set at 0 Dimensions in mm a b c 0- 25 mm 0-1" 56 34.5 12 25 - 50 mm 1-2" 81 47.5 12 50 - 75 mm 2-3" 106 58.5 13 75 - 100 mm 3-4" 131 71.5 13 Micrometer Micromar 40 AS with sliding spindle and measuring spades Features 1 Mahr Micromar 40 AS 0-25 For measuring narrow recesses grooves etc. Hard lacquered steel frame Spindle and anvil made of hardened steel Scales with satin-chrome finish Heat insulators Rapid drive with integrated ratchet Supplied with Case setting standard (from measuring range 25 - 50 mm 1 - 2") operating instructions Technical Data Measuring Readings Error Spindle order no. range limit G thread pitch 0- 25 mm 0.01 mm 4 m 0.5 mm 4134200 25 - 50 mm 0.01 mm 4 m 0.5 mm 4134201 50 - 75 mm 0.01 mm 5 m 0.5 mm 4134202 75 - 100 mm 0.01 mm 5 m 0.5 mm 4134203 0- 1" .0001" .00016" .025" 4134930 1- 2" .0001" .00016" .025" 4134931 2- 3" .0001" .00020" .025" 4134932 3- 4" .0001" .00020" .025" 4134933 when scale is set at 0 Dimensions in mm 0 - 25 mm 0-1" 25 - 50 mm 1-2" 50 - 75 mm 2-3" 75 - 100 mm 3-4" a b c 56 34.5 12 81 47.5 12 106 58.5 13 131 71.5 13 +
