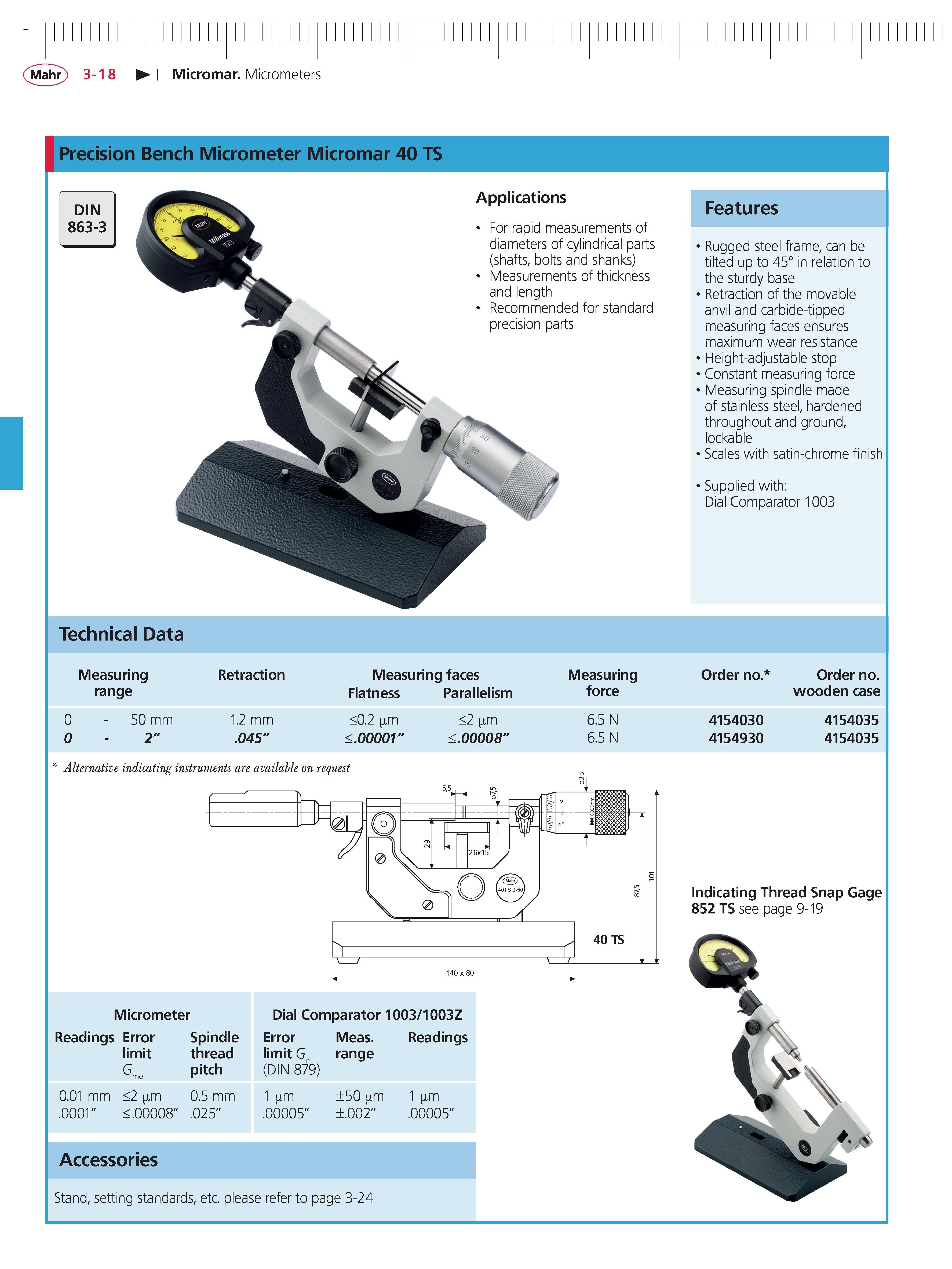

Mahr 3-18 Micromar Micrometers Precision Bench Micrometer Micromar 40 TS DIN 863-3 Applications For rapid measurements of diameters of cylindrical parts (shafts bolts and shanks) Measurements of thickness and length Recommended for standard precision parts Features Rugged steel frame can be tilted up to 45 in relation to the sturdy base Retraction of the movable anvil and carbide-tipped measuring faces ensures maximum wear resistance Height-adjustable stop Constant measuring force Measuring spindle made of stainless steel hardened throughout and ground lockable Scales with satin-chrome finish Supplied with Dial Comparator 1003 Technical Data Measuring range 50 mm 2" Retraction 1.2 mm .045" Measuring faces Flatness Parallelism 0.2 m .00001 2 m .00008" Measuring force 6.5 N 6.5 N order no. 4154030 4154930 order no. wooden case 4154035 4154035 Alternative indicating instruments are available on request Indicating Thread Snap Gage 852 TS see page 9-19 Micrometer Dial Comparator 1003 1003Z readings Error Spindle Error Meas. readings limit thread limit Ge range Gme pitch (DIN 879) 0.01 mm m 2 0.5 mm 1 m 50 m 1 m .0001" .00008" .025" .00005" .002" .00005" Accessories Stand setting standards etc. please refer to page 3-24
