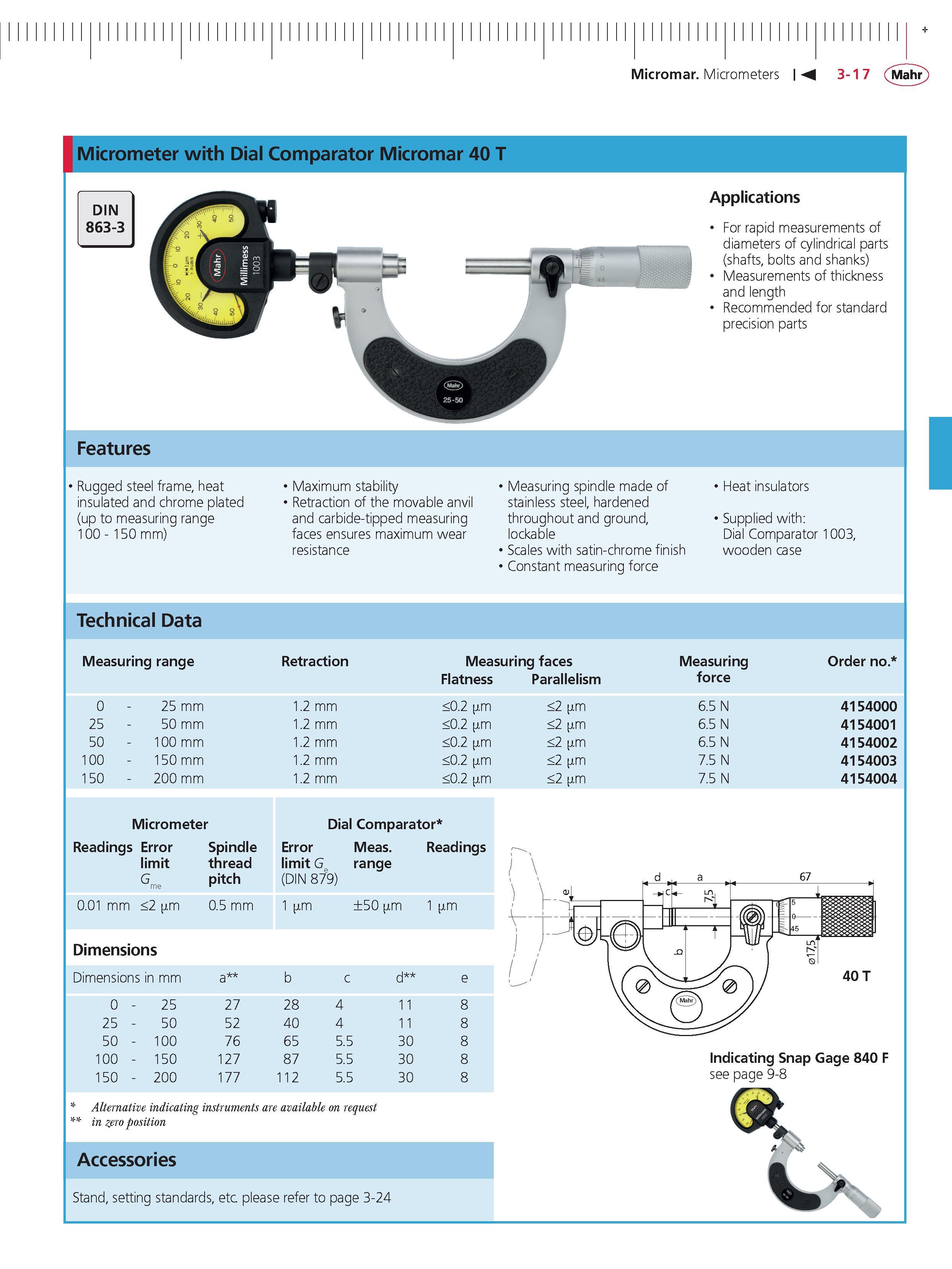

Micromar Micrometers M 3-17 Mahr Micrometer with Dial Comparator Micromar 40 T Applications For rapid measurements of diameters of cylindrical parts (shafts bolts and shanks) Measurements of thickness and length Recommended for standard precision parts Features Rugged steel frame heat insulated and chrome plated (up to measuring range 100 - 150 mm) Maximum stability Retraction of the movable anvil and carbide-tipped measuring faces ensures maximum wear resistance Measuring spindle made of stainless steel hardened throughout and ground lockable Scales with satin-chrome finish Constant measuring force Heat insulators Supplied with Dial Comparator 1003 wooden case Technical Data Measuring range Retraction Measuring faces Flatness Parallelism Measuring force order no. 0- 25 mm 1.2 mm 0.2 m 2 m 6.5 N 4154000 25 - 50 mm 1.2 mm 0.2 m 2 m 6.5 N 4154001 50 - 100 mm 1.2 mm 0.2 m 2 m 6.5 N 4154002 100 - 150 mm 1.2 mm 0.2 m 2 m 7.5 N 4154003 150 - 200 mm 1.2 mm 0.2 m 2 m 7.5 N 4154004 Micrometer Dial Comparator Readings Error limit Spindle thread pitch Error limit G (DIN 879) Meas. range Readings 0.01 mm 2 m 0.5 mm Dimensions Dimensions in mm indicating Snap Gage 840 F see page 9-8 Alternative indicating instruments are available on request in zero position Accessories Stand setting standards etc. please refer to page 3-24
